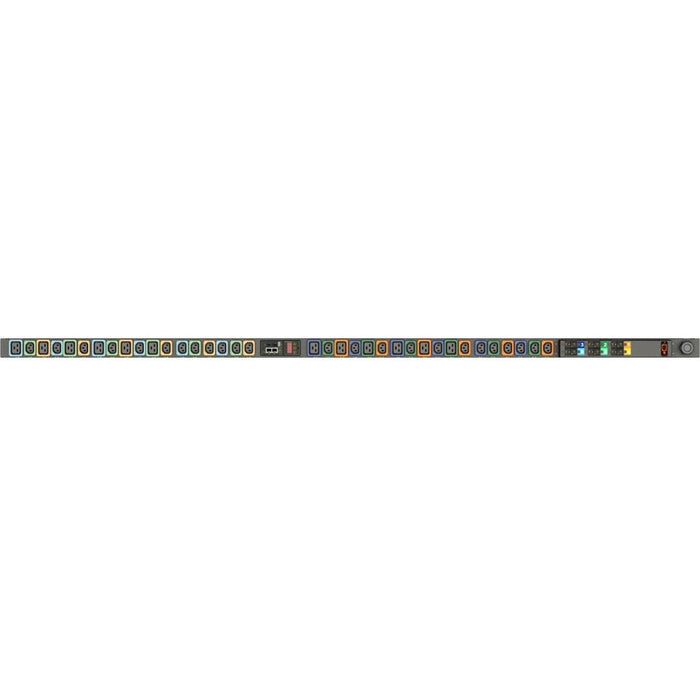

Vertiv Geist NS30034L 36-Outlets Switched Rack PDU, 30A 3-Phase, C13/C19, L22-30P
The Vertiv Geist NS30034L is a switched rack PDU offering advanced power distribution and monitoring for high-density data center environments. With 36 outlets—24 x C13 and 12 x C19 locking receptacles—and support for 3-phase power (230V/415V AC), it ensures flexible and secure connections. The unit features remote IP-based monitoring and outlet-level control, empowering users to manage power consumption and environmental data in real time via the Geist Mobile App and Visible Light Communication (VLC).
The upgradeable hot-swap Interchangeable Monitoring Device (IMD) allows future-proof expansion without downtime, while full support for protocols like SNMP, SSH, and HTTPS ensures robust network integration. Built in a vertical 0U rack-mountable form factor with a durable aluminum body, the NS30034L is ideal for modern IT infrastructures.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Geist |
| Part Number | NS30034L |
| Model | MNS3EGW1-36PNB3-3TL56A0A10-S-A |
| Product Type | Switched Rack PDU |
| Input Plug Type | NEMA L22-30P |
| Input Voltage | 230V AC / 415V AC |
| Input Voltage Range | 200–240V AC / 346–415V AC |
| Input Current | 30A |
| Output Voltage | 230V AC |
| Power Capacity | 16.60 kW |
| Receptacles | 24 x U-Lock IEC 60320 C13, 12 x C19 |
| Network Management | DHCP, HTTP/HTTPS, SNMP v1/v2c/v3, etc. |
| Network Port | RJ-45 |
| Remote Switching | Yes |
| Mounting Type | Vertical, Rack-Mountable (0U) |
| Dimensions (W x D x L) | 2" x 2.6" x 72" |
| Weight (Shipping) | 22 lbs |
| Package Includes | PDU Unit, Vertical Mounting Bracket Kit |
| Environmentally Friendly | Yes |
| Warranty | 5-Year Limited Warranty |
| Country of Origin | United States |
