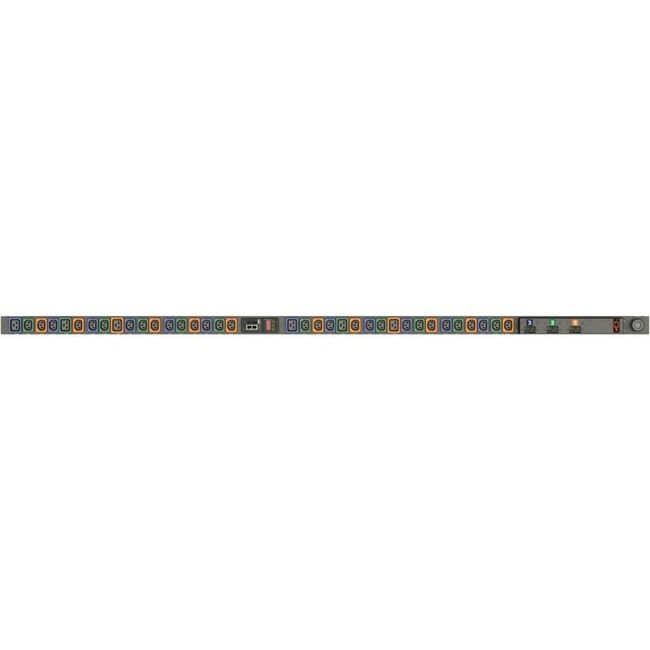

Vertiv Geist NS30017L 36-Outlets Switched PDU, 208V, L21-30P, 0U Vertical
by Vertiv
The Vertiv Geist NS30017L is a switched rack PDU offering intelligent outlet-level monitoring and control for data center power distribution. Designed for high-density environments, this 0U vertical unit supports both 120V and 230V input, delivering up to 8.6 kW of power across 36 outlets (30 x C13, 6 x C19) with secure U-Lock receptacles. Advanced features include remote outlet switching, real-time environmental and power monitoring, and Visible Light Communication (VLC) compatibility via the Geist Mobile App. Its hot-swappable Interchangeable Monitoring Device (IMD) enables future-proof upgrades without disrupting operations.
| Specification | Details |
|---|---|
| Brand | Geist (by Vertiv) |
| Model | MNS3EGW1-36PT68-3TL21A0A10-S-A |
| Part Number | NS30017L |
| PDU Type | Switched |
| Phase | Three Phase |
| Input Plug | NEMA L21-30P |
| Input Voltage | 120V AC / 230V AC |
| Output Voltage | 208V AC |
| Power Capacity | 8600 Watts |
| Input Current | 30 Amps |
| Outlets | 30 x IEC 60320 C13 (U-Lock), 6 x C19 (U-Lock) |
| Network Interface | RJ-45 |
| Remote Switching | Yes |
| Communication Protocols | SNMP (v1/v2c/v3), SSH, HTTP/S, Syslog, etc. |
| Mounting | Vertical, Rack-mountable (0U) |
| Dimensions (WxDxL) | 2" x 2.6" x 72" |
| Weight (Shipping) | 22 lbs |
| Environmentally Friendly | Yes |
| Country of Origin | United States |
| Warranty | 3-Year Limited Warranty |
| Package Contents | PDU Unit, Vertical Mounting Bracket Kit |
