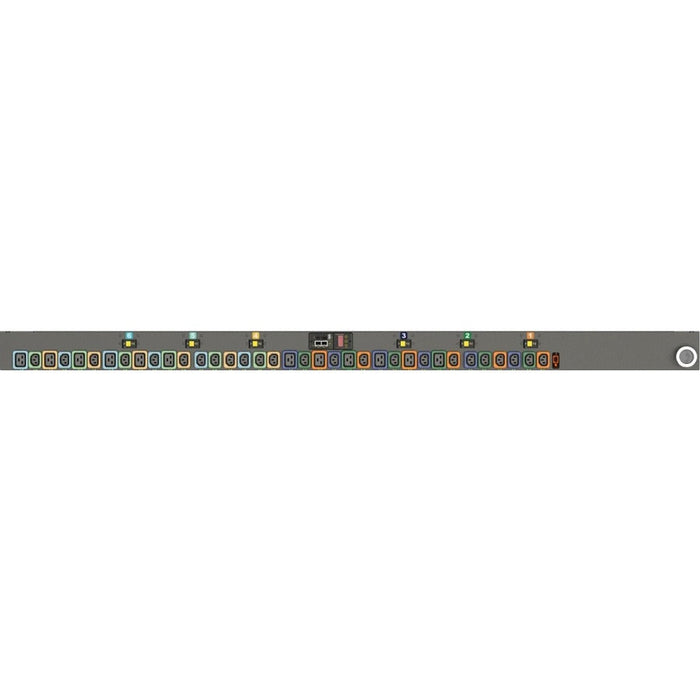

Vertiv Geist NS30045L Switched Rack PDU, 36 Outlets (C13/C19), 14.4kW, 0U
by Vertiv
The Vertiv Geist NS30045L is a switched rack PDU designed for advanced power distribution and remote management. With 36 locking IEC outlets (24 x C13, 12 x C19), this 0U vertical PDU provides high-density power with 14.4kW output and 230V AC input. Featuring IP-based monitoring and Visible Light Communication (VLC), users can easily access real-time metrics via the Geist Mobile App. The upgradeable Interchangeable Monitoring Device (IMD) ensures long-term adaptability, while remote outlet switching, overcurrent protection, and rich network protocols (SNMP, HTTPS, SSH, and more) make it ideal for modern data centers. Factory-fresh and backed by a 5-year Vertiv warranty.
| Category | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Geist |
| Model | MNS3EHB1-36PNB8-5CS15A0A10-S-A |
| Part Number | NS30045L |
| Product Type | Switched Rack PDU |
| Input Plug Type | 3P+E CA |
| Input Voltage | 230V AC (200V–240V range) |
| Input Current | 50 A |
| Output Voltage | 208V AC |
| Power Capacity | 14.40 kW |
| Outlet Type | 24 x U-Lock IEC C13, 12 x U-Lock IEC C19 |
| Mounting Type | Rack-mountable (Vertical) |
| Rack Height | 0U |
| Dimensions (W x D x L) | 3.7" x 2.6" x 66.3" |
| Network Ports | RJ-45 (Yes) |
| Management Protocols | DHCP, HTTP/HTTPS, IPv4/IPv6, LDAP, NTP, RSTP, SNMP, Syslog |
| Remote Switching | Supported |
| Monitoring Tech | Visible Light Communication (VLC) via Geist Mobile App |
| Warranty | 5-Year Limited |
| Weight | 24 lbs |
| Environmentally Friendly | Yes |
| Included Accessories | Vertical Mounting Bracket Kit |
| Country of Origin | United States |
| Condition | New and Factory Fresh |
