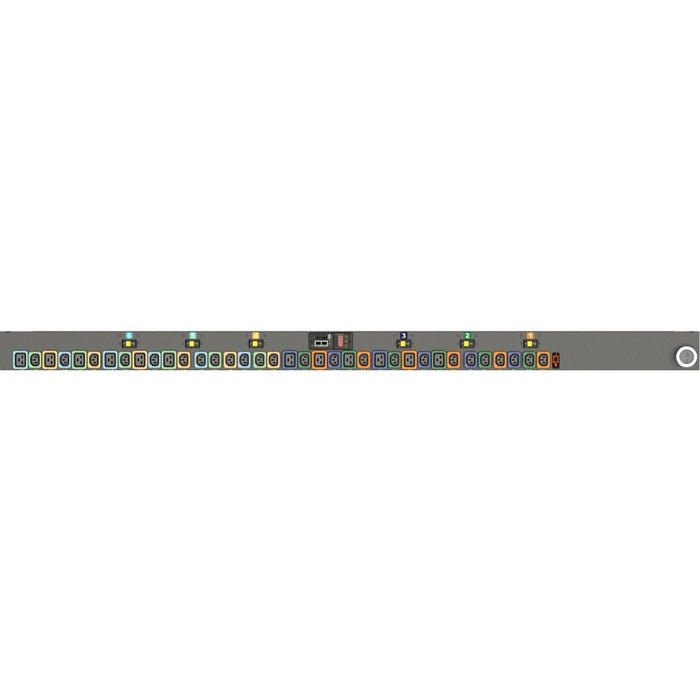

Vertiv Geist NS30051L 36-Outlets Switched Rack PDU, 17.2kW, IP44, 0U
by Vertiv
The Vertiv Geist NS30051L is a high-performance switched rack PDU designed for enterprise data centers and critical environments. Equipped with 36 outlets (24 x C13, 12 x C19) and a 60A 3P+E IP44 plug, this unit supports remote outlet-level switching and real-time monitoring via IP-based protocols. With visible light communication (VLC) technology and support for the Geist Upgradeable platform, this PDU ensures scalability and efficient power management. Mounts vertically (0U) for space efficiency and supports a wide range of network protocols including SNMP, SSH, and HTTPS.
| Category | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Geist |
| Part Number | NS30051L |
| Product Model | MNS3EHB1-36PNB8-6PS15B0A10-S-A |
| Product Type | Switched Rack PDU |
| Phase | Three Phase |
| Input Plug Type | 3P+E (IP44) |
| Input Voltage | 230 V AC (Range: 200 - 240 V AC) |
| Output Voltage | 208 V AC |
| Power Rating | 17.2 kW |
| Input Current | 60 A |
| Outlets | 24 x U-Lock IEC 60320 C13, 12 x U-Lock IEC 60320 C19 |
| Protection | Overcurrent Protection, Double Pole |
| Remote Switching | Yes |
| Networking | RJ-45 Port |
| Protocols Supported | SNMP (v1/v2c/v3), SSH, HTTPS, HTTP, DHCP, LDAP, Syslog, etc. |
| Mount Type | Vertical Rack-Mountable |
| Rack Height | 0U |
| Dimensions (LxWxD) | 66.3" x 3.7" x 2.6" |
| Weight | 24 lbs. |
| Warranty | 5-Year Limited |
| Environmental Compliance | Yes |
| Included Accessories | Mounting Bracket Kit |
| Country of Origin | United States |
