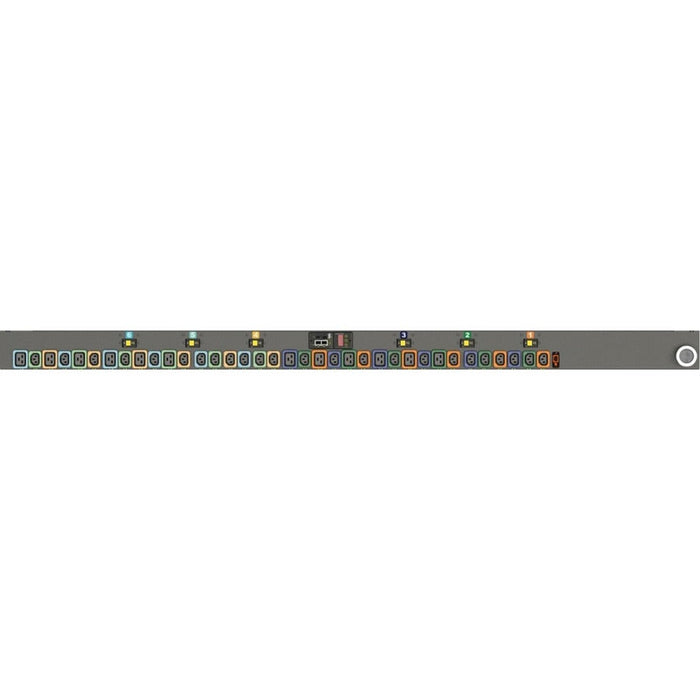

Vertiv Geist MNS3EHB1-36PNB8-6PS15D0A10-S-A 36-Outlets Switched Rack PDU
The Vertiv Geist NS30052L is a high-performance 36-outlet switched rack PDU engineered for advanced power distribution and intelligent monitoring in high-density IT environments. Designed for vertical (0U) rack installations, this unit features 24 U-Lock IEC C13 and 12 U-Lock IEC C19 receptacles, with a robust 3P+E IP67 input plug for secure power delivery.
Leveraging Visible Light Communication (VLC) via the Geist Mobile App, the NS30052L allows real-time access to granular power usage and environmental data, down to the circuit and phase level. The hot-swappable IMD module ensures seamless upgrades, while built-in network connectivity supports secure remote outlet switching and comprehensive protocol compatibility, including SNMP, HTTPS, and SSH.
Perfect for enterprise data centers seeking reliability, flexibility, and control, this unit is backed by a 5-year limited Vertiv warranty and built to meet demanding operational needs.
| Specification | Details |
|---|---|
| Brand | Vertiv Geist |
| Model | MNS3EHB1-36PNB8-6PS15D0A10-S-A |
| Part Number | NS30052L |
| Product Type | Switched Rack PDU |
| Mounting Type | Vertical, 0U, Rack-mountable |
| Input Plug | 1 x 3P+E (IP67) |
| Input Voltage | 230V AC (Range: 200–240V AC) |
| Output Voltage | 208V AC |
| Input Current | 60A |
| Power Capacity | 17.20 kW |
| Receptacles | 24 x Locking IEC C13, 12 x Locking IEC C19 |
| Network Port | 1 x RJ-45 |
| Management Protocols | SNMP (v1/v2c/v3), HTTP/S, SSH, Syslog, DHCP, etc. |
| Remote Switching | Yes |
| Protection | Overcurrent Protection |
| Communication | Visible Light Communication (VLC) via LED display |
| Dimensions (WxDxL) | 3.7" x 2.6" x 66.3" |
| Warranty | 5-Year Limited |
| Weight (Shipping) | 24 lbs. |
| Condition | New and Factory Fresh |
| Package Includes | PDU, Vertical Mounting Bracket Kit |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
