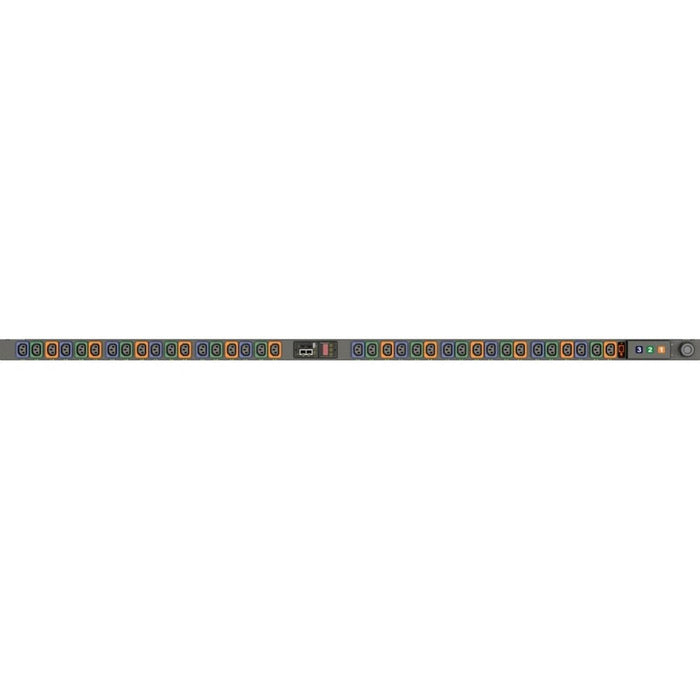

Vertiv Geist NU30008L 36-Outlets Switched Rack PDU – MNU3EGB0-36L133-2PS56B0A10-S-A
by Vertiv
The Vertiv Geist NU30008L is a Switched Rack PDU designed for modern data centers requiring high-efficiency power distribution and advanced control. It offers 36 x U-Lock IEC C13 outlets and features real-time outlet-level monitoring, remote switching, and network management through protocols like SNMP, HTTP/S, and SSH.
This vertical 0U PDU uses Visible Light Communication (VLC) to transmit detailed power usage data to your handheld device via the Geist Mobile App. With a 3P+N+E (IP44) plug and support for 230/415V AC, it ensures scalable power delivery in high-density environments. The unit also features Geist’s Upgradeable hot-swap IMD module for future-proof monitoring upgrades.
| Specification | Details |
|---|---|
| Brand | Vertiv Geist |
| Model | MNU3EGB0-36L133-2PS56B0A10-S-A |
| Part Number | NU30008L |
| PDU Type | Switched |
| Plug Type | 3P+N+E (IP44) |
| Receptacle Type | 36 x U-Lock IEC 60320 C13 |
| Voltage Input | 230 V AC / 415 V AC |
| Voltage Range | 200–240 V AC / 346–415 V AC |
| Output Voltage | 230 V AC |
| Power Rating | 11 kW |
| Input Current | 20 A |
| Mount Type | Vertical, Rack-mountable (0U) |
| Dimensions (W x D x L) | 2" x 2.6" x 66.3" |
| Network Interface | RJ-45 (IPv4/IPv6, SNMP v1/v2c/v3, SSH, HTTP/S, etc.) |
| Remote Outlet Switching | Yes |
| Compliance Features | Overcurrent Protection, IP44 |
| Management Protocols | SNMP, HTTP/S, SSH, Syslog, NTP, DHCP, LDAP, RSTP |
| VLC Monitoring | Yes – via Geist Mobile App |
| Hot-Swap Upgradeable IMD | Yes |
| Environmentally Friendly | Yes |
| Package Includes | PDU Unit, Vertical Mounting Bracket Kit |
| Warranty | 5-Year Limited Warranty |
| Condition | New and Factory Fresh |
| Shipping Weight | 18 lbs |
| Country of Origin | United States |
