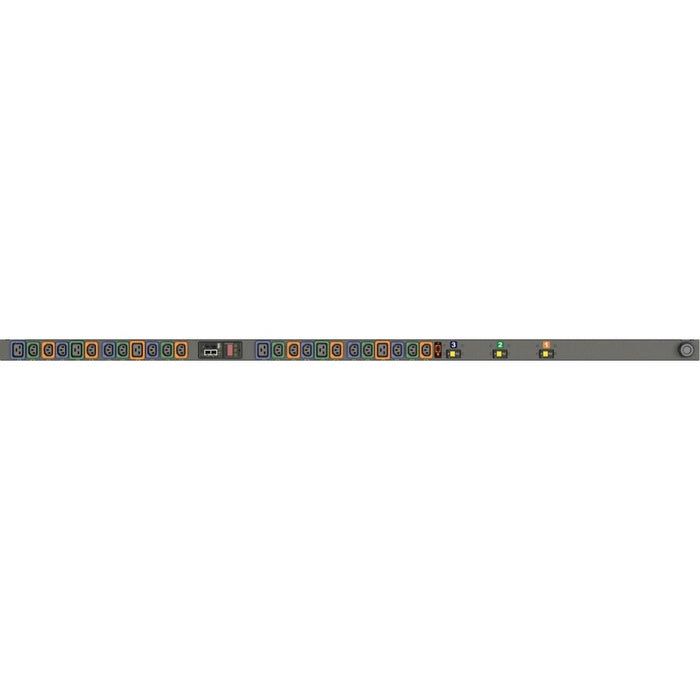

Vertiv Geist NU30016L Switched 24-Outlets Vertical Rack PDU, 30A, 208V
The Vertiv Geist NU30016L is a switched, rack-mountable power distribution unit (PDU) designed for maximum visibility, remote control, and efficiency. Featuring 24 U-Lock IEC outlets (18 x C13 and 6 x C19), it provides secure connections and reliable three-phase power distribution. With integrated IP-based monitoring, it supports advanced network protocols including SNMP, HTTPS, and SSH.
Equipped with Visible Light Communication (VLC) technology, this PDU allows real-time power data transmission via the Geist Mobile App. The hot-swappable Interchangeable Monitoring Device (IMD) ensures future upgradeability without downtime, making it a scalable solution for modern data centers. Built for vertical 0U rack mounting, it also includes a 5-year limited warranty.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand | Geist |
| Model | MNU3EGB1-24PH68-3TL21A0A10-S-A |
| Part Number | NU30016L |
| Product Type | Switched PDU |
| Power Input | 120V AC / 230V AC |
| Power Output | 208V AC |
| Max Input Current | 30A |
| Power Rating | 8600W |
| Plug Type | NEMA L21-30P |
| Receptacle Count & Type | 18 x IEC 60320 C13 (U-Lock), 6 x IEC C19 (U-Lock) |
| Phase | Three Phase |
| Mounting Orientation | Vertical |
| Rack Units (RU) | 0U |
| Mounting Type | Rack-mountable |
| Dimensions (W x D x L) | 2" x 2.6" x 66.3" |
| Network Interface | 1 x RJ-45 |
| Remote Management Protocols | SNMP v1/v2c/v3, SSH, HTTPS, Syslog, NTP, etc. |
| Outlet Switching | Yes |
| Environmental Monitoring | Supported |
| Compliance | Environmentally Friendly |
| Warranty | 5-Year Limited |
| Package Includes | PDU, Vertical Mounting Bracket Kit |
| Country of Origin | United States |
