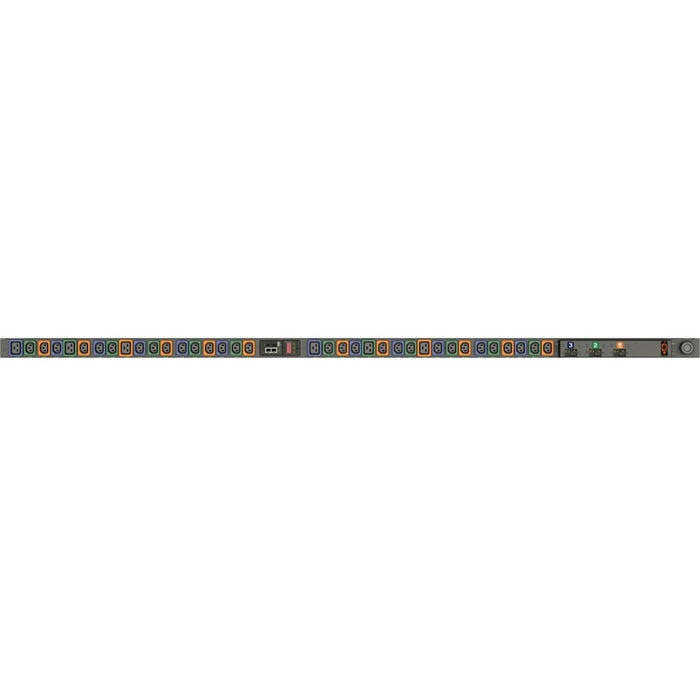

Vertiv Geist NU30017L Switched 36-Outlets Vertical Rack PDU – 208V, 30A, L21-30P
by Vertiv
The Vertiv Geist NU30017L Switched PDU delivers advanced outlet-level control and real-time monitoring of power consumption and environmental conditions. Featuring 36 outlets (30 x IEC C13 and 6 x IEC C19) with U-Lock functionality, this 0U vertical PDU is ideal for data center rack deployments. It includes network connectivity via RJ-45 and supports modern protocols such as SNMPv3, SSH, and HTTPS. Built with Geist’s upgradeable hot-swap technology, the Interchangeable Monitoring Device (IMD) can be easily replaced to keep pace with evolving monitoring requirements. Designed for flexible rack mounting with robust NEMA L21-30P input and a total output capacity of 8600W at 208V AC.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand | Geist |
| Part Number | NU30017L |
| Model | MNU3EGW1-36PT68-3TL21A0A10-S-A |
| Product Type | Switched Rack PDU |
| Form Factor | 0U Vertical, Rack-mountable |
| Input Plug Type | NEMA L21-30P |
| Input Voltage | 120V AC, 230V AC |
| Output Voltage | 208V AC |
| Input Current | 30A |
| Power Rating | 8600W |
| Receptacles | 30 x U-Lock IEC 60320 C13, 6 x U-Lock IEC C19 |
| Network Port | RJ-45 |
| Network Protocols | DHCP, HTTP/HTTPS, SNMP (v1/v2c/v3), Syslog, SSH, NTP, RSTP, LDAP, IPv4, IPv6 |
| Remote Switching | Yes |
| Dimensions (W x D x L) | 2" x 2.6" x 72" |
| Mount Kit Included | Yes – Vertical Mounting Bracket Kit |
| Environment Friendly | Yes |
| Country of Origin | United States |
| Warranty | 5-Year Limited |
| Shipping Weight | 22 lbs |
| Condition | New and Factory Fresh |
