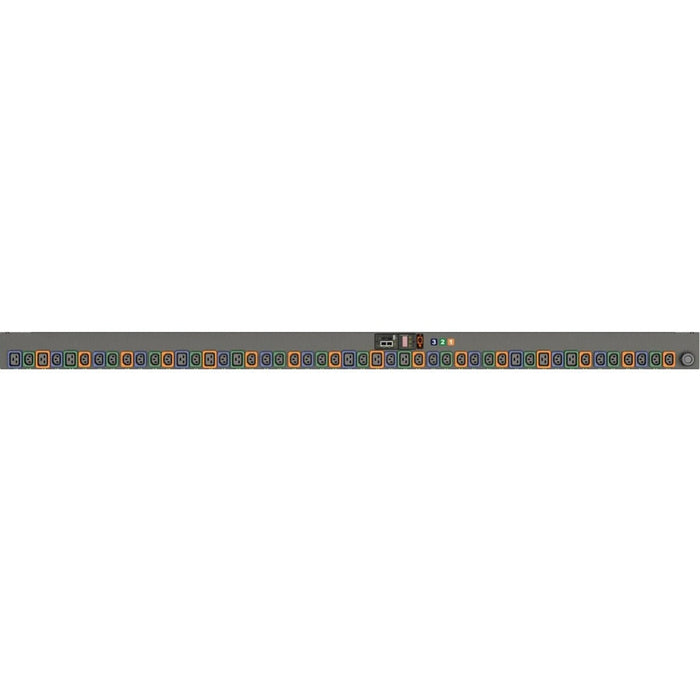

Vertiv Geist NU30014L Switched 48-Outlets Rack PDU (0U, Vertical, IP44)
by Vertiv
The Vertiv Geist NU30014L is a high-performance switched rack PDU engineered for advanced power distribution and remote management. Featuring 48 total outlets—36 x IEC C13 and 12 x IEC C19 with U-Lock for secure connections—this PDU supports IP-based monitoring, remote outlet switching, and real-time environmental sensing. Its Visible Light Communication (VLC) technology enables data transmission to mobile devices via the Geist Mobile App, giving instant visibility into power usage by outlet, circuit, or phase. With hot-swappable upgradeability, 3-phase power support (3P+N+E, IP44), and robust network protocol compatibility, this unit delivers enterprise-grade reliability for modern data centers.
| Category | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand | Geist |
| Model | MNU3EHW0-48PZB3-2PS56B0A10-S-A |
| Part Number | NU30014L |
| Product Type | Switched Rack PDU |
| Outlet Configuration | 36 x IEC 60320 C13 (U-Lock), 12 x IEC 60320 C19 (U-Lock) |
| Total Outlets | 48 |
| Input Plug Type | 3P+N+E (IP44) |
| Input Voltage | 230V AC / 415V AC |
| Voltage Range | 200–240V AC / 346–415V AC |
| Output Voltage | 230V AC |
| Power Capacity | 11 kW |
| Input Current | 20A |
| Network Connection | RJ-45, DHCP, SNMP, HTTP/HTTPS, SSH, IPv4/IPv6 |
| Remote Switching | Yes |
| Mounting | 0U, Vertical, Rack-mountable |
| Dimensions (L x W x D) | 70" x 3.7" x 2.6" |
| Warranty | 5-Year Limited Warranty |
| Environment Friendly | Yes |
| Shipping Weight | 18 lbs |
| Package Includes | PDU, Vertical Mounting Bracket Kit |
| Country of Origin | United States |
