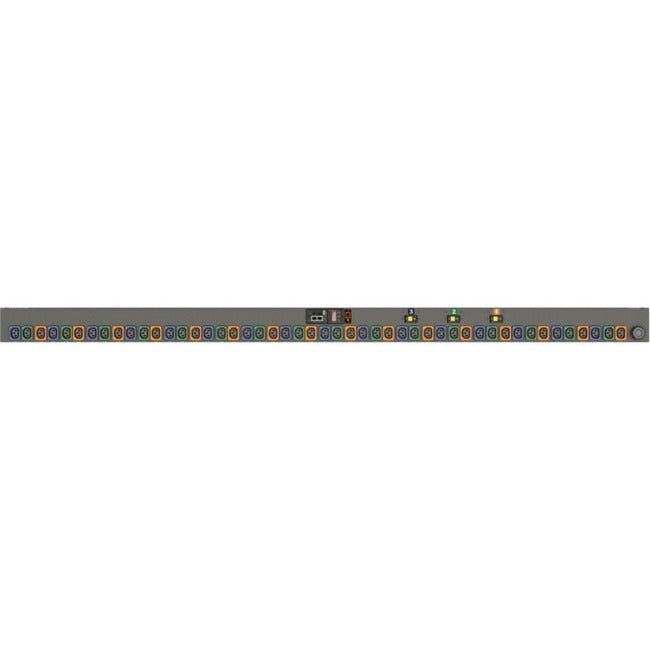

Vertiv Geist MNU3EHW1-48L138-3TL21A0A10-S-A 48-Outlets Switched PDU
by Vertiv
The Vertiv Geist NU30019L switched rack PDU delivers reliable power distribution with advanced outlet-level control and real-time power monitoring. Featuring 48 U-Lock IEC 60320 C13 outlets and a NEMA L21-30P input plug, this vertical 0U PDU is ideal for dense rack configurations. With built-in Visible Light Communication (VLC) and IP-based monitoring via the Geist Mobile App, it transmits power usage data directly to your handheld device. The upgradeable hot-swap Interchangeable Monitoring Device (IMD) module ensures your investment is future-ready.
| Category | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Geist |
| Part Number | NU30019L |
| Model | MNU3EHW1-48L138-3TL21A0A10-S-A |
| PDU Type | Switched |
| Phase | Three Phase |
| Input Plug Type | NEMA L21-30P |
| Input Voltage | 120 V AC / 230 V AC |
| Input Voltage Range | 120–208 V AC |
| Input Current | 30 A |
| Power Rating | 8600 W |
| Output Voltage | 208 V AC |
| Outlets | 48 x U-Lock IEC 60320 C13 |
| Protection | Overcurrent Protection |
| Network Interface | RJ-45 |
| Management Protocols | DHCP, HTTP/S, SNMP v1/v2c/v3, Syslog, SSH, etc. |
| Mount Type | Rack-mountable (Vertical, 0U) |
| Dimensions | 70" L x 3.7" W x 2.6" D |
| Weight (Shipping) | 22 lbs |
| Warranty | 5-Year Limited Warranty |
| Included Accessories | Mounting Bracket Kit |
| Environmentally Friendly | Yes |
| Country of Origin | United States |
| Product Condition | New and Factory Fresh |
