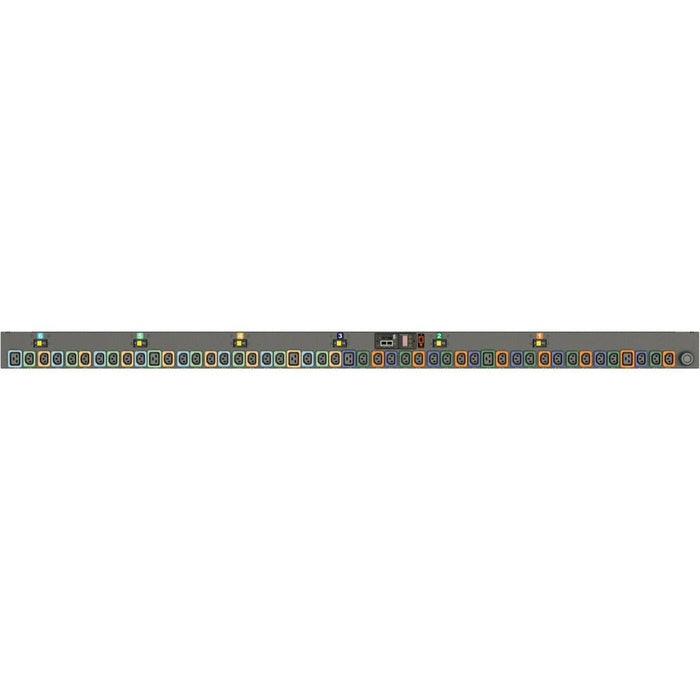

Vertiv Geist NU30038L 48-Outlets Switched PDU, 3P+N+E, Vertical, 0U
by Vertiv
The Vertiv Geist NU30038L is a switched rack PDU offering 48 outlets with IP-based monitoring and remote outlet-level control. Designed for high-performance data centers, it features 42 C13 and 6 C19 U-Lock receptacles, overcurrent protection, and a 3P+N+E plug (IP44). With support for multiple network protocols (SNMP, DHCP, HTTPS, SSH), this 0U vertical unit enables advanced power management. Powered by Geist Upgradeable hot-swap tech, users can easily upgrade the IMD module for future needs. It supports 230V/415V AC input with a max load of 16.60kW, making it a reliable choice for mission-critical IT environments.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Part Number | NU30038L |
| Brand Name | Geist |
| Product Model | MNU3EHW1-48MI13-3PS56B0A10-S-A |
| PDU Type | Switched |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Mount Orientation | Vertical |
| Outlets | 42 x U-Lock IEC 60320 C13, 6 x U-Lock IEC 60320 C19 |
| Input Plug Type | 3P+N+E (IP44) |
| Input Voltage | 230V AC / 415V AC |
| Input Voltage Range | 200–240V AC / 346–415V AC |
| Output Voltage | 230V AC |
| Power Capacity | 16.60 kW |
| Input Current | 30A |
| Network Port | RJ-45 |
| Protocols Supported | SNMP v1/v2c/v3, DHCP, HTTP/S, SSH, LDAP, NTP, RSTP, SMTP |
| Remote Outlet Switching | Yes |
| Protection Type | Overcurrent Protection |
| Dimensions (W x D x L) | 3.7" x 2.6" x 70" |
| Weight (Shipping) | 22 lbs |
| Environmental Compliance | Yes |
| Country of Origin | United States |
| Warranty | 5-Year Limited |
| Package Includes | PDU, Vertical Mounting Bracket Kit |
