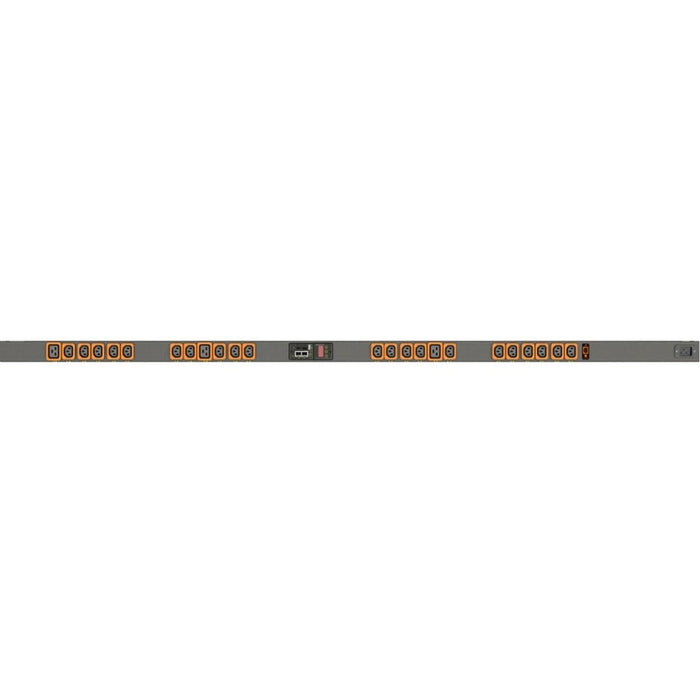

Vertiv Geist UU30002L Switched Rack PDU, 24-Outlets, 0U, C20 Plug
The Vertiv Geist UU30002L is a switched rack power distribution unit (rPDU) engineered for precision control and intelligent power management. Featuring 24 outlets—including 21 x U-Lock IEC C13 and 3 x U-Lock IEC C19—this vertical 0U PDU supports secure connections and flexible deployment in rack environments.
With support for IP-based monitoring and outlet-level switching, the UU30002L allows you to track real-time power metrics and environmental conditions using the Geist Mobile App. Visible Light Communication (VLC) technology enables fast data transmission via the LED display, while Geist Upgradeable hot-swap monitoring ensures future-ready expandability without downtime.
Ideal for mission-critical IT applications, this factory-fresh unit delivers dependable power distribution with advanced management protocols like SNMP, HTTPS, IPv6, and JSON API.
| Specification | Details |
|---|---|
| Brand | Geist (Vertiv) |
| Model | MUU3EGB0-24PK37-2C20A9A00-S |
| Part Number | UU30002L |
| PDU Type | Switched |
| Plug Type | IEC 60320 C20 |
| Receptacle Count | 21 x U-Lock IEC C13, 3 x U-Lock IEC C19 |
| Input Voltage | 120V AC / 230V AC |
| Output Voltage Range | 100V - 240V AC |
| Power Capacity | 3600W |
| Input Current | 20A |
| Network Interface | RJ-45 (Ethernet) |
| Management Protocols | SNMP v1/v2c/v3, HTTP/HTTPS, Syslog, JSON API |
| Form Factor | 0U Vertical Rack-Mount |
| Dimensions (H x W x D) | 66.3" x 2" x 2.6" |
| Weight | 18 lbs |
| Warranty | 5-Year Limited Warranty |
| Mount Kit Included | Yes – Vertical Mounting Bracket Kit |
| Environmentally Friendly | Yes |
| Country of Origin | United States |
