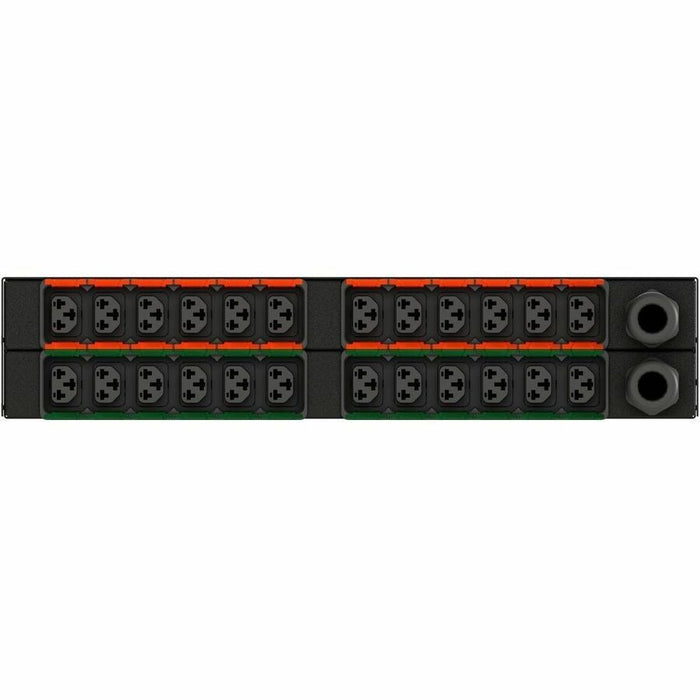

Vertiv Geist rPDU VA4G9200 24-Outlets Auto Transfer Switch PDU, 2U Rack-Mount, Monitored, 230V, 10 ft Cord
The Vertiv Geist rPDU VA4G9200 is a high-performance Auto Transfer Switch (ATS) Power Distribution Unit designed for mission-critical environments. Featuring 24 x Combination C13/C19 outlets, overcurrent protection, and remote monitoring, it delivers redundant power to single-corded devices with seamless failover in 4–8 milliseconds. Engineered for rack-mount 2U horizontal deployment, it operates at 230V AC and supports a 7300W load capacity via a 1P+N+E (IP44) plug.
This intelligent rPDU offers environmental monitoring compatibility, fault-tolerant daisy chaining, and support for major network protocols (SNMP, SSH, RADIUS, Modbus TCP, and more). With 10 ft cord length, rugged black powder-coated finish, and 5-year warranty (with registration), the VA4G9200 ensures scalable, reliable power delivery for today's evolving IT infrastructures.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Geist |
| Series / Model | rPDU / AG03E2R1-24CF13-3PS6PS6B211-D |
| Part Number | VA4G9200 |
| Product Type | Monitored Auto Transfer Switch PDU |
| Rack Height | 2U |
| Mounting Orientation | Horizontal, Rack-mountable |
| Cord Length | 10 ft |
| Color | Black Powder Coat |
| Outlets | 24 x Combination C13/C19 |
| Input Plug Type | 1 x 1P+N+E (IP44) |
| Input Voltage | 230V AC (Range: 200V – 240V AC) |
| Input Frequency | 60 Hz |
| Input Current | 32 A |
| Load Capacity | 7300 W |
| Protection Type | Overcurrent Protection, Single Pole |
| Network Interface | RJ-45 |
| Monitoring Protocols | SNMP v1/v2c/v3, SSH, Modbus TCP, RADIUS, Syslog, JSON, etc. |
| Environmental Monitoring | Compatible with optional sensors |
| Max Operating Temp | 140°F (60°C) |
| Certifications | CE, UKCA, RoHS, IEC 62368-1, EN 55032/55035 |
| Product Dimensions (HxWxD) | 3.4" x 17" x 18" |
| Shipping Weight | 22 lbs |
| Warranty | 5 Years (with registration), otherwise defaults to 3 years |
