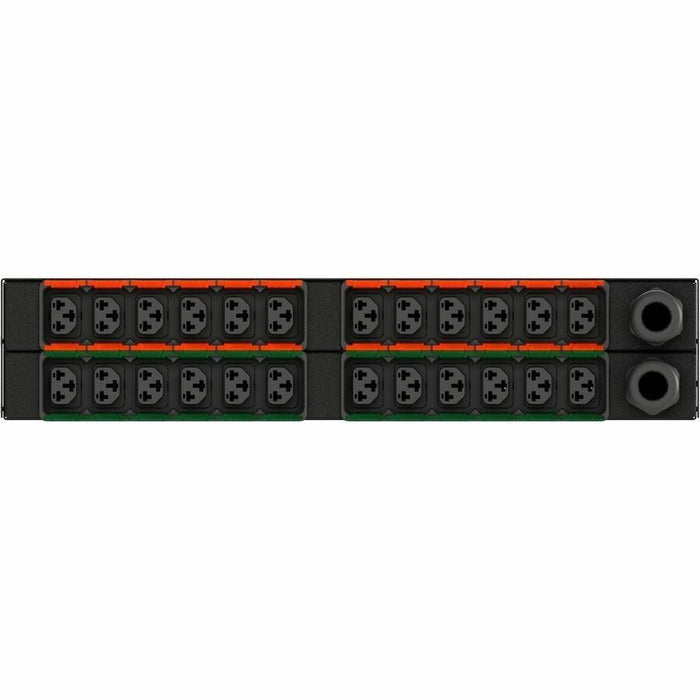

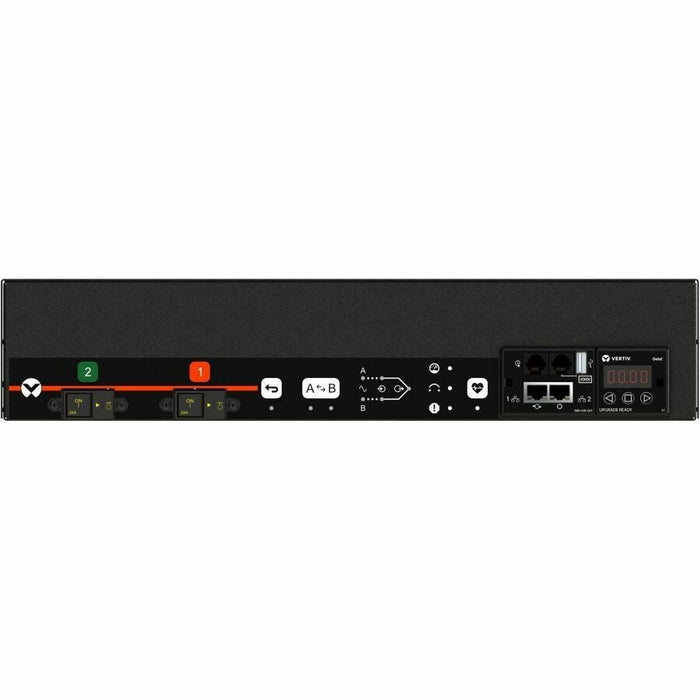

Vertiv Geist rPDU 24-Outlets Auto Transfer Switch (VA4N3200)
Ensure uninterrupted power for mission-critical IT loads with the Vertiv Geist VA4N3200, a 24-outlet monitored rack power distribution unit (rPDU) featuring an automatic transfer switch (ATS) and dual NEMA L6-30P inputs. Designed for redundancy and uptime, the VA4N3200 intelligently switches between power sources within 4–8 milliseconds, ensuring continuous operation for single-corded devices.
This horizontal, rack-mountable PDU includes combination C13/C19 outlets and supports local and remote power monitoring via integrated network protocols like SNMP, HTTPS, Modbus TCP, and more. Its robust metal construction, environmental monitoring capabilities, and TAA compliance make it ideal for enterprise and government data centers seeking reliability, visibility, and compliance.
| Specification | Details |
|---|---|
| Brand | Vertiv Geist |
| Part Number | VA4N3200 |
| Model | AN03E2R1-24CF18-3TL6TL6A011-D |
| Type | Monitored Auto Transfer Switch (ATS) rPDU |
| Outlets | 24 x Combination C13/C19 |
| Plug Type | 2 x NEMA L6-30P |
| Voltage Input | 230V AC (Range: 200–240V AC) |
| Voltage Output | 208V AC |
| Current Rating | 30 Amps |
| Power Capacity | 4900 Watts |
| Frequency | 60 Hz |
| Protection | Overcurrent Protection (Double Pole) |
| Network Interface | RJ-45 |
| Network Protocols | SNMP (v1/v2c/v3), Modbus TCP, JSON API, HTTPS, RADIUS, TACACS+, etc. |
| Mounting | Rack-mountable, Horizontal |
| Cord Length | 10 ft |
| Display | LCD / Touchscreen |
| Material | Black Powder Coat Steel |
| Dimensions (HxWxD) | 3.4" x 17" x 18" |
| Operating Temp | Max 140°F (60°C) |
| Certifications | UL, c-UL 62368-1, FCC Part 15 Class A |
| TAA Compliant | Yes |
| RoHS Compliant | Yes |
| Warranty | 5 Years (with registration within 120 days, otherwise 3 years) |
| Shipping Weight | 19 lbs |
| Country of Origin | United States |
