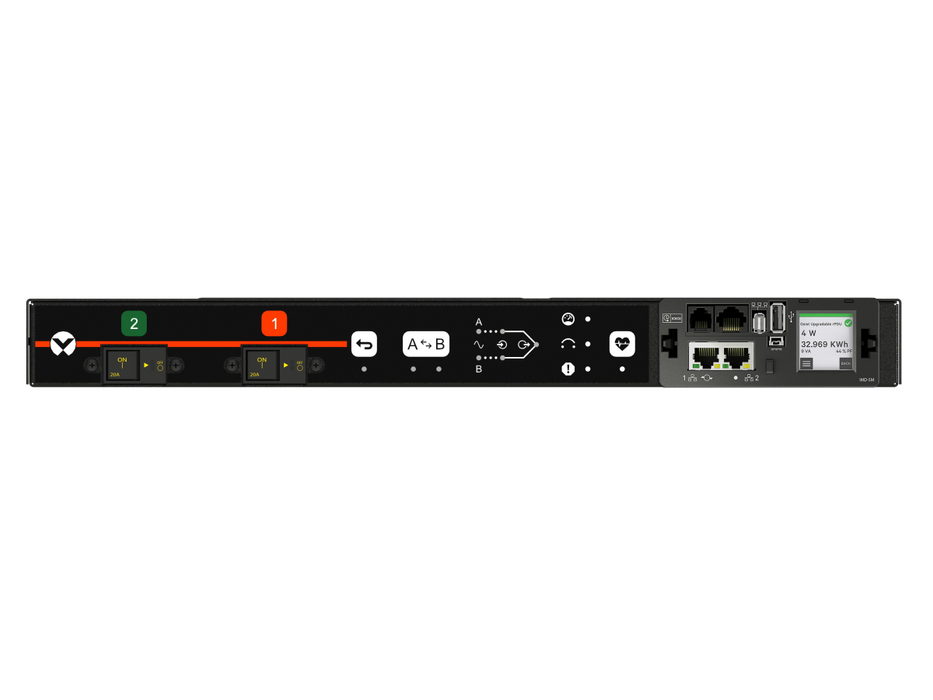

Vertiv VA6N31A0 Rack Transfer Switch, 30A 208V, 6 x C13/C19, Horizontal
by Vertiv
The Vertiv VA6N31A0 PowerIT rPDU Rack Transfer Switch delivers highly reliable power redundancy for single-corded devices. Designed to switch power loads in under 8 milliseconds upon primary power failure, it provides seamless uptime without human intervention. This horizontal 19" rPDU offers monitored outlet-level functionality, advanced input/output power metering, and daisy-chaining for simplified network connectivity. Equipped with 6 combination C13/C19 outlets and dual L6-30P inputs, it supports up to 4.9kW per input, ensuring high availability in mission-critical IT environments.
| Specification | Details |
|---|---|
| Model Number | VA6N31A0 |
| Product Type | Rack Transfer Switch rPDU |
| Power Capacity | 30A, 208V, 4.9kW |
| Input Plug Type | (2) NEMA L6-30P |
| Output Receptacles | 6 x Combination C13/C19 |
| Outlet Configuration | Banks of 6; 4 on Breaker 1, 2 on Breaker 2 |
| Monitoring Capabilities | Input/Outlet Power, Circuit Monitoring, Environmental Monitoring (optional) |
| Transfer Time | <4–8 milliseconds |
| Mounting Style | Horizontal 19" rackmount |
| Power Cable Length | 10 ft / 3 m |
| Network Connectivity | Dual Gigabit Ethernet with Daisy Chaining |
| Protocols Supported | SNMP, HTTP/S, SSH, RADIUS, TACACS+, Modbus TCP, and more |
| Display | Local LCD touchscreen with LED overlay |
| Enclosure Finish | Black powder-coated heavy steel |
| Environmental Sensors Support | Yes, via RJ connector (up to 16 sensors) |
| Dimensions (HxWxD) | 1.72 x 17 x 18 in / 44 x 432 x 457 mm |
| Weight | 12 lbs / 5.44 kg |
| Warranty | 3 years standard, 5 years with registration |
| Certifications | UL/cUL 62368-1, RoHS, FCC Part 15 Class A |
