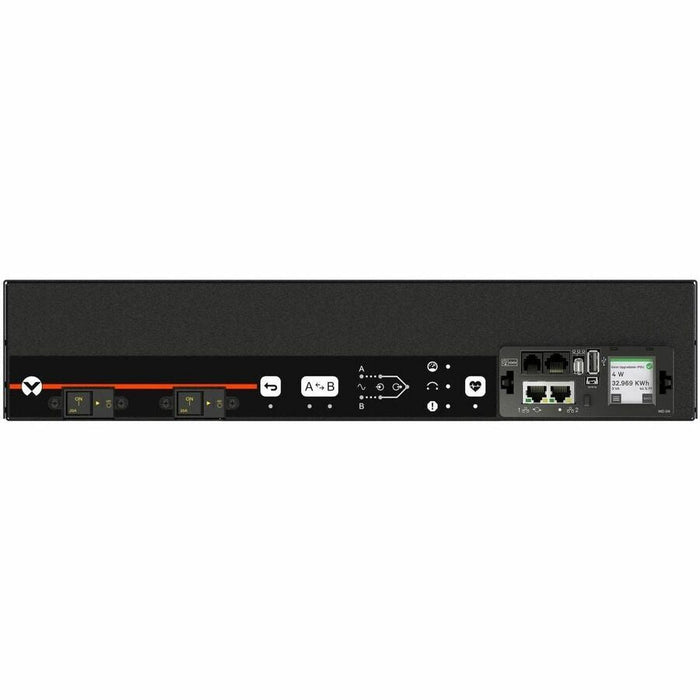

Vertiv VA5N32A0 Rack Transfer Switch, 30A 120V, 2.8kW, 12x5-20R, Horizontal
by Vertiv
The Vertiv VA5N32A0 is a high-performance Rack Transfer Switch (RTS) designed to provide redundant power to single-corded devices. With automatic source switching in under 8 milliseconds, this unit ensures uninterrupted uptime. Equipped with 12 NEMA 5-20R outlets, dual L5-30P inputs, and a 30A capacity, it offers reliable switched outlet-level monitoring and remote power control.
Key features include input power monitoring, individual outlet switching, circuit/breaker current monitoring, and optional environmental sensors. Its daisy-chaining and self-configuration capabilities allow up to 50 devices to operate under one IP, streamlining network management.
| Specification | Details |
|---|---|
| Model | VA5N32A0 |
| Type | Rack Transfer Switch, Switched Monitoring |
| Power Capacity | 30A, 120V, 2.8kW |
| Form Factor | 19in Horizontal Rackmount |

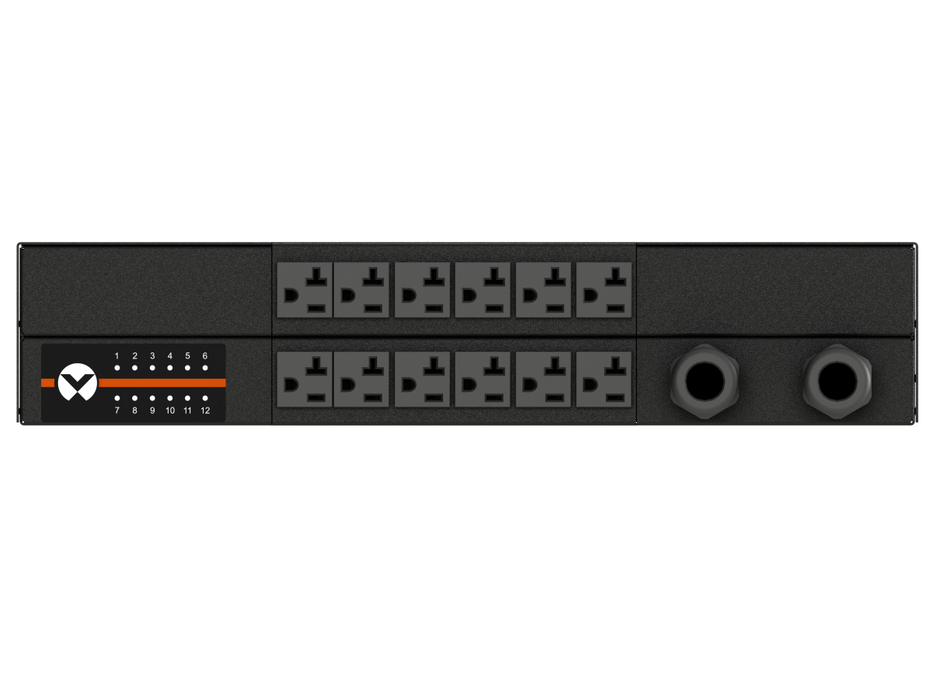

| Outlets | 12x NEMA 5-20R |
| Input Plug Type | (2) NEMA L5-30P |
| Power Cords | Dual 10ft (3m) cords, 10/3 gauge |
| Transfer Time | <4–8 milliseconds |
| Monitoring | Unit level, outlet switching, circuit monitoring |
| Display | LCD touchscreen, front & rear LEDs |
| Remote Monitoring | Yes, Ethernet (Dual 10/100/1000Mbps), SNMP, HTTPS |
| Protocols Supported | SNMP v1/v2c/v3, HTTP/S, DHCP, SSH, RADIUS, Modbus TCP |
| Environmental Sensors | Supports up to 16 via RJ connection |
| Mounting | 2-post & 4-post compatible (24"-37") |
| Chassis Color / Material | Black powder coat / Heavy steel |
| Operating Temp | Max 60°C (140°F) |
| Dimensions (HxWxD) | 3.39in x 17in x 18in (87mm x 432mm x 457mm) |
| Weight | 12 lbs (5.44 kg) |
| Warranty | 5-year (with registration), 3-year standard |
| Certifications | UL, c-UL 62368-1, RoHS, FCC Part 15 Class A |
