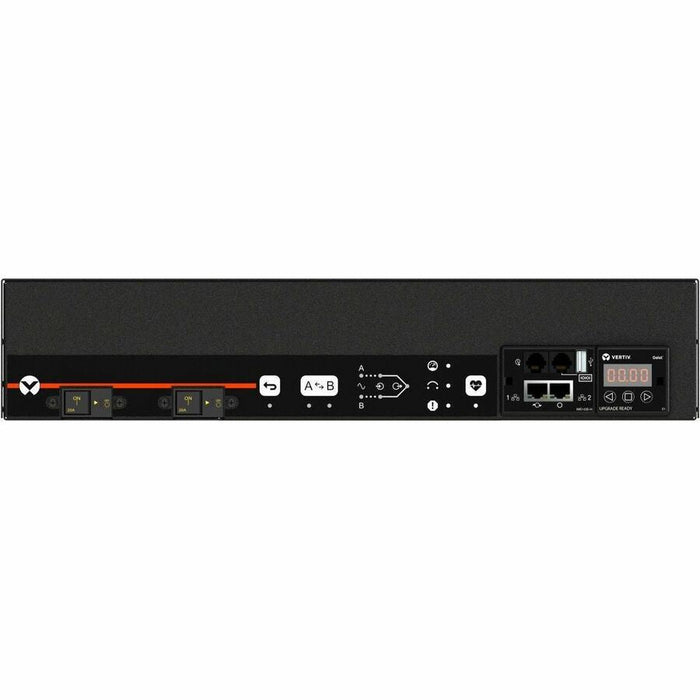

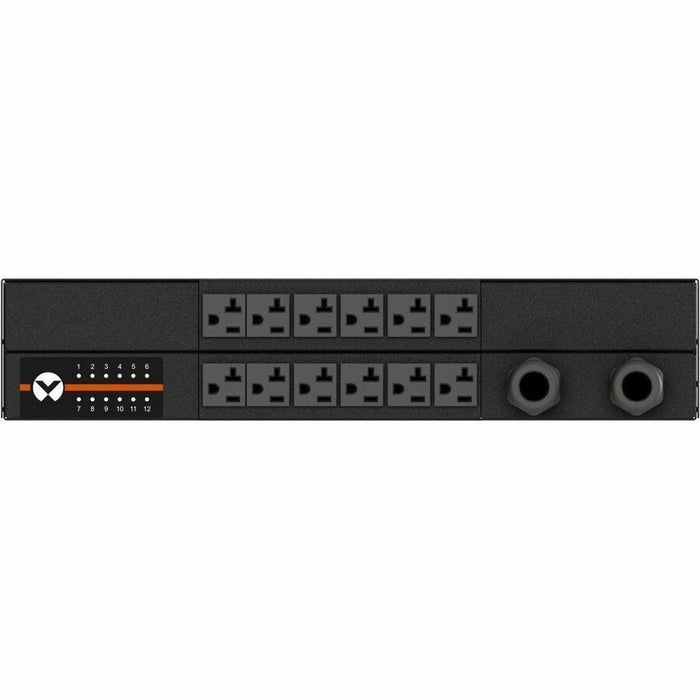

Vertiv Geist rPDU ANU3E2R6-12S203-3TL5TL5A011-D 12-Outlets Rack ATS PDU with Switched Outlets
The Vertiv Geist VA7N3200 is a high-performance Rack Power Distribution Unit (rPDU) equipped with an Auto Transfer Switch (ATS) and switched outlet-level control. Designed to deliver redundant power to single-corded IT equipment, this unit detects primary power loss and transfers load to an alternative source within 4–8 milliseconds—ensuring uninterrupted uptime without human intervention.
This intelligent PDU supports outlet-level remote switching and monitoring, allowing efficient power cycling and real-time insight into device-level power usage. With environmental sensor support, fault-tolerant daisy chaining, and integration with leading management protocols, it delivers comprehensive infrastructure visibility for critical IT environments.
| Category | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Geist |
| Product Series | rPDU |
| Part Number | VA7N3200 |
| Model | ANU3E2R6-12S203-3TL5TL5A011-D |
| Product Type | Auto Transfer Switch, Switched PDU |
| Outlets | 12 x NEMA 5-20R |
| Plug Type | 2 x NEMA L5-30P |
| Cord Length | 10 ft |
| Input Voltage | 100–120V AC |
| Output Voltage | 120V AC |
| Power Capacity | 2800 W |
| Input Current | 30A |
| Frequency | 60 Hz |
| Protection | Overcurrent, Single Pole |
| Mounting | Horizontal, Rack-mountable |
| Network Interface | RJ-45, supports DHCP, SNMP (v1/v2c/v3), HTTPS, SSH, RSTP |
| Management Protocols | Modbus TCP, Syslog, JSON API, TACACS+, LDAP, NTP, etc. |
| Display | Touch Screen & LED |
| Color | Black Powder Coat |
| Dimensions (H x W x D) | 3.4" x 17" x 18" |
| Max Operating Temp. | 140°F (60°C) |
| Certifications | UL, c-UL Listed 62368-1, FCC Part 15 Class A, RoHS |
| Warranty | 5-Year (with registration), defaults to 3 years otherwise |
| Shipping Weight | 12 lbs |
