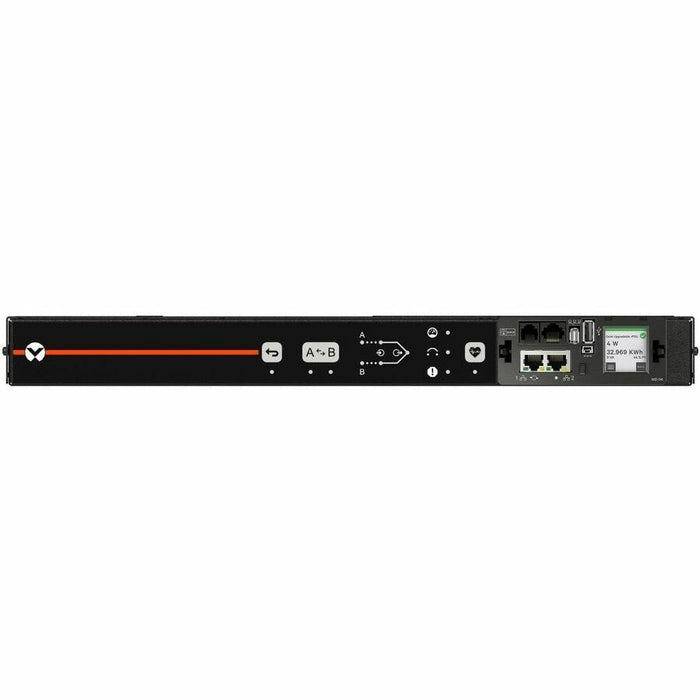

Vertiv PowerIT VA6U11A0 Rack Transfer Switch, Monitored, 10A/15A, 6x C13
by Vertiv
The Vertiv PowerIT™ VA6U11A0 Rack Transfer Switch (RTS) ensures uninterrupted power delivery to single-corded devices by automatically switching between dual power inputs in under 8 milliseconds. Designed for high-reliability environments, this intelligent rPDU features outlet-level monitoring, environmental sensor support, and networked daisy-chaining for up to 50 devices per IP address. With a horizontal 19-inch rackmount design and six locking IEC C13 outlets, the VA6U11A0 combines space-saving efficiency with robust power distribution. Comes with a 3-year standard warranty, extendable to 5 years upon registration.
| Feature | Details |
|---|---|
| Model | VA6U11A0 |
| Function | Rack Transfer Switch with Outlet-Level Monitoring |
| Input Voltage | 100–240V |
| Current Rating | 10A or 15A |
| Load Capacity | 1.4kW (120V), 2.4kW (208V), 2.3kW (230V) |
| Transfer Time | <4–8 ms (automatic, out-of-phase supported) |

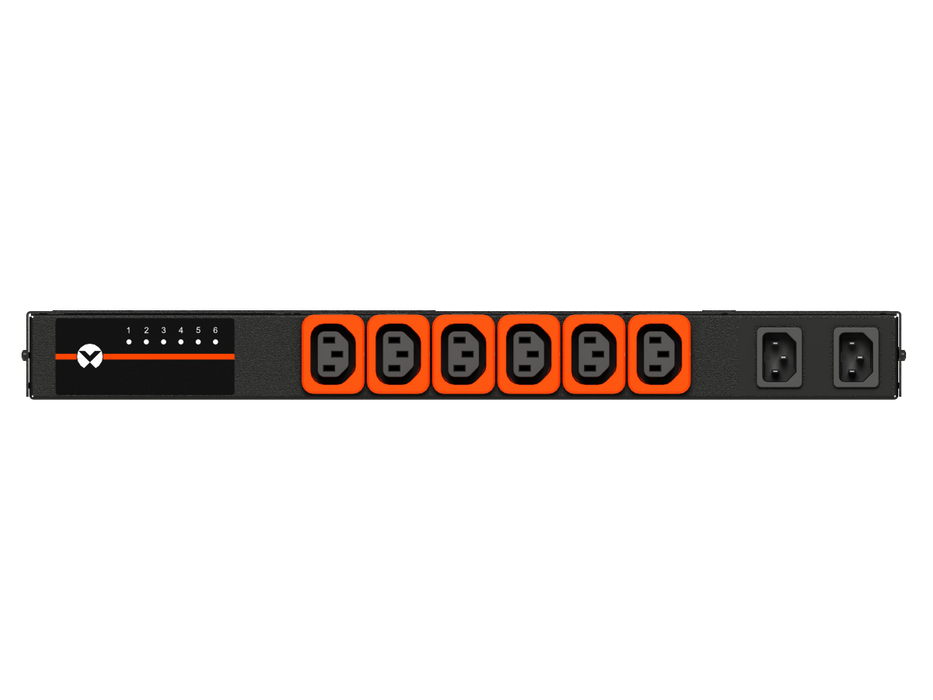

| Receptacles | 6 x Locking IEC C13 (U-Lock, orange) |
| Input Plug Type | 2 x IEC60320 C14 (cords sold separately) |
| Mounting | 19" Horizontal Rackmount (Adjustable 4-post and 2-post kits supported) |
| Monitoring | Input & Outlet Power, Environmental (with optional sensors) |
| Display | LCD Touchscreen, Local LED Indicators |
| Network Connectivity | Dual 10/100/1000Mbps Ethernet, Daisy-Chain up to 50 Devices |
| Protocols | SNMP (v1/v2c/v3), HTTP(S), SSH, Modbus TCP, RADIUS, TACACS+, Syslog, etc. |
| Certifications | UL, CE, UKCA, RoHS, FCC Part 15 Class A, China RoHS |
| Chassis | Steel with Black Powder Coat |
| Dimensions (HxWxD) | 1.72" x 17" x 18" (44mm x 432mm x 457mm) |
| Weight | 12 lbs (5.44 kg) |
| Warranty | 3 years standard, 5 years with registration |
