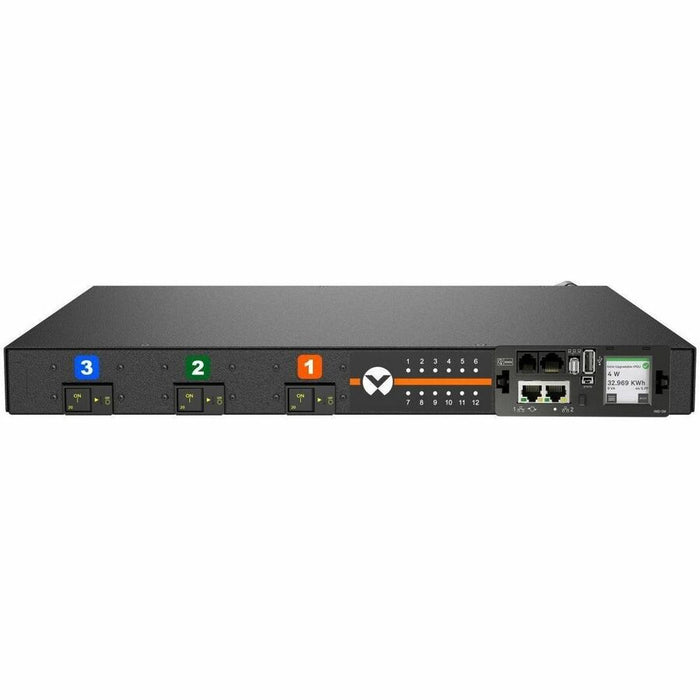

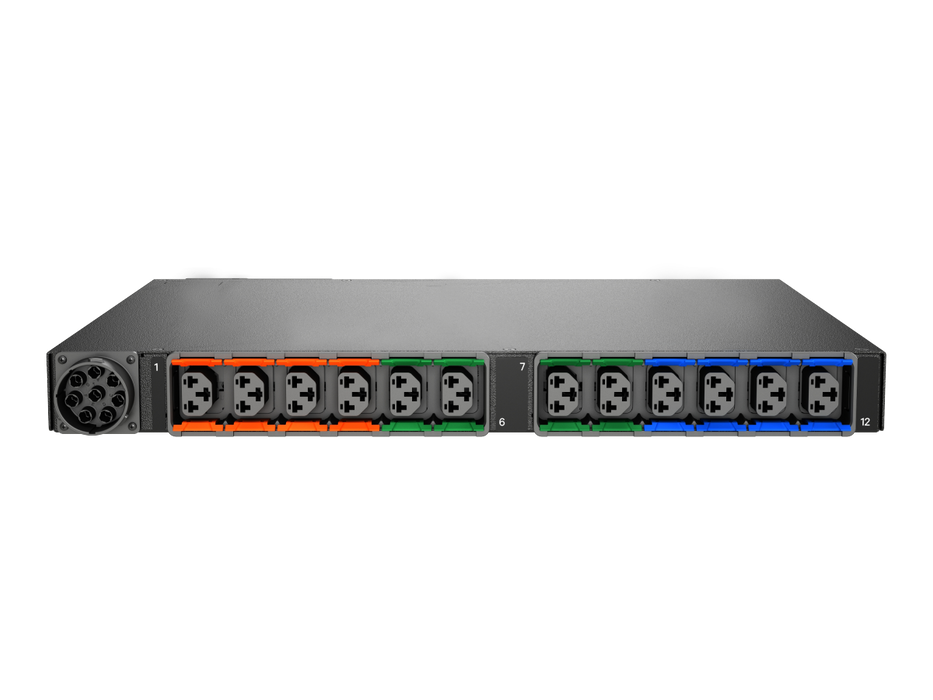

Vertiv VP5UU1A0 PowerIT Switched rPDU, 12x C13/C19, Universal Inlet
by Vertiv
The Vertiv VP5UU1A0 is a horizontal 1U Switched rPDU with unit-level monitoring, 12 combination C13/C19 outlets, and universal inlet. Ideal for high-density IT environments, it features outlet-level switching, remote power monitoring, and optional environmental sensors.
| Specification | Details |
|---|---|
| Model Number | VP5UU1A0 |
| Product Type | Switched rPDU with Unit-Level Monitoring |
| Input Power | Variable, Max 11.0kW |
| Input Plug Type | Universal Inlet |
| Receptacles | 12x Combination C13/C19 |
| Breaker Configuration | (3) 16A Double Pole Magnetic Breakers (10kAIC Rated) |
| Form Factor | 1U, Horizontal |
| Chassis Dimensions (HxWxD) | 1.72 x 17 x 12 in (44 x 432 x 305 mm) |
| Max Input Configurations | 48A 1PH / 24A 3PH Delta / 16A 3PH WYE |
| Power Monitoring | Unit-Level (kWh, W, VA, PF); Phase Monitoring |
| Environmental Monitoring | Optional via remote sensors |
| Remote Management | Outlet switching, delays, sequencing |
| Network Protocols | DHCP, HTTPS, SNMP, SSH, Modbus TCP, etc. |
| Connectivity | Dual Ethernet, RS232, USB, Daisy Chain (up to 50 units) |
| Display | Auto-Oriented LCD Touchscreen |
| Mounting | Adjustable Mount Brackets |
| Chassis Color | Black Powder Coat Finish |
| Certifications | UL, CE, UKCA, FCC, RoHS, IEC 62368-1 |
| Country of Origin | USA (TAA & BAA COTS Compliant) |
| Warranty | 5 Years (if registered within 120 days) |
