Vertiv Geist VP7UU1A0 Switched rPDU, 12 C13/C19 Outlets, 1U Horizontal, Universal Inlet
by Vertiv
The Vertiv Geist VP7UU1A0 is a horizontal 1U rack PDU offering switched, outlet-level monitoring and control, delivering precise remote power management for high-density IT environments. With 12 combination C13/C19 outlets, this unit supports a universal inlet and a variable max load up to 11.0kW. Equipped with hot-swappable upgradeable intelligence (IMD), daisy-chain networking, environmental sensor support, and ANSI/IEC-compliant metering, the VP7UU1A0 ensures unmatched flexibility, uptime, and energy visibility.
| Specification | Details |
|---|---|
| Part Number | VP7UU1A0 |
| Form Factor | 1U Horizontal Rackmount |
| Power Configuration | Variable, Max 11.0kW |
| Input Type | Universal Inlet |
| Input Capacity | Up to 48A 1-phase / 24A 3-phase Delta / 16A 3-phase WYE |

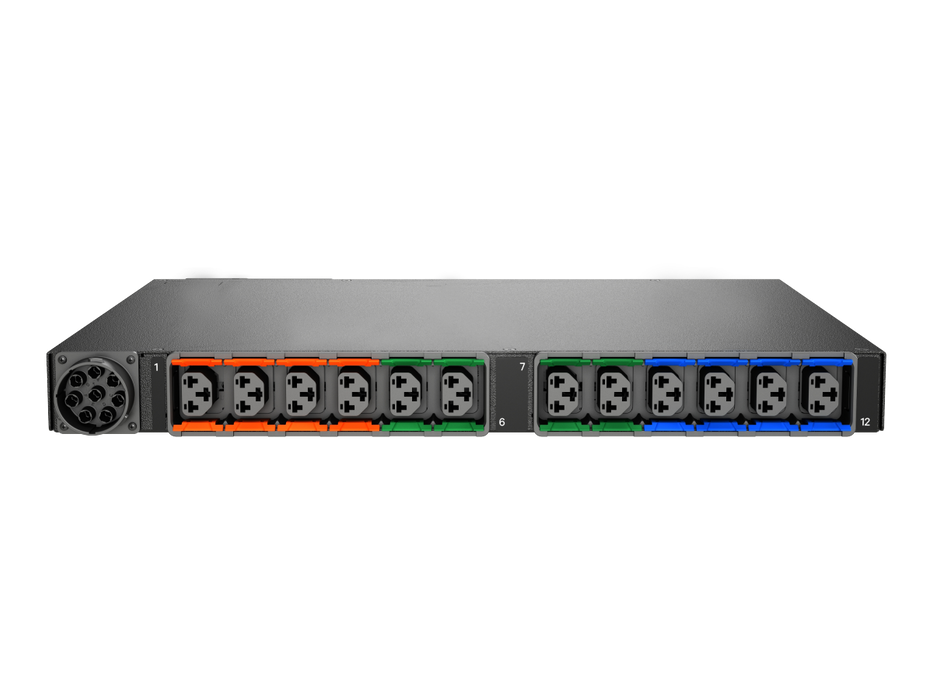

| Receptacle Type & Quantity | (12) Combination C13/C19 |
| Outlet Control | Switched (Individual Outlet Switching, Sequencing, Time Delays) |
| Outlet Monitoring | kWh, W, VA, PF, V, A |

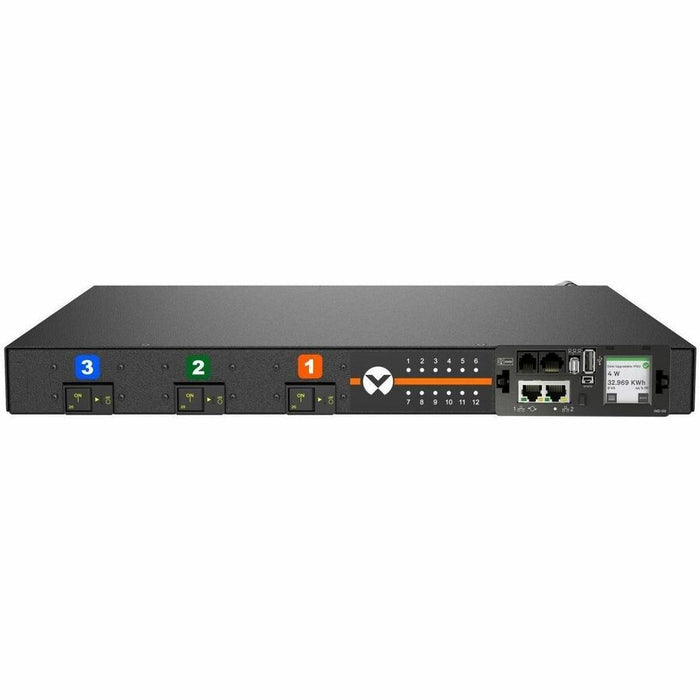

| Circuit Protection | (3) 16A Double Pole Magnetic Breakers (10kAIC) |
| Breaker/Outlet Grouping | 3 Circuits: Orange, Green, Blue (4 outlets per breaker) |
| Monitoring Capabilities | Input, Outlet & Circuit Monitoring, Environmental (via optional sensors) |
| Display | Auto-orienting LCD Touchscreen |
| Network Connectivity | Dual 10/100/1000Mbps Ethernet, RS232, USB |
| Supported Protocols | SNMP v1/v2c/v3, Modbus TCP, RADIUS, SSH, HTTPS, Syslog, JSON, etc. |
| Daisy Chaining | Supports up to 40 devices with fault-tolerant RSTP |
| Sensor Ports | 1 RJ port (supports up to 16 sensors) |
| Operating Temperature | Up to 60°C (140°F) |
| Chassis Dimensions (HxWxD) | 1.72 x 17 x 12 in (44 x 432 x 305 mm) |
| Finish | Heavy Steel, Black Powder Coat |
| Mounting Options | Adjustable Mounting Brackets Included |
| Certifications | UL, CE, UKCA, RoHS, FCC Part 15 Class A, RCM, China RoHS |
| Compliance | TAA & BAA (COTS) Compliant |
| Warranty | 5 Years (with registration); otherwise 3 Years |
