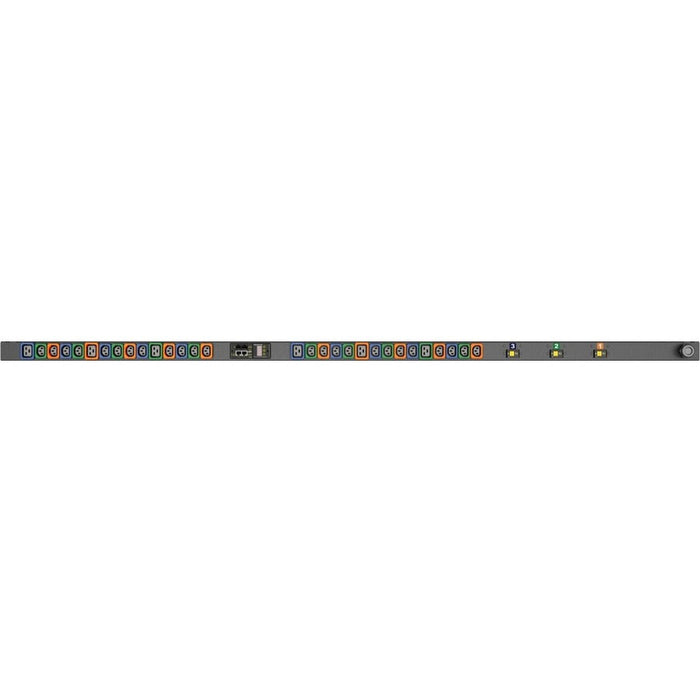

Vertiv Geist rPDU MN03E4W1-30PN68-4CS15A0A10-S-A 30-Outlets Vertical Monitored PDU
The Vertiv Geist rPDU MN03E4W1-30PN68-4CS15A0A10-S-A is a high-performance, vertically mountable monitored power distribution unit (PDU) engineered for three-phase applications. With 30 outlets—comprising 24 x IEC C13 and 6 x IEC C19 locking receptacles—this unit offers reliable and scalable power distribution to critical IT equipment in server racks and data centers.
Equipped with unit-level EC monitoring, the rPDU allows remote network access to view real-time power consumption, ensuring proactive power management. Environmental monitoring capabilities are also supported for added operational awareness. The hot-swappable monitoring device can be upgraded without power interruption.
Ideal for mission-critical environments, it includes fault-tolerant daisy chaining with RSTP, SNMP (v1/v2c/v3) compatibility, and is TAA compliant for government and enterprise deployments.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand | Geist |
| Part Number | NI30298L |
| Product Series | rPDU |
| Model | MN03E4W1-30PN68-4CS15A0A10-S-A |
| Product Type | Monitored PDU |
| Phase | Three Phase |
| Input Plug | 3P+E CA |
| Input Voltage | 230 V AC (Range: 200–240 V AC) |
| Output Voltage | 208 V AC |
| Input Current | 35 A |
| Power Rating | 10 kW |
| Receptacle Types | 24 x Locking IEC 60320 C136 x Locking IEC 60320 C19 |
| Network Interface | RJ-45 Ethernet |
| Network Protocols | SNMP (v1/v2c/v3), SSH, HTTPS, RADIUS, LDAP, etc. |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Dimensions (W x D x L) | 2" x 2" x 72" |
| Environment Sensors Support | Yes (optional) |
| Compliance | TAA Compliant |
| Environmentally Friendly | Yes |
| Country of Origin | United States |
| Warranty | 5-Year Limited |
| Shipping Weight | 1 lb |
| Included Accessories | Vertical Mounting Bracket Kit |
