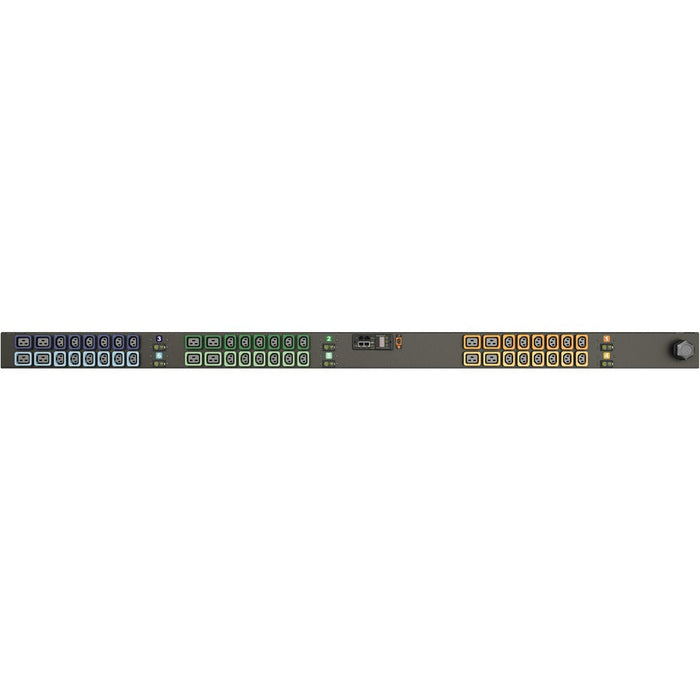

Vertiv Geist rPDU MN03E9W1-48PZB8-6PS15B0A10-S | 48-Outlets, Monitored, 3P+E (IP44), TAA Compliant
The Vertiv Geist rPDU MN03E9W1-48PZB8-6PS15B0A10-S is a factory-fresh, EC Monitored rack PDU engineered to deliver high-efficiency power distribution for critical IT environments. With 48 outlets (36 x IEC C13 and 6 x IEC C19), this unit provides reliable three-phase power (3P+E, IP44) at 230V AC, making it ideal for dense server setups. The unit enables real-time power monitoring and remote access via secure network protocols, including SNMP, SSH, HTTPS, and more. TAA-compliant and backed by a 5-year warranty, it ensures uptime and compliance in government and enterprise data centers.
Upgrade-ready, the hot-swappable monitoring device and optional environmental sensors provide scalable insight into temperature, humidity, and power metrics. With support for Fault-Tolerant Daisy Chaining and Vertiv’s VLC mobile app, the Geist rPDU offers unmatched flexibility and resilience.
| Specification | Details |
|---|---|
| Brand | Vertiv Geist |
| Manufacturer Part Number | NI30068L |
| Product Series | rPDU |
| Product Model | MN03E9W1-48PZB8-6PS15B0A10-S |
| PDU Type | Monitored |
| Form Factor | Rack-mountable, Vertical |
| Input Plug Type | 3P+E (IP44) |
| Input Voltage | 230V AC (Range: 200–240V AC) |
| Output Voltage | 208V AC |
| Input Current | 60A |
| Power Rating | 17.20 kW |
| Receptacles | 36 x IEC 60320 C13, 6 x IEC 60320 C19 |
| Network Connectivity | RJ-45, DHCP, HTTP/HTTPS, SNMP v1/v2c/v3, Syslog, SSH, RADIUS, TACACS+, etc. |
| Monitoring Capabilities | Local & remote, environmental monitoring (optional sensors) |
| Protection Type | Double Pole, Overcurrent Protection |
| Daisy Chain Support | Yes (RSTP, up to 40 rPDUs) |
| Mobile Access | Vertiv VLC App |
| Dimensions (WxDxL) | 3.8" x 3.4" x 72" |
| Shipping Weight | 32 lbs |
| Warranty | 5-Year Limited Warranty |
| Compliance | TAA Compliant, Environmentally Friendly |
| Condition | New and Factory Fresh |
| Package Includes | rPDU Unit, Vertical Mounting Bracket Kit |
