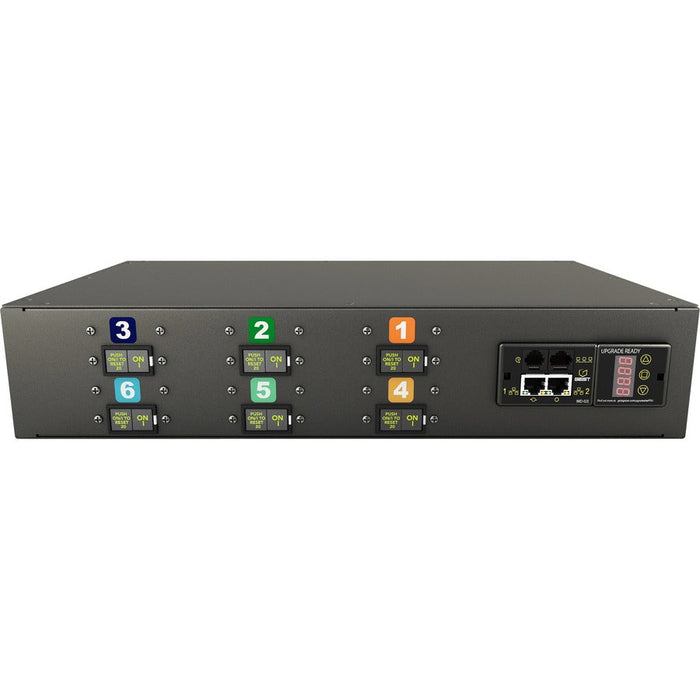

Vertiv Geist rPDU MN03EDR1-15P3B8-6PS15B0H10-S 15-Outlets 3P+E 2U Horizontal Monitored Rack PDU
by Vertiv
The Vertiv Geist MN03EDR1-15P3B8-6PS15B0H10-S is a monitored, horizontal rack power distribution unit (rPDU) designed for critical IT environments. Delivering reliable 3-phase 230V power through 15 locking IEC outlets, it enables real-time local and remote power usage monitoring via secure network access. With hot-swappable monitoring and environmental sensor capabilities, it offers scalable infrastructure visibility. TAA compliant and RoHS-certified, this unit ensures maximum uptime, simplifies deployment, and supports fault-tolerant daisy chaining for up to 40 rPDUs.
| Specification | Details |
|---|---|
| Brand | Vertiv Geist |
| Series | rPDU |
| Model | MN03EDR1-15P3B8-6PS15B0H10-S |
| Part Number | NI30059L |
| Product Type | Monitored Rack PDU |
| Phase | Three Phase |
| Input Voltage | 230V AC |
| Output Voltage | 208V AC |
| Power Rating | 17.2 kW |
| Input Current | 60 A |
| Plug Type | 3P+E (IP44) |
| Receptacles | 3 x Lock IEC C13, 12 x Lock IEC C19 |
| Form Factor | 2U Horizontal Rack-mountable |
| Mount Type | Rack |
| Network Connectivity | RJ-45 (Supports DHCP, HTTP/S, SNMP, SSH, etc.) |
| Protocols Supported | SNMP v1/v2c/v3, HTTPS, Syslog, SSH, TACACS+, etc. |
| Monitoring Features | Local/Remote Monitoring, Fault Tolerant Daisy Chain |
| Environmental Monitoring | Yes, with optional sensors |
| Compliances | RoHS, TAA Compliant |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Warranty | 5 Years Limited |
| Shipping Weight | 29 lbs |
