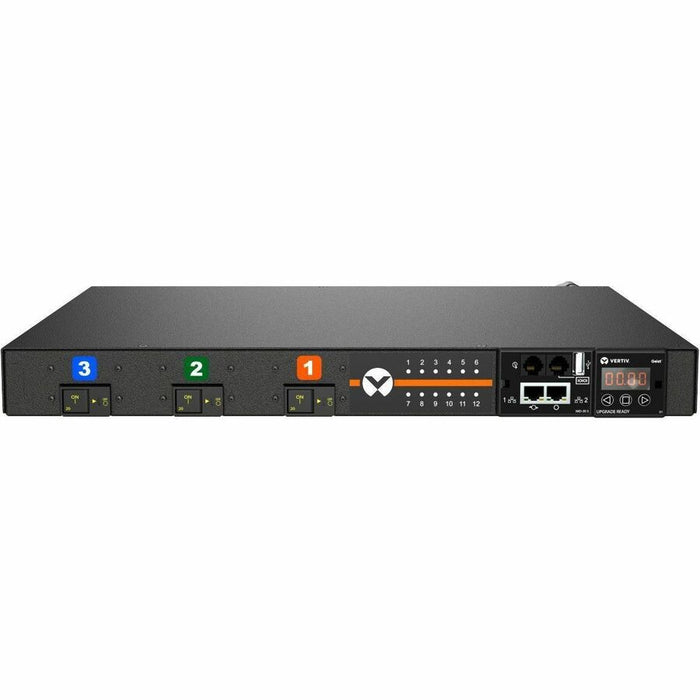

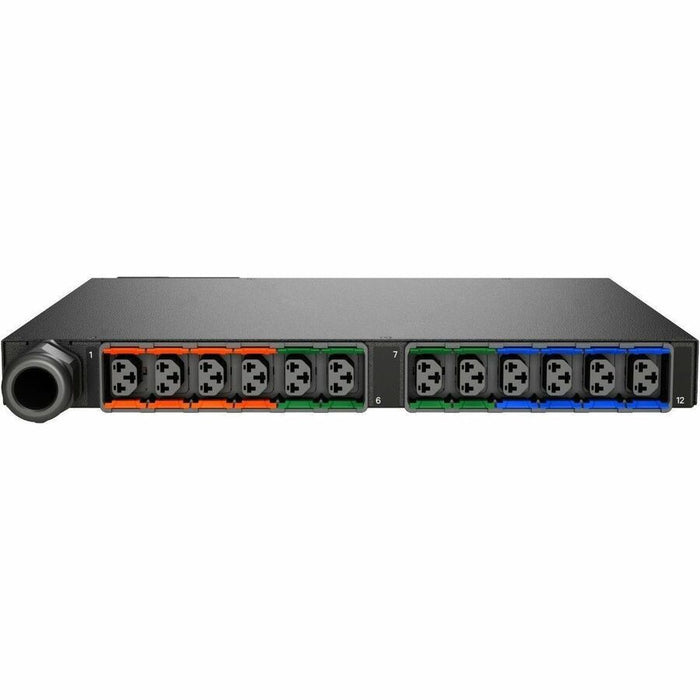

Vertiv Geist rPDU MNR3E1R6-12CF18-3TL21A0H10-S | 12-Outlets | Monitored | 30A | L21-30P | Horizontal | TAA Compliant
by Vertiv
The Vertiv Geist rPDU NR30207 delivers robust, upgradeable outlet-level EC Monitored power distribution for mission-critical IT environments. Equipped with 12 combination C13/C19 outlets and a NEMA L21-30P input plug, this three-phase rack PDU supports 120V/230V input with an 8600W capacity. Designed for horizontal rack-mount installation, it includes environmental monitoring capabilities and network connectivity via RJ-45, supporting protocols like SNMP, SSH, and Modbus TCP.
With its hot-swappable monitoring module, remote power usage tracking, and TAA compliance, the NR30207 is ideal for data centers and server rooms demanding high uptime and energy insight.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Geist |
| Part Number | NR30207 |
| Product Series | rPDU |
| Model | MNR3E1R6-12CF18-3TL21A0H10-S |
| PDU Type | Monitored |
| Form Factor | Horizontal, Rack-mountable |
| Input Plug Type | NEMA L21-30P |
| Input Voltage | 120V AC / 230V AC |
| Output Voltage | 208V AC |
| Input Voltage Range | 100-120V AC / 200-240V AC |
| Input Frequency | 60 Hz |
| Input Current | 30A |
| Receptacles | 12 x Combination C13/C19 |
| Cord Length | 10 ft |
| Power Rating | 8600 Watts |
| Monitoring Capabilities | Outlet-level EC Monitoring, Remote Access via Network |
| Network Interface | RJ-45 (Supports SNMP v1/v2c/v3, HTTPS, SSH, Modbus, etc.) |
| Environmental Monitoring | Optional sensors supported |
| Certifications | UL, c-UL 62368-1, FCC Part 15 Class A, RoHS, TAA Compliant |
| Warranty | 5 Years (with registration), otherwise defaults to 3 years |
| Product Color | Black Powder Coat |
| Dimensions (H x W x D) | 1.7" x 17" x 12" |
| Weight | 1 lb |
| Max Operating Temp | 140°F (60°C) |
| Included Accessories | Adjustable Mount Brackets |
| Application | IT Equipment, Data Centers |
