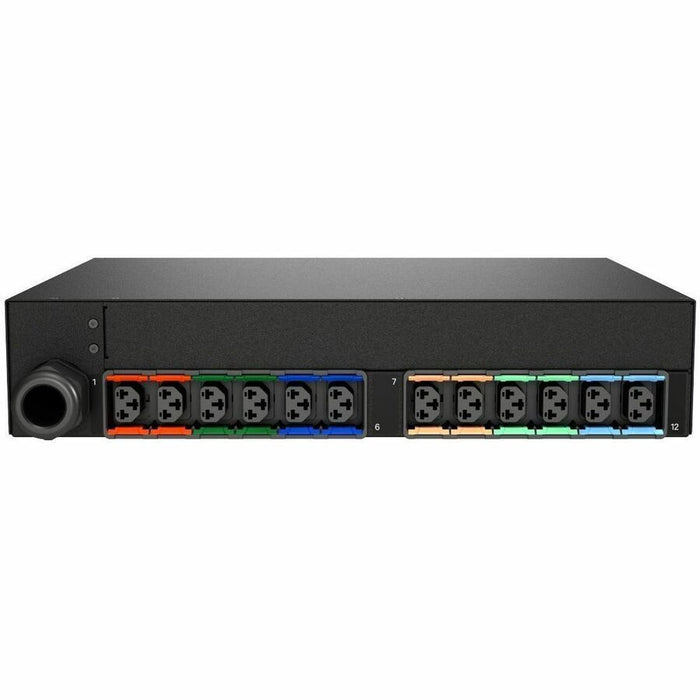

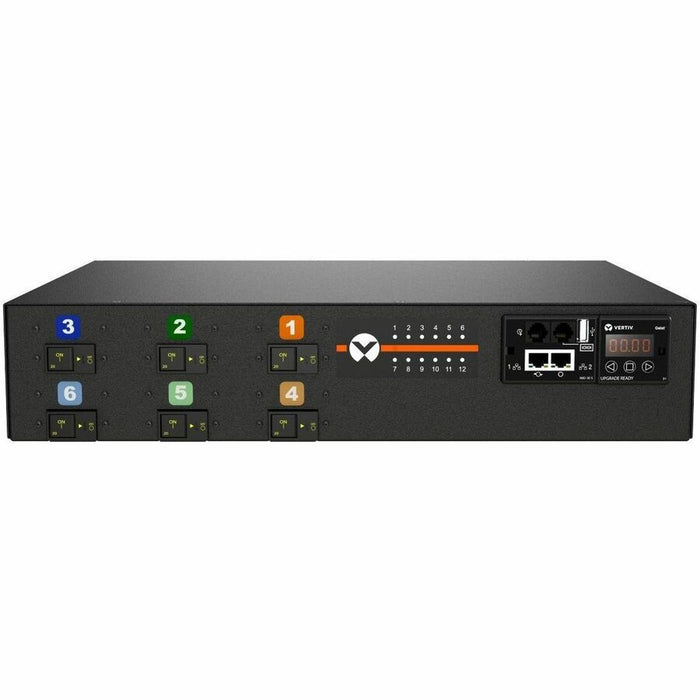

Vertiv Geist rPDU MNR3EDR6-12CF18-6PS15B0H10-S | 12-Outlets | 60A | 17.2kW | Monitored | Horizontal 2U | TAA Compliant
by Vertiv
The Vertiv Geist rPDU MNR3EDR6-12CF18-6PS15B0H10-S delivers reliable and intelligent power distribution with EC Monitored outlet-level visibility for mission-critical IT infrastructure. Designed with high-density 60A IEC 60309 input, it supports a maximum power capacity of 17.2 kW across 12 combination C13/C19 outlets. With full network management support and advanced features like overcurrent protection, daisy-chaining, and optional environmental monitoring, it ensures uptime, simplifies deployment, and enhances data center efficiency. Ideal for TAA-compliant installations.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Geist |
| Series | rPDU |
| Model | MNR3EDR6-12CF18-6PS15B0H10-S |
| Part Number | NR30213 |
| Product Type | Monitored PDU |
| Input Plug Type | IEC 60309 3P+E 60A |
| Input Voltage Range | 200 - 240V AC |
| Output Voltage | 208V AC |
| Input Frequency | 60 Hz |
| Power Rating | 17.2 kW |
| Receptacles | 12 x Combination C13/C19 |
| Cord Length | 10 ft |
| Rack Height / Size | 2U |
| Mounting | Rack-mountable, Recess-mountable |
| Orientation | Horizontal |
| Protection Features | Double Pole Circuit Breaker, Overcurrent Protection |
| Network Port | RJ-45 |
| Monitoring Protocols | SNMP v1/v2c/v3, SSH, HTTPS, Modbus TCP, JSON API |
| Advanced Features | Daisy-chaining (up to 50 units), Environmental Sensors |
| Material / Finish | Black Powder Coat |
| Dimensions (H x W x D) | 3.4" x 17" x 12" |
| Max Operating Temperature | 140°F (60°C) |
| Compliance | RoHS, TAA Compliant |
| Country of Origin | United States |
| Warranty | 3-Year Limited (5-Year if Registered in 120 Days) |
| Shipping Weight | 1 lb |
