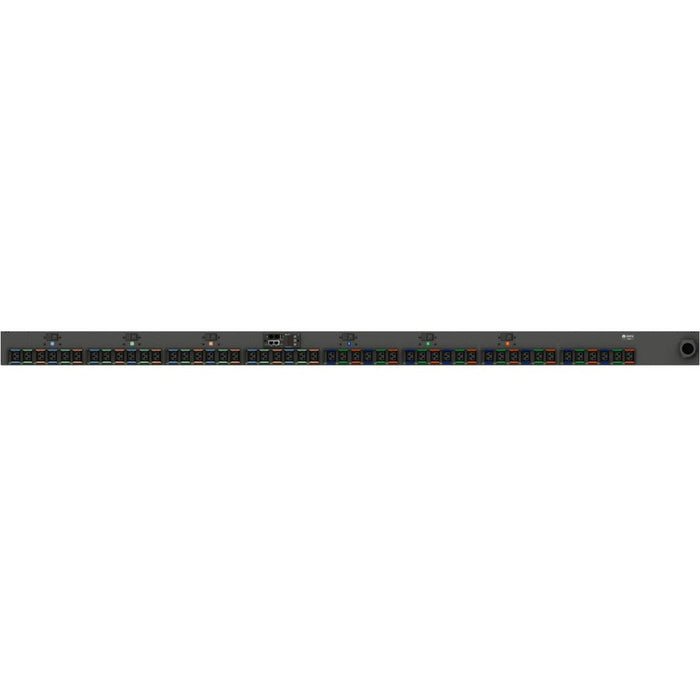

Vertiv Geist VP6N6004 rPDU – 48x Combination C13/C19, 60A 230V, 17.2kW, IP67 Input, Monitored, Vertical 0U, TAA Compliant
The Vertiv Geist VP6N6004 is a high-capacity, intelligent, monitored rack power distribution unit (rPDU) with 48 Combination C13/C19 outlets, designed to provide reliable and flexible power distribution for mission-critical IT environments. Operating at 230V AC with a 60A IP67-rated 3P+E input plug, this vertical 0U PDU delivers a robust 17.2kW power capacity.
This unit supports advanced outlet-level power monitoring and remote management via a wide array of protocols including SNMP, SSH, HTTP/HTTPS, and more. Environmental monitoring is enabled through optional sensors, helping prevent climate-related equipment failures. With fault-tolerant daisy chaining supporting up to 50 units on a single IP, the VP6N6004 ensures scalable and resilient power distribution for modern data centers.
| Attribute | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand | Geist |
| Part Number | VP6N6004 |
| Model | MNR3EHW1-48CF18-6PS15D0A10-S-A |
| PDU Type | Monitored |
| Input Voltage | 230V AC (Range: 200–240V AC) |
| Output Voltage | 208V AC |
| Power Capacity | 17.2 kW |
| Input Current | 60A |
| Input Plug | 3P+E (IP67) |
| Outlets | 48 x Combination C13/C19 |
| Mounting Orientation | Vertical 0U |
| Form Factor | Rack-mountable |
| Dimensions (W x D x L) | 3.8" x 2.6" x 78" |
| Network Port | RJ-45 |
| Monitoring | Outlet-level, remote and local monitoring |
| Management Protocols | SNMP (v1/v2c/v3), DHCP, HTTP/HTTPS, RADIUS, TACACS+, Syslog, SSH, LDAP, NTP, IPv4/IPv6 |
| Environmental Monitoring | Yes (via optional sensors) |
| Daisy Chaining | Supports up to 50 units with self-configuration |
| TAA Compliant | Yes |
| Environmental Compliance | RoHS |
| Color | Black Powder Coat |
| Country of Origin | United States |
| Warranty | 5 years (with registration within 120 days, otherwise 3 years) |
| Shipping Weight | 22 lbs |
