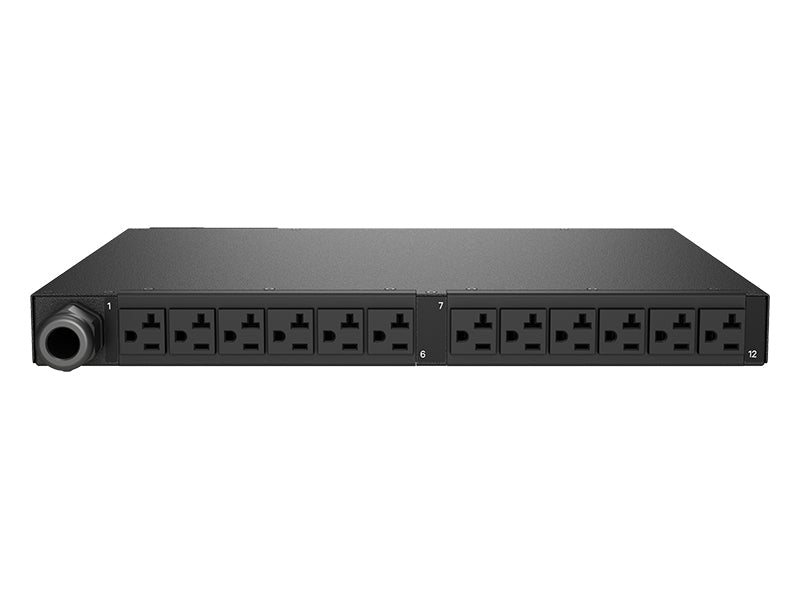

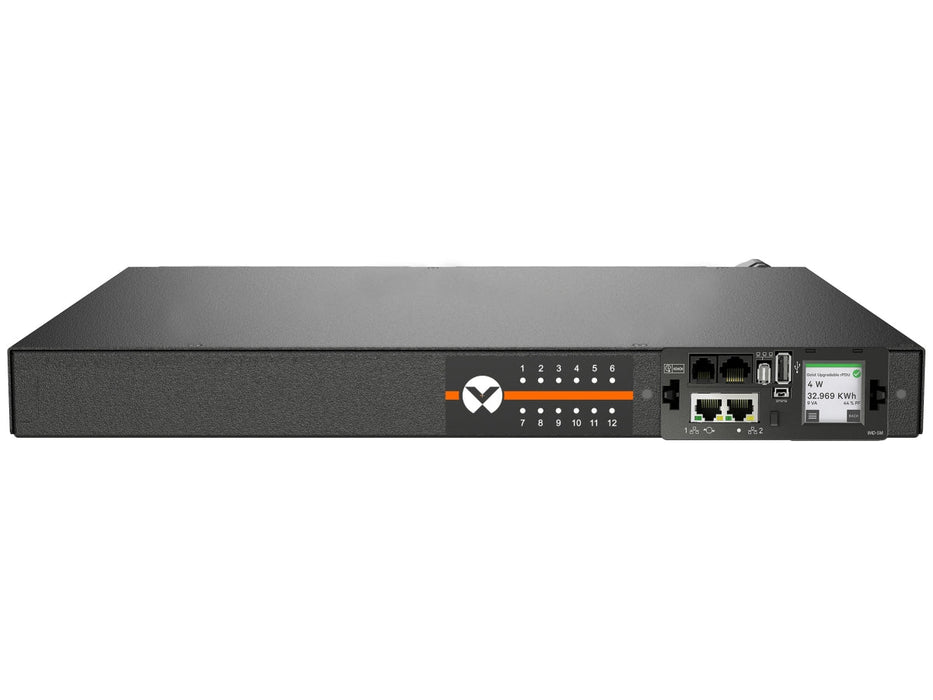

Vertiv VP6N21A0 Monitored rPDU, 20A 120V, 12x5-20R, Horizontal, 10ft Cord
by Vertiv
The Vertiv VP6N21A0 PowerIT rPDU™ delivers reliable horizontal power distribution with advanced outlet-level monitoring. Rated at 20A, 120V, and 1.9kW, this unit features (12) NEMA 5-20R outlets and a 10ft cord with NEMA 5-20P plug. With environmental monitoring capabilities, daisy-chain Ethernet connectivity, and a high-visibility local display, it provides real-time insights into energy use and environmental conditions. Ideal for maximizing uptime in critical IT environments.
| Feature | Details |
|---|---|
| Part Number | VP6N21A0 |
| Input Voltage | 100–120V |
| Current Rating | 20A |
| Load Capacity | 1.9kW |
| Plug Type | NEMA 5-20P |
| Receptacle Type & Quantity | (12) NEMA 5-20R |
| Mounting Configuration | 19in / 483mm Horizontal Rackmount |
| Monitoring | Outlet Level EC Monitoring |
| Environmental Monitoring | Yes (via optional sensors) |
| Display | LCD touchscreen, auto-oriented |
| Ethernet Ports | Dual 10/100/1000Mbps |
| Protocols Supported | SNMP (v1/v2c/v3), HTTPS, SSH, Modbus TCP, etc. |
| Daisy-Chain Capability | Up to 50 devices |
| Data Access | JSON API, CSV, Syslog |
| Power Cord | 10ft / 3m, 12/3 gauge |
| Construction | Black powder-coated heavy steel |
| Chassis Dimensions (HxWxD) | 1.72 x 17 x 12 in (44 x 432 x 305 mm) |
| Weight | 10 lbs (4.54 kg) |
| Certifications | UL & c-UL 62368-1, FCC Class A, RoHS |
| Warranty | 5-year (with registration); 3-year standard |
