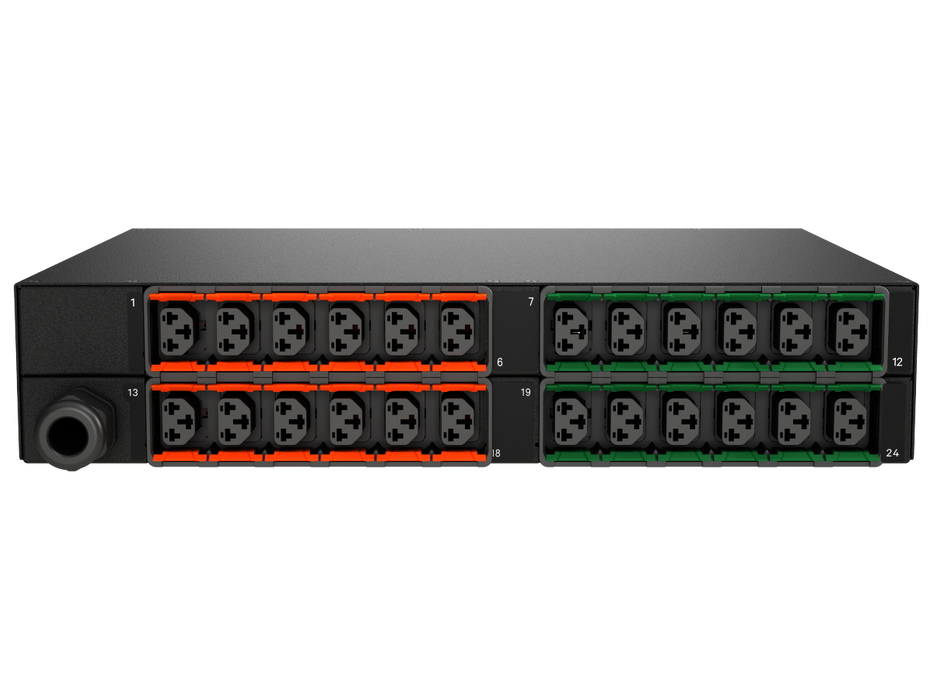

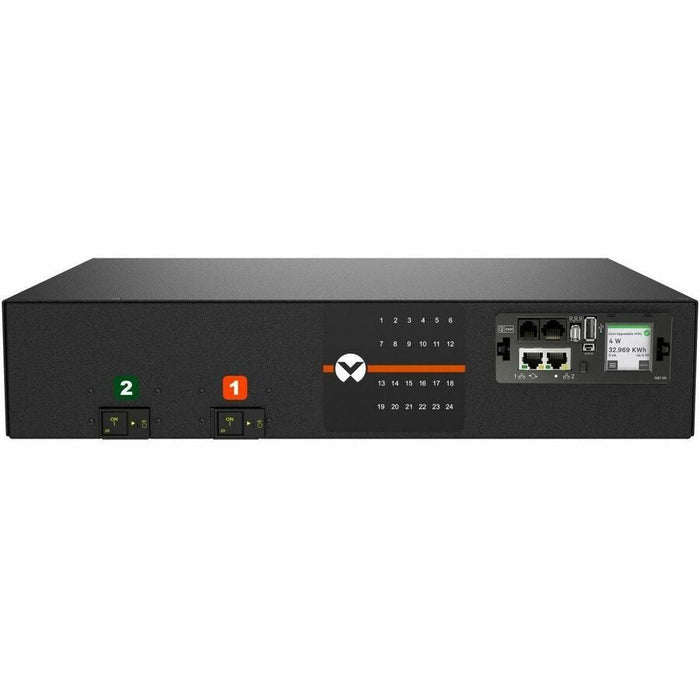

Vertiv Geist VP6N32A0 Monitored rPDU, 30A 208V, 4.9kW, 24 C13/C19 Outlets
by Vertiv
The Vertiv Geist VP6N32A0 is a 2U horizontal rack power distribution unit (rPDU) delivering reliable, high-accuracy outlet-level monitoring for critical IT infrastructure. With 24 combination C13/C19 outlets, 30A input capacity, and a 4.9kW load, this unit supports remote power visibility, environmental monitoring (optional sensors), and dual Ethernet for daisy-chaining up to 50 devices. It features ANSI-compliant energy metering, an auto-orienting local display, and a rugged black powder-coated steel chassis. Ideal for high-density enterprise environments demanding maximum uptime and power visibility.
| Feature | Details |
|---|---|
| Model Number | VP6N32A0 |
| Power Capacity | 30A, 208V, 4.9kW |
| Mounting Orientation | Horizontal, 2U |
| Outlet Count & Type | 24 Combination C13/C19 |
| Plug Type | NEMA L6-30P Twistlock |
| Input Monitoring | Yes (kWh, W, VA, PF, V, A) |
| Outlet Monitoring | Yes (kWh, W, VA, PF, V, A) |
| Breaker Protection | (2) 20A Double Pole Magnetic Breakers |
| Circuit Monitoring | Yes (2% accuracy) |
| Network Protocols Supported | SNMP v1/v2c/v3, HTTP/HTTPS, SSH, RADIUS, Modbus TCP, etc. |
| Display | Auto-orienting LCD Touchscreen |
| Environmental Monitoring | Optional (supports up to 16 sensors) |
| Daisy Chain Support | Up to 50 devices on one IP |
| Connectivity | Dual Gigabit Ethernet, USB, RS232 via RJ45 |
| Power Cord Length | 10 ft (3m) |
| Chassis Dimensions (HxWxD) | 3.39in x 17in x 12in (87mm x 432mm x 305mm) |
| Weight | 18 lbs (8.16 kg) |
| Certifications | UL/c-UL 62368-1, FCC Part 15 Class A, RoHS |
| Operating Temp Max | 60°C (140°F) |
| Warranty | 5 years (if registered within 120 days) |
| Country of Origin | USA (TAA & BAA COTS Compliant) |
