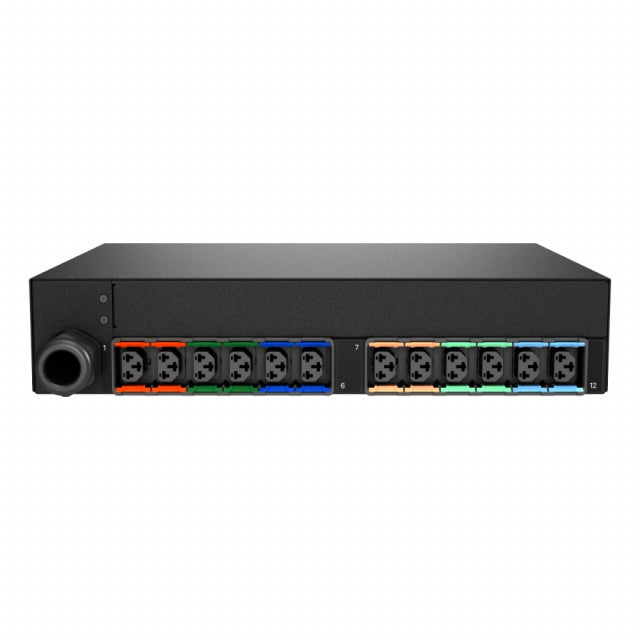

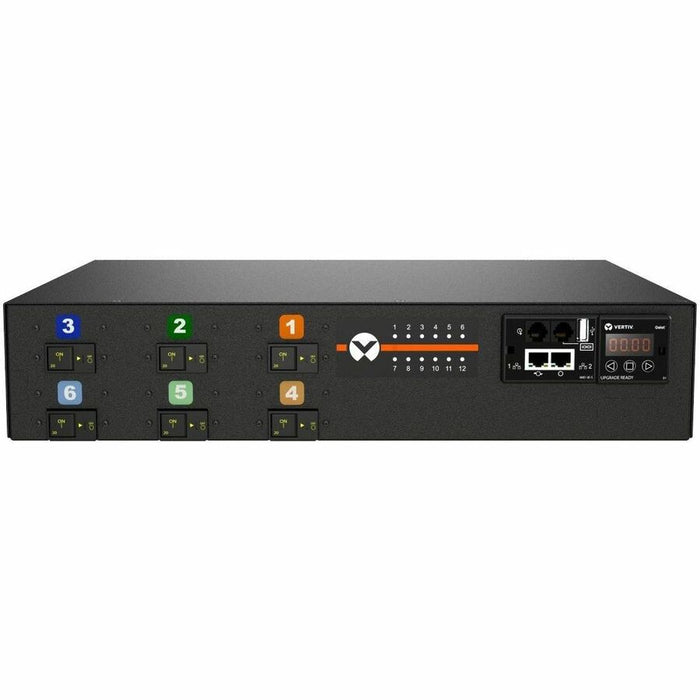

Vertiv Geist NS30212 Switched rPDU 50A 208V DELTA 14.4kW 12-Outlets Horizontal | C13/C19 | 10ft Cord | Black
The Vertiv Geist NS30212 is a 50A Switched Rack PDU designed for enterprise-class data centers and critical infrastructure. This 2U horizontal power distribution unit delivers 14.4kW at 208V, equipped with 12 Combination C13/C19 outlets, robust input monitoring, and outlet-level switching. It features dual Ethernet ports for daisy-chain connectivity, high-visibility LED display, and supports environmental sensors to ensure intelligent power management.
With circuit/breaker current monitoring and hot-swappable monitoring capabilities, the NS30212 enables real-time control, analytics, and proactive maintenance. Built with a durable black powder-coated finish and compliant with TAA standards, it's ideal for mission-critical environments requiring reliable, flexible power distribution.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Geist |
| Model Number | NS30212 |
| Series | rPDU |
| Type | Switched Unit Level Monitored EC rPDU |
| Mounting | Horizontal, 2U Rack-Mountable |
| Outlet Quantity | 12 Combination Outlets (C13/C19) |
| Input Power | 50A, 208V 3-Phase DELTA |
| Power Capacity | 14.4kW |
| Cord Length | 10 ft / 3 m |
| Plug Type | California Style 50A, 250V, 3P/4W Twistlock |
| Overcurrent Protection | (6) 20A Double Pole Magnetic Breakers (10kAIC Rated) |
| Outlet Switching | Individual Outlet Control |
| Input Monitoring | Total Unit (kWh, W, VA, PF), Phase & Line Monitoring |
| Circuit Monitoring | Circuit/Breaker Current (2% Accuracy) |
| Ethernet Ports | Dual 10/100Mbps, Daisy Chain Support |
| Indicators | 12 High-Visibility LEDs |
| Display | Rotatable Digital LED Display |
| Configuration Style | Banks of 6 |
| Circuit Colors | Orange, Green, Blue, Light Orange, Light Green, Light Blue |
| Temperature Rating | Max 60°C / 140°F |
| Remote Management Protocols | DHCP, HTTP, HTTPS, SNMP, RADIUS, SSH, Syslog, TACACS+, etc. |
| Data Access Formats | CSV Datalog, JSON API, JSON Datalog |
| Sensor Support | 1 RJ Port (Supports up to 16 Sensors) |
| Reset Buttons | IP Reset, Hard Reboot |
| Finish | Black Heavy Steel Powder Coat |
| Compliance | TAA Compliant |
| Dimensions (HxWxD) | 3.39in x 17in x 12in / 87mm x 432mm x 305mm |
| Country of Origin | USA |
