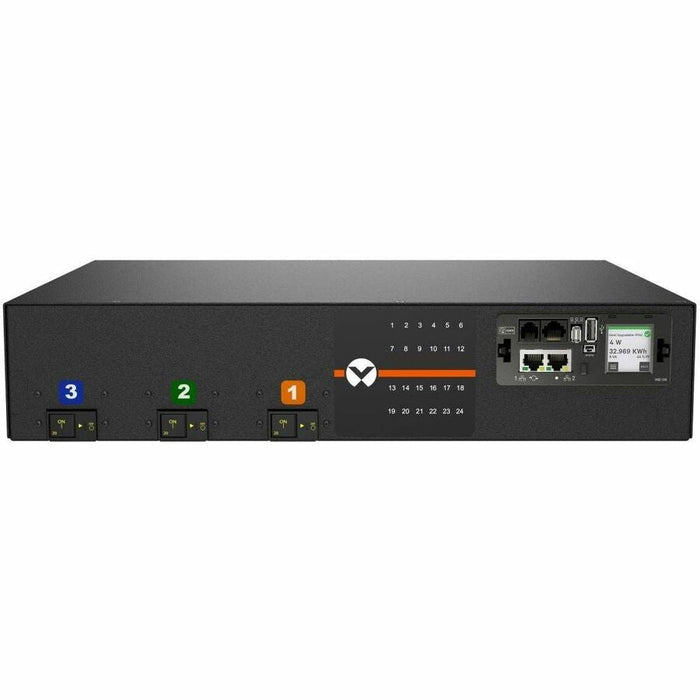

Vertiv VP5N32A1 Switched rPDU, 30A 208V, 5.7kW, 24 Outlets, Horizontal
by Vertiv
The Vertiv VP5N32A1 is a high-performance switched rack PDU designed for intelligent power distribution in critical IT environments. Featuring 24 combination C13/C19 outlets, 30A input with 208V output, and 5.7kW power capacity, this 2U horizontal rPDU provides unit-level monitoring, outlet-level switching, and environmental sensor integration. It includes daisy-chain Ethernet support, a local LCD touchscreen, and robust remote access protocols for seamless power management and real-time visibility.
| Specification | Details |
|---|---|
| Model Number | VP5N32A1 |
| Type | Switched rPDU with Unit Level Monitoring |
| Form Factor | Horizontal, 2U, 19in Rackmount |
| Power Capacity | 30A, 208V, 5.7kW |
| Input Plug Type | NEMA L14-30P Twistlock |

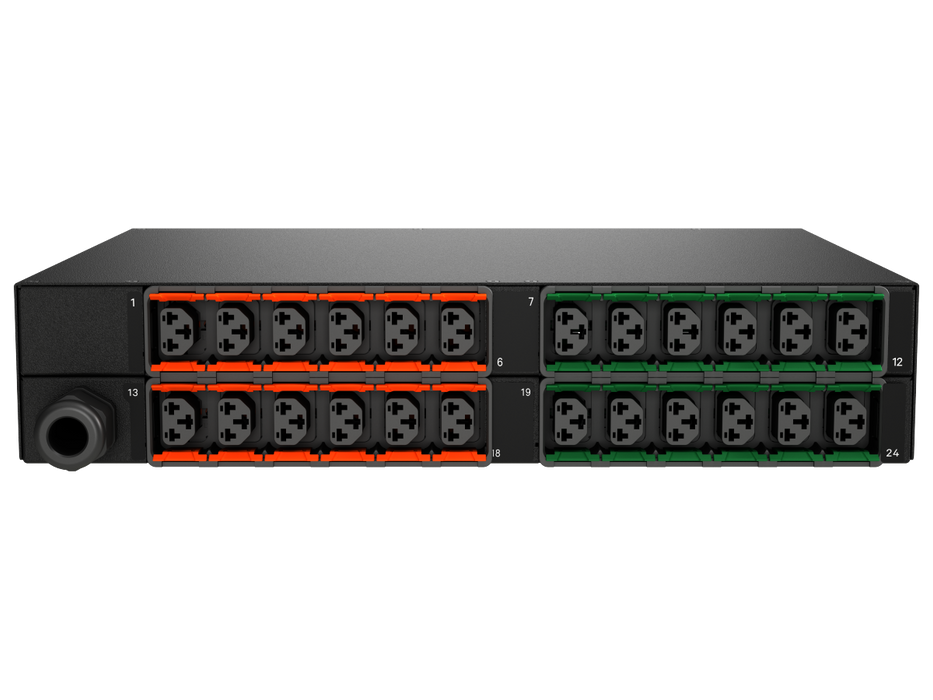

| Outlet Type & Quantity | 24 × Combination C13/C19 |
| Breaker Configuration | (2) 20A Double Pole Magnetic Breakers (10kAIC) |
| Monitoring | Input, Circuit/Breaker, Outlet Switching, Environmental |
| Display | LCD Touchscreen, Auto-Oriented |
| LED Indicators | 24 |
| Remote Sensor Support | 1 × RJ Connection (supports up to 16 sensors) |
| Daisy Chain Support | Up to 50 devices per IP / Fault-tolerant RSTP |
| Network Protocols | SNMP (v1/v2c/v3), HTTP/S, SSH, Modbus TCP, etc. |
| Connectivity | Dual 10/100/1000Mbps Ethernet, RS232 via RJ45, USB |
| Power Cable Length | 10ft (3m), 10/4 gauge |
| Color ID | Circuit Color: Orange, Green |
| Chassis Color | Black Powder Coat |
| Operating Temperature | Max 60°C (140°F) |
| Certifications | UL & c-UL 62368-1, RoHS, FCC Part 15 Class A |
| Compliance | TAA and Buy American Act COTS Compliant |
| Warranty | 5-Year (with registration within 120 days), otherwise 3 |
| Dimensions (HxWxD) | 3.39in x 17in x 12in (87mm x 432mm x 305mm) |
| Shipped Weight | 18lbs (8.16kg) |
