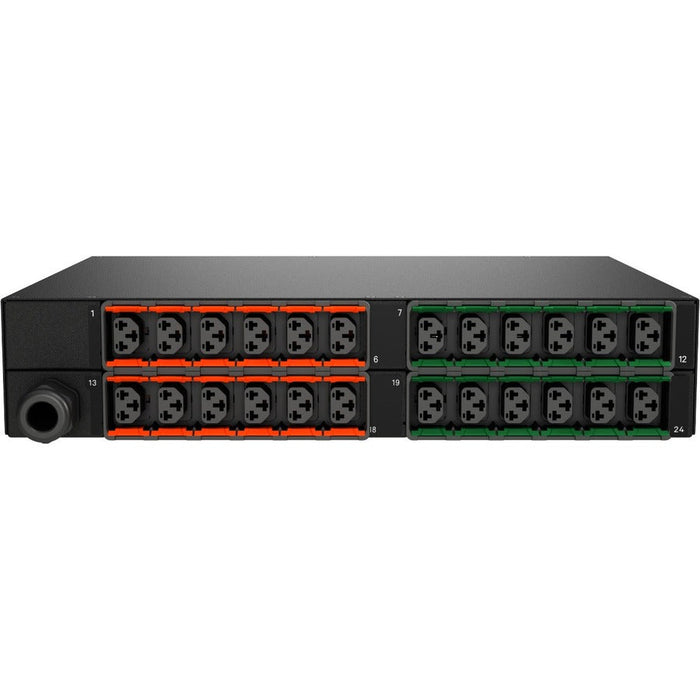

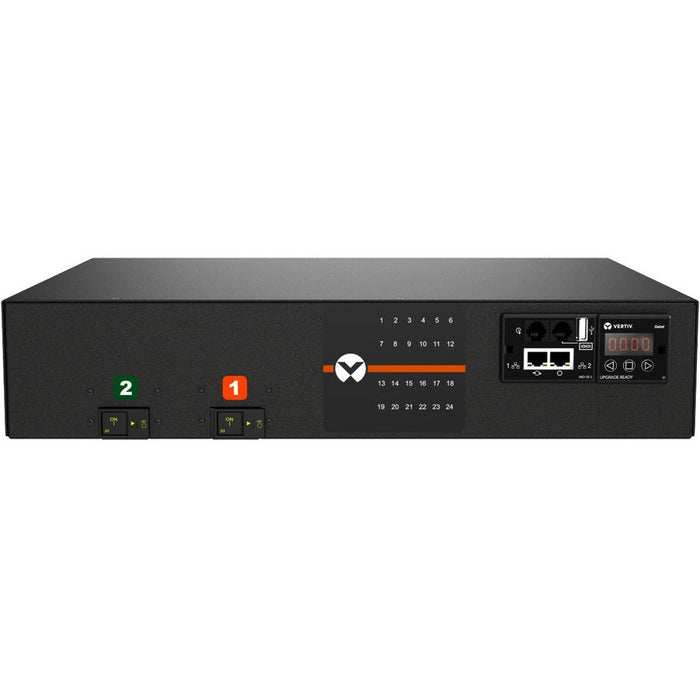

Vertiv Geist rPDU MNU3EDR6-24CF18-3TL6A0H10-S 24-Outlets Switched Monitored PDU
by Vertiv
The Vertiv Geist rPDU MNU3EDR6-24CF18-3TL6A0H10-S delivers switched outlet-level monitoring and remote power control to ensure uptime and energy efficiency in high-density IT environments. Equipped with 24 combination C13/C19 outlets and a NEMA L6-30P input plug, this 2U horizontal rack-mountable unit offers robust 30A, 230V AC input. It supports environmental monitoring, sequential power-up, and daisy chaining of up to 50 devices on a single IP, optimizing network traffic and device management. Featuring hot-swappable upgradeable monitoring, this TAA-compliant rPDU is ideal for enterprise data centers and colocation facilities.
| Category | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Geist |
| Series | rPDU |
| Model | MNU3EDR6-24CF18-3TL6A0H10-S |
| Part Number | NU30215 |
| Form Factor | Horizontal, 2U Rack-Mountable |
| Mounting Orientation | Horizontal |
| Outlets | 24 x Combination C13/C19 |
| Plug Type | NEMA L6-30P |
| Input Voltage | 230V AC (Range: 200–240V AC) |
| Output Voltage | 208V AC |
| Power Rating | 4900 Watts |
| Input Current | 30 Amps |
| Network Interface | 1 x RJ-45 |
| Switching | Individual Outlet Switching with Delays |
| Monitoring | Switched Outlet Level Monitoring |
| Environmental Sensors | Optional (Supports Real-Time Monitoring) |
| Compliance | RoHS, TAA Compliant |
| Country of Origin | United States |
| Color | Black Powder Coat |
| Dimensions (H x W x D) | 3.4" x 17" x 12" |
| Shipping Weight | 1 lb |
| Warranty | 3-Year Limited Warranty |
| Product Condition | New and Factory Fresh |
