Vertiv Geist rPDU MNU3EGW2 36-Outlets 0U Monitored PDU, 3P+N+E, 16.6kW (NU30035L)
by Vertiv

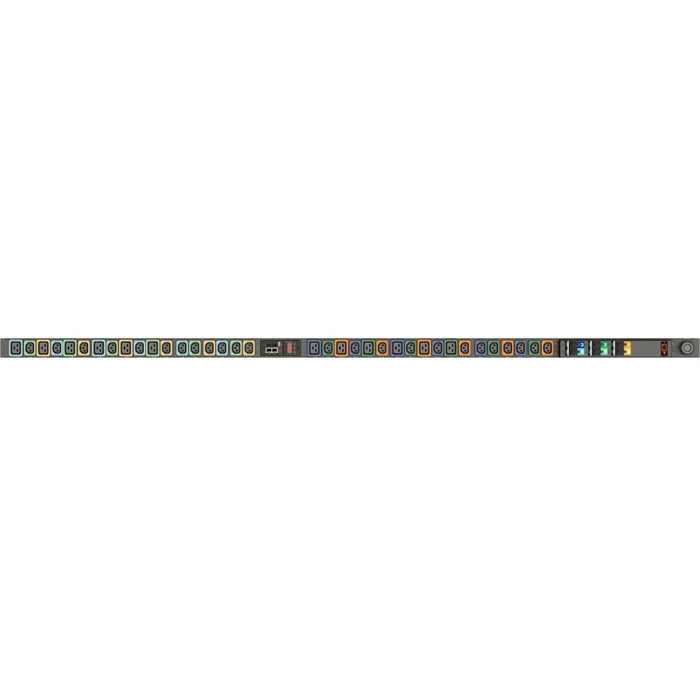

The Vertiv Geist rPDU MNU3EGW2-36PNB3-3PS56B0A10-S-A delivers advanced outlet-level monitoring with 36 locking IEC outlets to support mission-critical power distribution in data centers. This 0U vertical rack-mountable unit features 24 x IEC C13 and 12 x IEC C19 outlets, 3P+N+E plug with IP44 protection, and supports input voltages of 230V to 415V AC. With integrated environmental monitoring support, remote access via SNMP, HTTP/HTTPS, SSH, and Syslog, and fault-tolerant daisy chaining (up to 50 devices), this PDU is designed for scalability, uptime, and insight at every outlet.
| Specification | Details |
|---|---|
| Brand | Vertiv Geist |
| Model | MNU3EGW2-36PNB3-3PS56B0A10-S-A |
| Part Number | NU30035L |
| Form Factor | 0U Vertical Rack-mountable |
| Outlet Quantity | 36 (24 x C13, 12 x C19, Locking IEC 60320) |
| Plug Type | 3P+N+E (IP44) |
| Input Voltage | 230V AC / 415V AC |
| Voltage Range | 200–240V AC / 346–415V AC |
| Output Voltage | 230V AC |
| Max Power Rating | 16.6 kW |
| Input Current | 30A |
| Monitoring Type | Monitored (Outlet-Level) |
| Remote Management | SNMP (v1/v2c/v3), HTTPS, SSH, RADIUS, Syslog, etc. |
| Network Port | Yes (RJ-45) |
| Environmental Sensors | Optional |
| Daisy Chaining Support | Up to 50 devices |
| Mounting Kit Included | Yes |
| Compliancy | TAA Compliant, Environmentally Friendly |
| Warranty | 5-Year Limited Warranty |
| Shipping Weight | 22 lbs |
| Country of Origin | United States |
