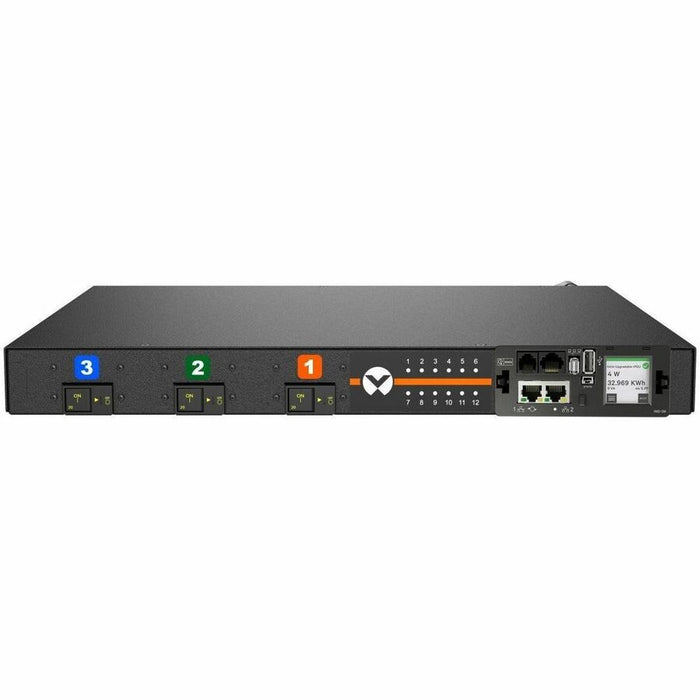

Vertiv VP7N31A3 Switched rPDU, 30A 208V, 12x C13/C19, Horizontal
by Vertiv
The Vertiv VP7N31A3 PowerIT™ Switched rPDU delivers advanced outlet-level monitoring and remote power management. Designed for high-density IT environments, this 30A, 208V horizontal rackmount unit features 12 combination C13/C19 outlets, dual Ethernet ports, and daisy-chain capability for up to 40 rPDUs. It supports remote environmental monitoring, outlet switching, and advanced power analytics to optimize uptime and prevent downtime. Upgradeable with IMD modules, it's ideal for evolving infrastructure.
| Specification | Details |
|---|---|
| Model Number | VP7N31A3 |
| Mounting Orientation | 19" Horizontal Rackmount |
| Input Voltage | 208V (Delta) |
| Current Rating | 30A, 3-Phase DELTA |
| Power Capacity | 8.6kW |

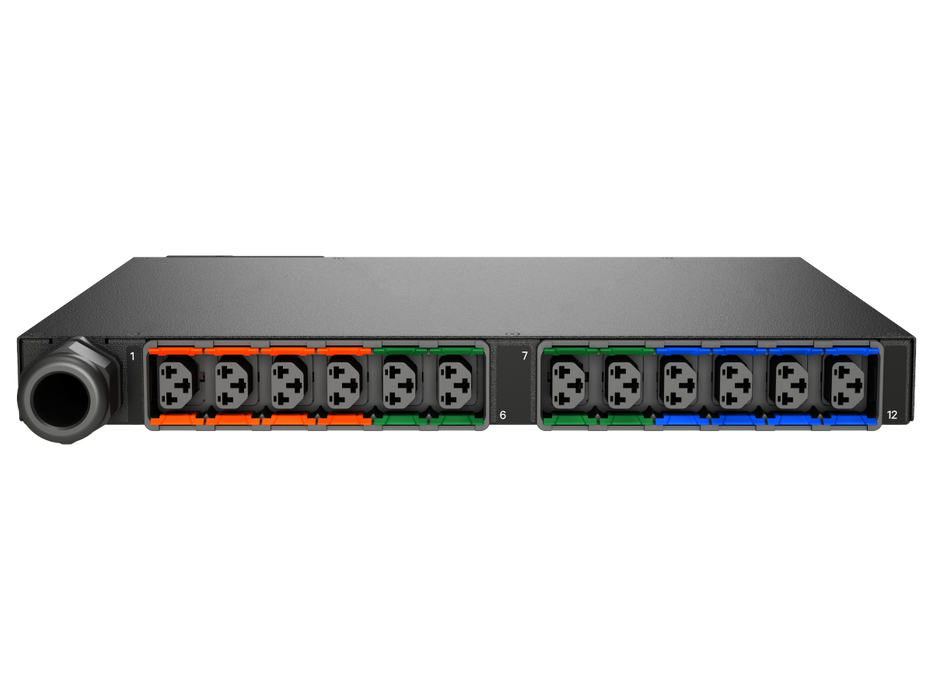

| Receptacles | 12 x Combination C13/C19 |
| Plug Type | NEMA L15-30P Twistlock |
| Monitoring | Input, Outlet, Circuit/Breaker, Environmental (with optional sensors) |
| Remote Power Management | Switched outlets with optional sequencing and delays |
| Network Connectivity | Dual 10/100/1000Mbps Ethernet |
| Protocols Supported | SNMP (v1/v2c/v3), Modbus TCP, HTTPS, SSH, Syslog, etc. |
| Environmental Monitoring | RJ sensor port (supports up to 16 sensors) |
| Local Display | LCD touchscreen with auto-orientation |
| Indicators | 12 LED indicators |
| Chassis Dimensions (H x W x D) | 1.72 x 17 x 12 in (44 x 432 x 305 mm) |
| Power Cable | 10 ft (3 m), 10/4 gauge |
| Overcurrent Protection | (3) 20A Double Pole Magnetic Breakers (10kAIC) |
| Finish | Black Powder Coat |
| Compliance | UL 62368-1, FCC Part 15 Class A, RoHS, TAA, Buy American Act COTS |
| Operating Temperature | Up to 60°C (140°F) |
| Country of Origin | USA |
| Warranty | 5-year limited (if registered within 120 days), otherwise 3-year |
