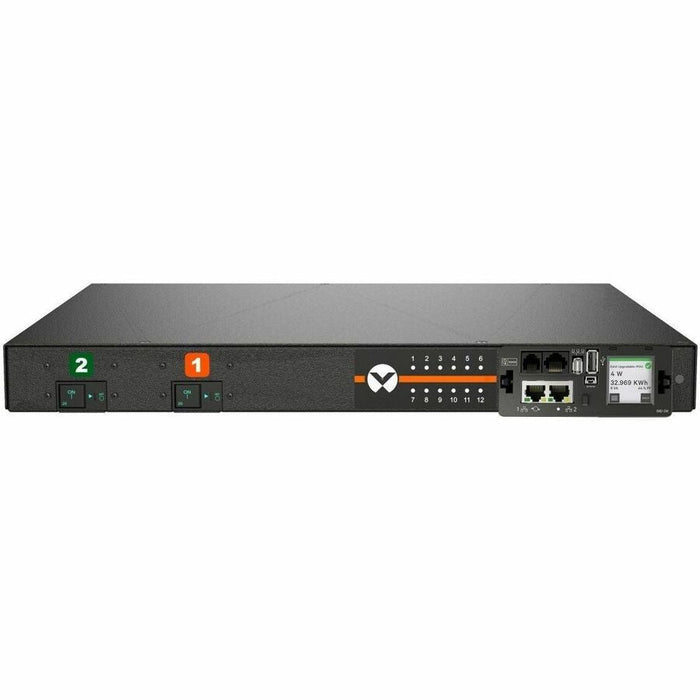

Vertiv VP7N31A0 Switched rPDU, 30A 120V, 12x5-20R, L5-30P, Horizontal
by Vertiv
The Vertiv VP7N31A0 is a switched outlet-level monitored rPDU offering intelligent power distribution for critical IT environments. Designed with 12 NEMA 5-20R outlets and a 30A, 120V input via a 10ft L5-30P cord, this horizontal 19-inch unit provides individual outlet control, input/output monitoring, and remote management via Ethernet. With upgradeable IMD, dual-network ports, circuit-level monitoring, and support for environmental sensors, it’s ideal for maximizing uptime and energy efficiency.
| Specification | Details |
|---|---|
| Model | VP7N31A0 |
| Function | Switched rPDU with Outlet-Level Monitoring |
| Input Voltage | 100–120V |
| Input Current | 30A |
| Power Capacity | 2.8kW |
| Frequency | 50/60Hz |

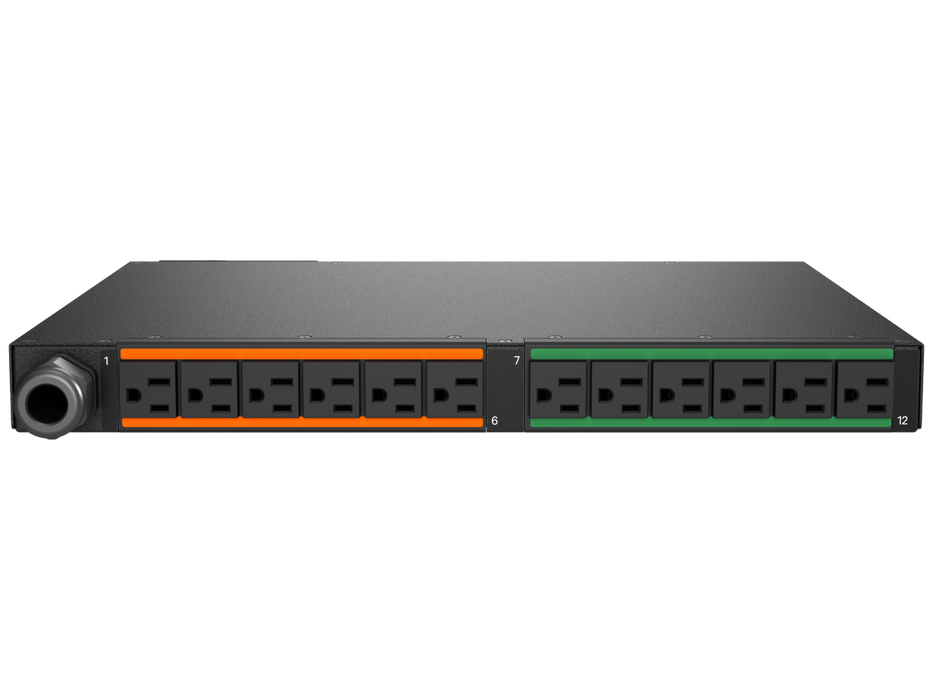

| Outlets | 12 × NEMA 5-20R (6 per breaker) |
| Input Plug | NEMA L5-30P (10ft / 3m cord) |
| Form Factor | Horizontal, 19in / 483mm Rackmount |
| Monitoring | Input & Outlet (kWh, W, VA, PF, V, A) |
| Breaker Configuration | 2 × 20A Single Pole Magnetic (10kAIC) |
| Switching | Individual Outlet Switching with Sequencing |
| Environmental Sensors | Optional (RJ port supports up to 16 sensors) |
| Display | Local LCD Touchscreen with Auto Orientation |
| Network Ports | Dual 10/100/1000 Mbps Ethernet |
| Network Protocols | SNMP, Modbus TCP, DHCP, HTTPS, SSH, etc. |
| Construction | Black Powder-Coated Steel |
| Dimensions (HxWxD) | 1.72 x 17 x 12 in / 44 x 432 x 305 mm |
| Weight | 12 lbs / 5.44 kg |
| Certifications | UL & c-UL 62368-1, RoHS, FCC Class A |
| Operating Temperature | Up to 60°C / 140°F |
| Country of Origin | USA (TAA & BAA COTS Compliant) |
| Warranty | 5 years with registration (3 years standard) |
