Vertiv VP7N32A3 Switched rPDU, 30A 208V DELTA, 24 C13/C19, Horizontal
by Vertiv
The Vertiv VP7N32A3 is a switched, outlet-level monitored rack PDU (rPDU) designed for reliable power distribution in high-density IT environments. With 30A 208V DELTA input, this horizontal 2U unit features 24 combination C13/C19 outlets, robust environmental monitoring capability, individual outlet switching, and remote network access for granular control and visibility. Built with Vertiv’s Upgradeable Monitoring Technology and fault-tolerant daisy chaining, this unit ensures maximum uptime, remote power management, and scalable growth.
| Specification | Details |
|---|---|
| Part Number | VP7N32A3 |
| Form Factor | Horizontal, 2U, 19-inch Rack-Mount |
| Power Capacity | 30A, 208V DELTA, 8.6kW |
| Input Plug Type | NEMA L15-30P Twistlock |

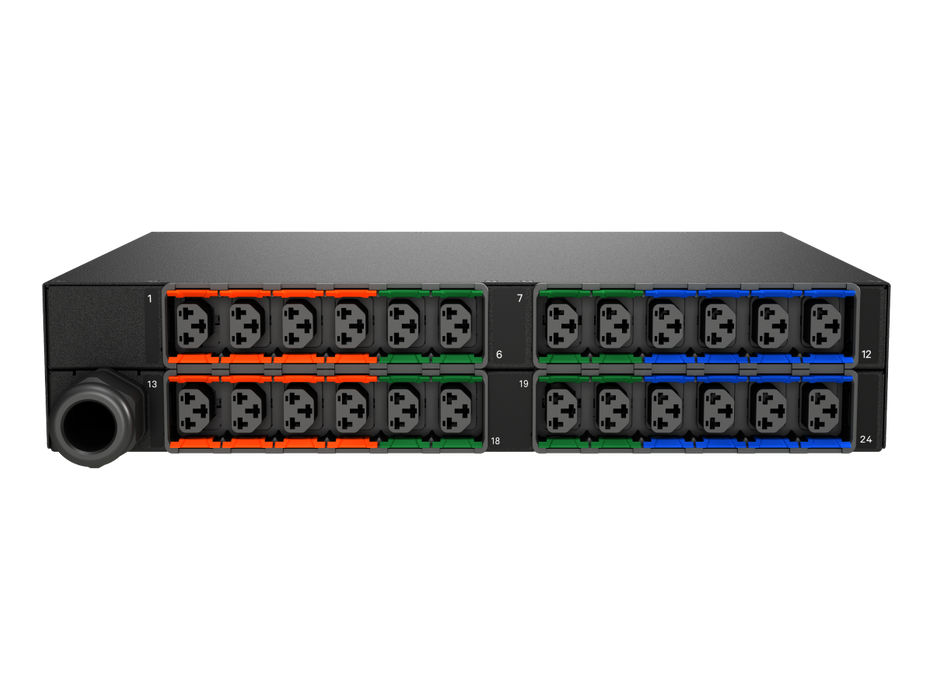

| Output Receptacles | 24 x Combination C13/C19 |
| Breaker Configuration | 3 x 20A Double Pole Magnetic Breakers (10kAIC) |
| Outlet Monitoring | Per Outlet: kWh, W, VA, PF, V, A |
| Input Monitoring | Unit, Phase & Line Level: kWh, W, VA, PF, V, A |
| Remote Management | Outlet Switching with Sequencing/Delays |

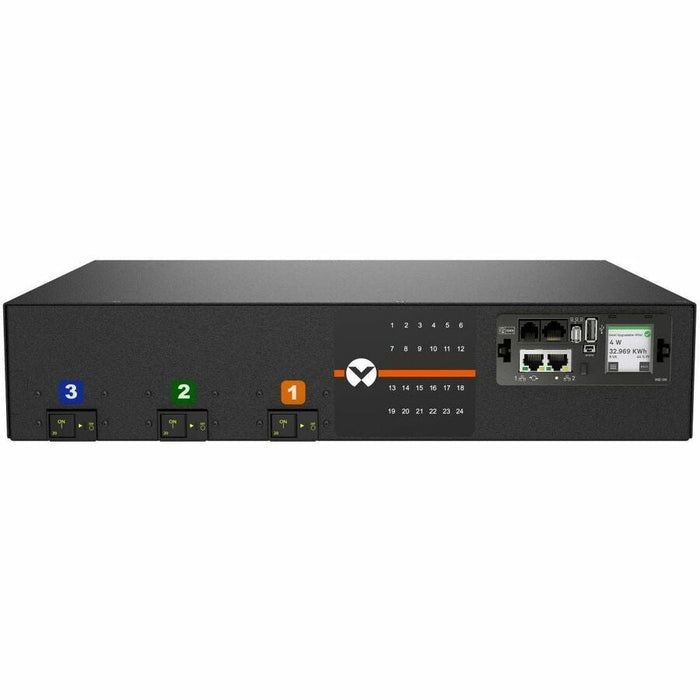

| Display | LCD Auto-Oriented Touchscreen |
| Indicators | 24 x LEDs |
| Network Protocols | DHCP, HTTP/S, SNMP (v1/2c/3), SSH, Modbus TCP, RADIUS, TACACS+, etc. |
| Connectivity | Dual 10/100/1000 Ethernet, RS232, USB |
| Environmental Sensors | Optional (supports up to 16 sensors) |
| Daisy Chain Support | Up to 40 rPDUs with RSTP |
| Construction | Heavy Steel, Black Powder Coat |
| Dimensions (HxWxD) | 3.39 x 17 x 12 in (87 x 432 x 305 mm) |
| Weight | 20 lbs (9.07 kg) |
| Certifications | UL & c-UL 62368-1, FCC Part 15 Class A, RoHS |
| Compliance | TAA, Buy American Act (BAA), COTS |
| Warranty | 5-year (if registered within 120 days), otherwise 3-year |
