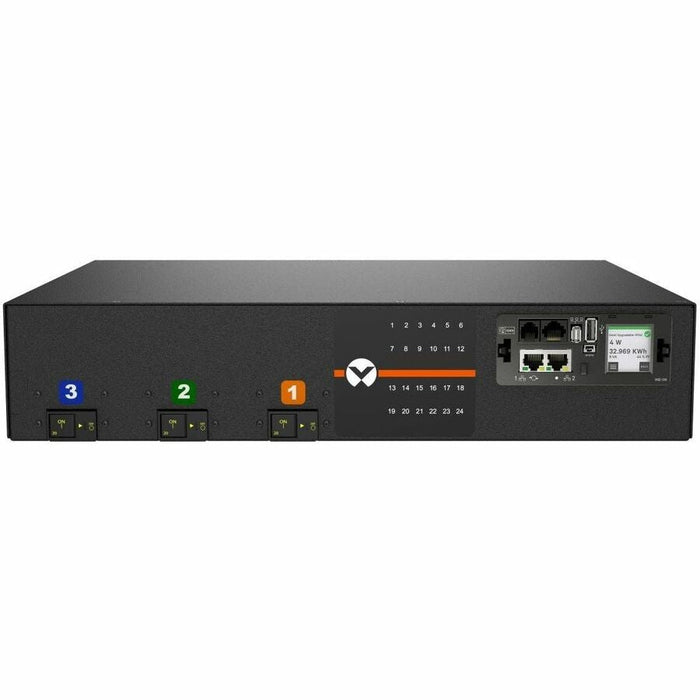

Vertiv VP7N32A2 Switched rPDU, 30A 120/208V WYE, (24) C13/C19, Horizontal
by Vertiv
The Vertiv VP7N32A2 is a switched, outlet-level monitored rack power distribution unit (rPDU) designed for high-availability IT environments. With 30A, 120/208V WYE input, this horizontal 2U rPDU offers (24) combination C13/C19 outlets and a 10ft power cord with L21-30P plug. Featuring hot-swappable monitoring modules, remote outlet switching, energy usage tracking, and optional environmental sensors, it empowers data centers with advanced control, real-time visibility, and fault-tolerant daisy chaining for up to 40 units.
| Attribute | Details |
|---|---|
| Part Number | VP7N32A2 |
| Input Voltage & Current | 120/208V WYE, 30A, 3-Phase |
| Power Capacity | 8.6kW |
| Form Factor | Horizontal, 2U, 19in mountable |

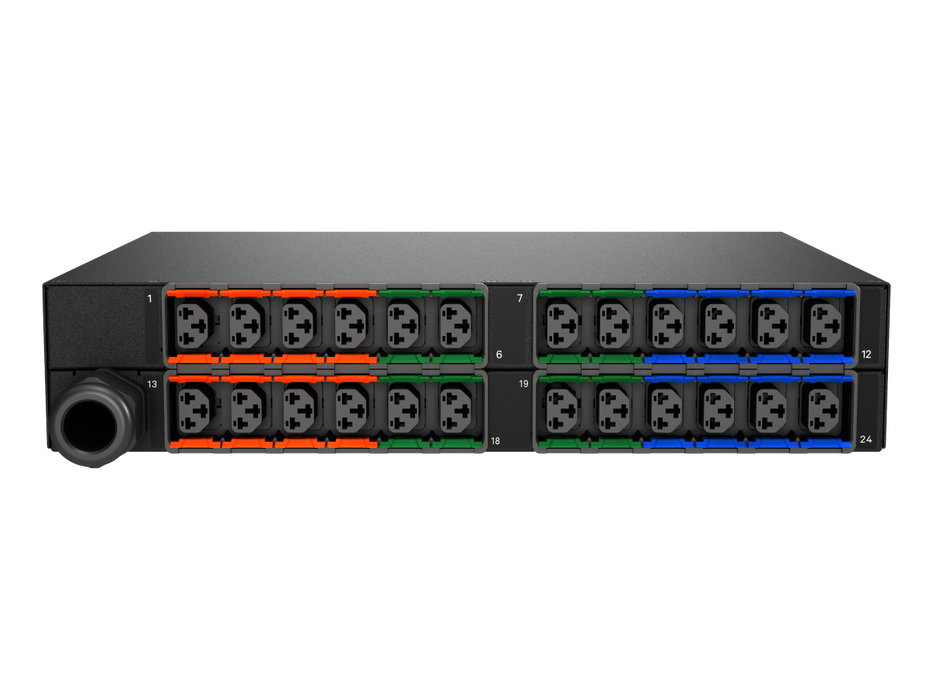

| Outlets | 24 x Combination C13/C19 (Banks of 6) |
| Input Plug Type | NEMA L21-30P Twistlock |
| Monitoring Type | Switched, Outlet-Level, Circuit & Breaker Current |
| Display | LCD Touchscreen, Auto-oriented |
| Environmental Sensors | Optional (Supports up to 16 sensors via RJ connection jack) |
| Network Connectivity | Dual 10/100/1000Mbps Ethernet; Daisy Chain up to 40 rPDUs |
| Supported Protocols | SNMP v1/v2c/v3, HTTP/HTTPS, SSH, RADIUS, TACACS+, Modbus TCP, Syslog, etc. |
| Compliance | ANSI C12.1, IEC 62053-21, UL 62368-1, RoHS, FCC Part 15 Class A |
| Operating Temperature | Max 60°C (140°F) |
| Enclosure Finish | Black Powder-Coated Heavy Steel |
| Dimensions (HxWxD) | 3.39in x 17in x 12in (87mm x 432mm x 305mm) |
| Weight | 20 lbs (9.07 kg) |
| Warranty | 5 years (with registration), 3 years otherwise |
| Country of Origin | USA – TAA and Buy American Act Compliant |
