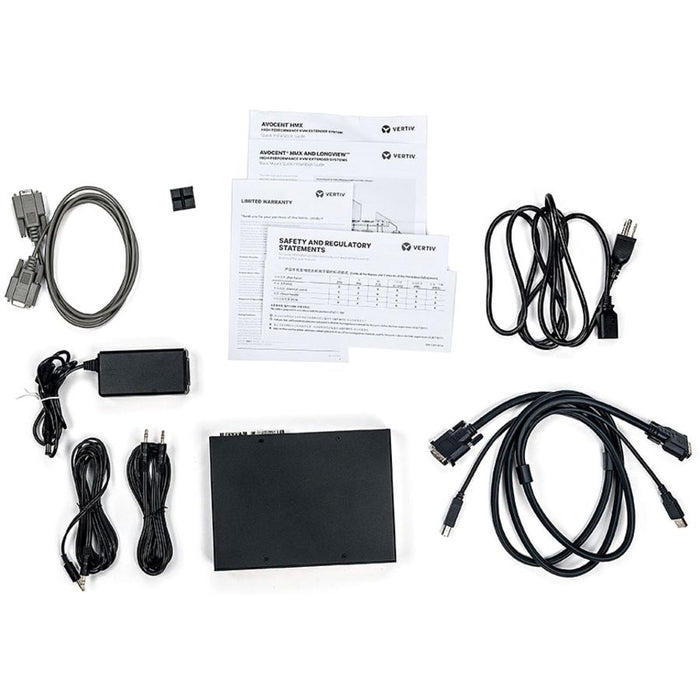

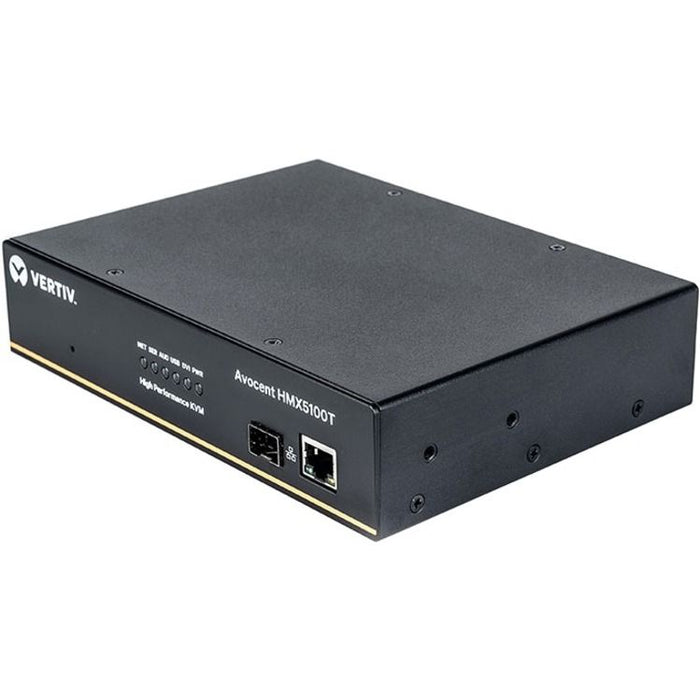

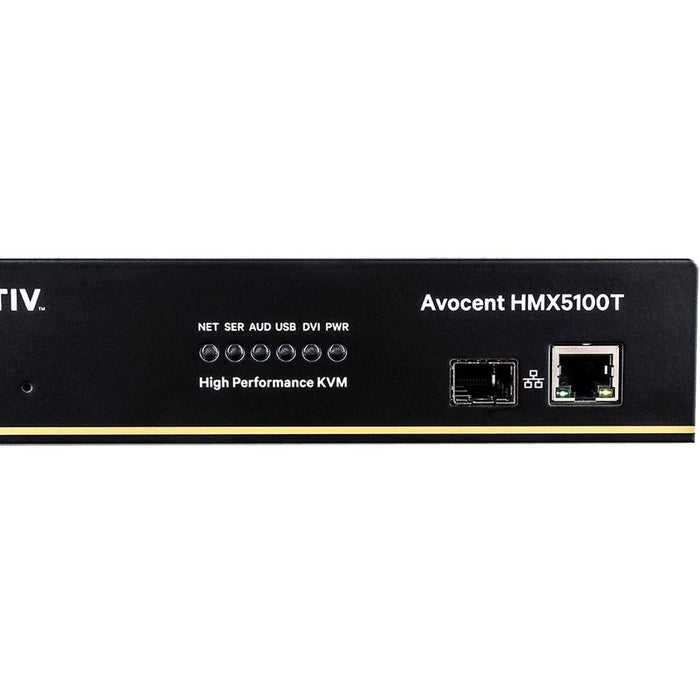

Vertiv Avocent HMX5100T High Performance KVM Extender Transmitter | DVI | USB | IP-Based (HMX5100T-001)
by Vertiv
The Vertiv Avocent HMX5100T is a high-performance KVM extender transmitter designed for demanding environments such as control rooms, broadcast studios, and post-production facilities. This digital KVM transmitter provides seamless, real-time access to systems over a standard IP network (CATx), supporting DVI video up to 1920x1200 resolution and USB connectivity.
With a compact, rack-mountable form factor, the HMX5100T enables centralization of hardware in secure, temperature-controlled environments—helping improve system security and lifespan. It includes two RJ-45 network ports, one USB-B port, and one DVI port. TAA compliant and highly reliable, this solution offers extended connectivity up to 328 ft with support for single head video.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Avocent |
| Product Series | HMX 5000 |
| Model | HMX5100T-001 |
| Product Type | KVM Extender (Transmitter) |
| Connectivity Technology | Wired |
| KVM Technology | Digital |
| Max Video Resolution | 1920 x 1200 (WUXGA) |
| Video Interface | DVI-D |
| Network Ports | 2 x RJ-45 |
| USB Ports | 1 x USB-B |
| Audio | 1 x System Audio Output Port |
| Computers Supported | 1 |
| Max Operating Distance | 328.08 ft / 100 m |
| Form Factor | Desktop, Rack-mountable |
| Power Input | 5V DC |
| Dimensions (HxWxD) | 1.76" x 7.92" x 6" |
| Weight | 2.70 lbs |
| TAA Compliant | Yes |
| Platform Supported | PC |
| Country of Origin | United Kingdom |
| Shipping Weight | 5 lbs |
| Product Condition | New and Factory Fresh |
