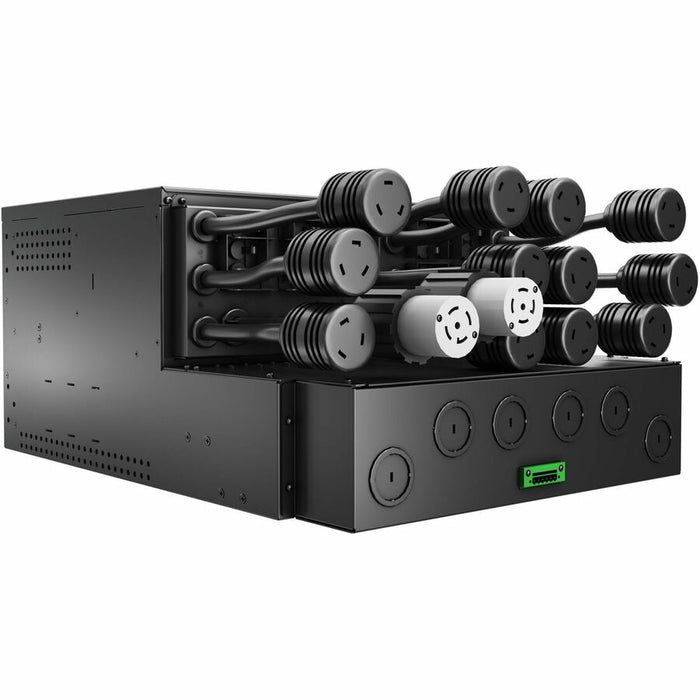

Vertiv Liebert ITA2 MBC Maintenance Bypass Cabinet 10kVA 3-Phase with Cables (ITA2-10KMBC6USL5)
by Vertiv
Ensure continuous power availability during UPS maintenance with the Vertiv Liebert ITA2 MBC (Maintenance Bypass Cabinet) for 10kVA systems. This rack/tower-mountable external bypass switch enables full UPS isolation while keeping connected equipment operational by rerouting power through an alternate path. Designed for Liebert ITA2 10kVA UPS systems, this MBC includes integrated breakers, dual distribution POD ports, mounting hardware, and a cable kit for hardwired connections. Ideal for data centers and mission-critical environments requiring high reliability and serviceability.
| Specification | Details |
|---|---|
| Product Type | Bypass Cabinet |
| Brand Name | Vertiv Liebert |
| Series | ITA2 |
| Model Number | ITA2-10KMBC6USL5 |
| Compatible UPS | Liebert ITA2 10kVA |
| Form Factor | Rack-mount / Tower |
| Rack Height | 6U |
| Input Voltage | 120V / 230V AC |
| Output Voltage | 208V, 220V, 120V, 127V AC |
| Load Capacity | 10kW |
| Receptacles | Hardwired |
| Cord Length | 36 inches (914mm) |
| Protection Types | AC Surge, Overload, Short Circuit, Harmonics, Brownout, EMI/RFI, Under Voltage, Over Temp, etc. |
| Color | Dual Tone – Black and Gray |
| Dimensions (HxWxD) | 10.3" x 16.9" x 22.4" |
| Weight | 40 lbs |
| Included Accessories | Connection Cables, Mounting Hardware |
| Warranty | 2 Years Standard (1 & 3 Year Extensions Optional) |
| Certifications | ENERGY STAR 2.0, RoHS 2, REACH, WEEE |
| Country of Origin | China |
