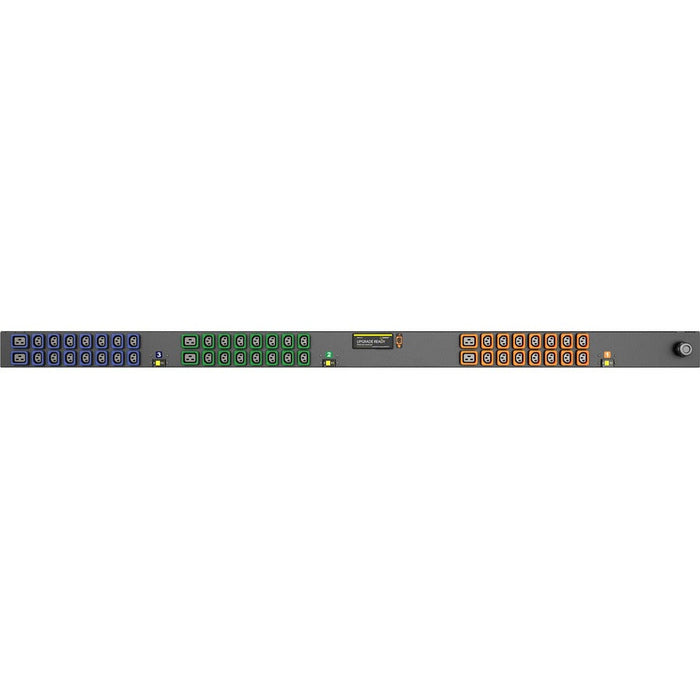

Vertiv Geist I10029L 48-Outlets Vertical Basic PDU, 2P+E (IP44), 60A, 230V, Hot-Swappable
by Vertiv
The Vertiv Geist I10029L is a robust 48-outlet vertical basic PDU designed for high-capacity rack power distribution. Featuring 42 U-Lock IEC C13 and 6 U-Lock IEC C19 outlets, it supports secure connections for critical equipment. With a 2P+E IP44 plug, 60A input current, and 9900W power capacity, it’s ideal for demanding IT environments. The unit is upgradeable via Geist’s hot-swappable Interchangeable Monitoring Device (IMD), allowing for future conversion to metered or monitored functionality without downtime. Built to mount vertically in standard racks, the I10029L combines reliability, flexibility, and expandability in one efficient power distribution solution.
| Specification | Details |
|---|---|
| Brand | Geist |
| Manufacturer | Vertiv |
| Model | MN01X9W1-48MI18-6PS6B0A10-S |
| Part Number | I10029L |
| PDU Type | Basic |
| Phase | Three Phase |
| Input Plug | 2P+E (IP44) |
| Input Current | 60 A |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Power Capacity | 9900 W |
| Outlets | 42 x U-Lock IEC 60320 C136 x U-Lock IEC 60320 C19 |
| Form Factor | Vertical Rack-mountable |
| Dimensions (WxDxL) | 3.8" x 3.4" x 72" |
| Mounting Hardware | Vertical Mounting Bracket Kit (included) |
| Protection | Overcurrent Protection |
| RoHS Compliant | Yes |
| Environmentally Friendly | Yes |
| Warranty | 5-Year Limited Warranty |
| Product Condition | New and Factory Fresh |
| Shipping Weight | 1 lb |
| Country of Origin | United States |
