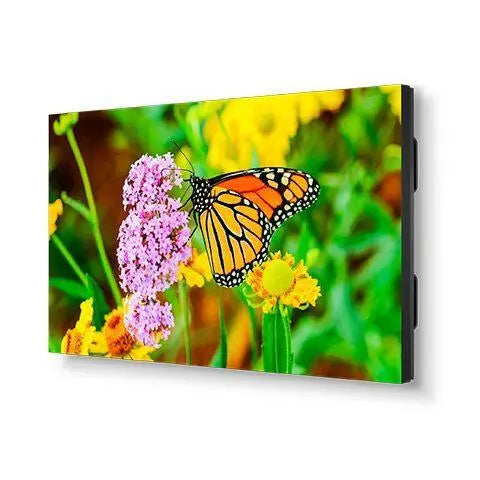

NEC UN552S-TMX9P | 55" LED Backlit 0.88mm Ultra-Narrow Bezel 3x3 Video Wall Bundle
-
Bundled solution with everything required for a 3x3 video wall makes configuration and installation easy
-
Pull-out mount allows for full-service capabilities and 6-axis adjustment for perfect alignment
-
SpectraView Engine exclusive color processing allows for an unparalleled level of color control, uniformity, accuracy and stability
-
700cd/m2 panel brightness combined with full HD resolution will capture the attention of the audience
Display
| Panel Technology |
S-IPS |
Viewable Image Size |
55 " |
| Aspect Ratio |
16:9 |
Native Resolution |
1920x1080 |
| Pixel Pitch |
0.63 mm |
Pixels Per Inch |
40 @ native resolution |
| Backlight Type |
LED Direct-lit |
Brightness (maximum) |
700 cd/m2
|
| Contrast Ratio (typical) |
1100:1 (without local dimming) |
Viewing Angle (typical) |
178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 |
| Response Time (Gray to Gray) |
8 ms |
Refresh Rate |
60Hz |
| Active Screen Area |
47.6 x 26.8 in. / 1209.63 x 680.34mm |
Orientation |
Landscape/Portrait |
| Displayable Colors |
More than 1.07 billion |
|
Synchronization Range
| Horizontal (Analog/Digital) |
Analog: 15.625/15.734/~31.5-~91.1 kHz, Digital: ~25.0 - ~91.1-~134.0KHz |
|
Input Signal
| Video |
Analog RGB 0.7 Vp-p/75 Ohms , Digital TMDS / DisplayPort |
Sync |
Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive) |
Calibration
| Factory Calibration |
RGB, White Point, Intensity, Gamma, Uniformity |
Sensor Calibration (through USB) |
PC-less calibration with USB Sensor MDSVSENSOR3, White Copy available post self-calibration |
| Calibration with Software |
RGB, White Point, Intensity, Gamma, Corner Uniformity, Update Uniformity Correction, Update Factory Calibration |
Calibration Software |
NEC Display Wall Calibrator |
Signal Compatibility/Connectivity
| PC Signal Compatibility |
Yes |
Macintosh Signal Compatibility |
Yes |
| Video |
Analog RGB 0.7 Vp-p/75 Ohms , Digital TMDS / DisplayPort |
Sync |
Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive) |
Input Terminals
Analog:
VGA 15-pin D-sub
Digital:
DisplayPort 1.1/1.2 x2, HDMI 1.4/2.0 x2, DVI-D
Audio:
Audio Mini-Jack x2, DisplayPort Audio, HDMI Audio
External Control:
RS-232C, LAN (100Mb), 3.5mm Mini-Jack (IR Remote)
Data:
microSD (Media Player), USB 2.0 (Media Player, USB (Service), USB Type-B (Upstream), USB x 2 (Both for Compute Module, 1 x 5V/2A Powered)
|
Output Terminals
Digital:
DisplayPort (Output DisplayPort1 and OPTION (DP)), HDMI (Outputs HDMI1, DVI and OPTION (TMDS))
Audio:
3.5mm Mini-Jack, External Speaker Jack (2)
External Control:
LAN (100Mb)
|
Power Consumption (typical)
| On |
165W |
ECO Mode Standby |
<0.5W |
| Power Consumption (max) |
255W (Brightness Max), 420W (All Functions Maxed) |
Input Current |
4.7A @ 100V, 1.9A @ 240V |
Physical Specifications
| Bezel Width (Left/Right, Top/Bottom) |
0.02 in./0.02 in., 0.02 in./0.02 in. : 0.44 mm/0.44 mm, 0.44 mm/0.44 mm |
Dimensions (WxHxD)
Without stand:
47.7 x 26.8 x 3.9 in. / 1210.5 x 681.2 x 98.6 mm
Shipping:
56.5 x 34.4 x 12.5 in. / 1436.0 x 873.0 x 317.0mm
|
Weight
Net Weight (with stand):
56.9 lbs. / 25.8kg
Shipping:
81.6 lbs. / 37.0kg
|
VESA Hole Configuration |
400 x 400mm (4-hole, M6) |
Environmental Conditions
| Operating Temperature |
41-104°F / 5-40°C |
Operating Humidity |
20-80% |
| Operating Altitude |
9843 ft. / 3000m |
Storage Temperature |
-4-140°F / -20-60°C |
| Storage Humidity |
10-90% |
Storage Altitude |
40,000 ft. / 12,192m |
Limited Warranty (parts & labor)
Additional Features
- Advanced thermal capabilities
- Ethernet Control and Communication
- RS-232 Control and Communication
- Landscape/portrait capable
- Carbon footprint meter
- SpectraView Engine Capabilities
- Scheduler (w/ Real-Time Clock and Holiday mode)
- Self Calibration to external color sensor
- White Copy Function
- Screen saver function
- 4K UHD Daisy Chain capabilities
- Optional human sensor

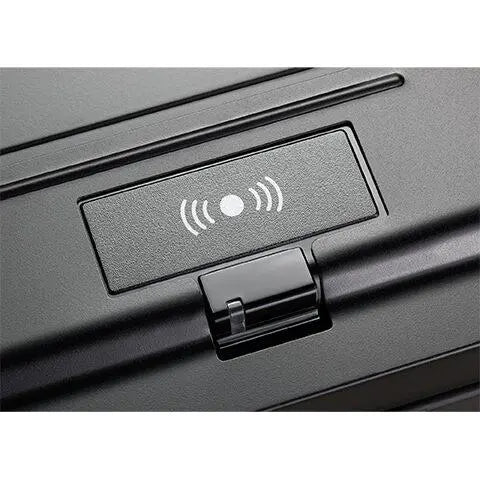

- Intelligent Wireless Data (Near Field Communications)
- Raspberry Pi Compute Module Slot
- Expanded daisy chain (DP 1.2/HDMI 2.0)
- 6-axis color adjustment
- Metal rear cabinet
- Handles
- Variable picture modes
- Advanced video settings (Noise Reduction, Adaptive Contrast)
- Input labeling
- Backlight adjust
- Frame Comp Capabilities
- Internal Media Player via microSD or USB
- HDR Emulation
- Aspect ratio control
- LED direct-lit backlighting
- OPS/Expansion slot
|
|
Accessories
| Optional |
- Display Wall Calibrator Kit (KT-LFD-CC2)
- Human/IR Sensor Accessory (KT-RC3)
- Table Top Stand (ST-5220)
|
