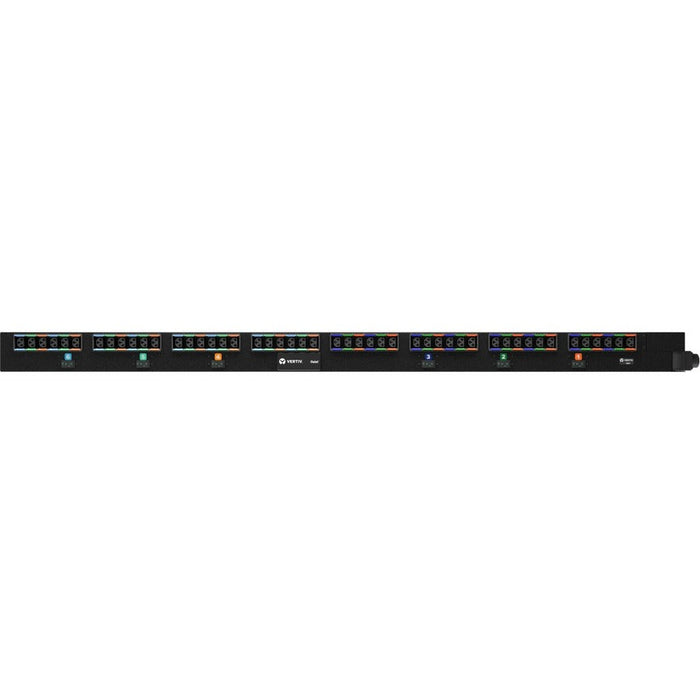

Vertiv Geist rPDU DU00X5B1-48CF17-2S02A9K00-S-A | 48-Outlets, Universal Input, 22kW PDU
by Vertiv
The Vertiv Geist rPDU DU00X5B1-48CF17-2S02A9K00-S-A (Part No. U1079) is a Basic rack PDU designed for dependable and space-saving power distribution to mission-critical IT equipment in racks or cabinets. Featuring 48 combination C13/C19 outlets and a universal input, this vertical 0U PDU supports both 230V and 415V AC, with a maximum 22kW power capacity. Ideal for high-density environments, this unit comes rack and cabinet mountable, with built-in overcurrent protection and a 5-year limited warranty when registered.
| Specification | Details |
|---|---|
| Brand | Vertiv Geist |
| Series | rPDU |
| Model Number | DU00X5B1-48CF17-2S02A9K00-S-A |
| Part Number | U1079 |
| PDU Type | Basic |
| Input Type | Universal Input |
| Input Voltage | 230V AC, 415V AC |
| Input Current | 32A |
| Power Rating | 22kW |
| Receptacle Type | 48 x Combination C13/C19 |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable, Cabinet-mountable |
| Rack Height | 0U |
| Protection | Overcurrent Protection (Double Pole) |
| Dimensions (W x D x L) | 3.8" x 2.3" x 66.3" |
| Environmentally Friendly | Yes |
| Product Condition | New and Factory Fresh |
| Limited Warranty | 5 Years (with registration) |
| Shipping Weight | 25 lbs |
| Country of Origin | United States |
