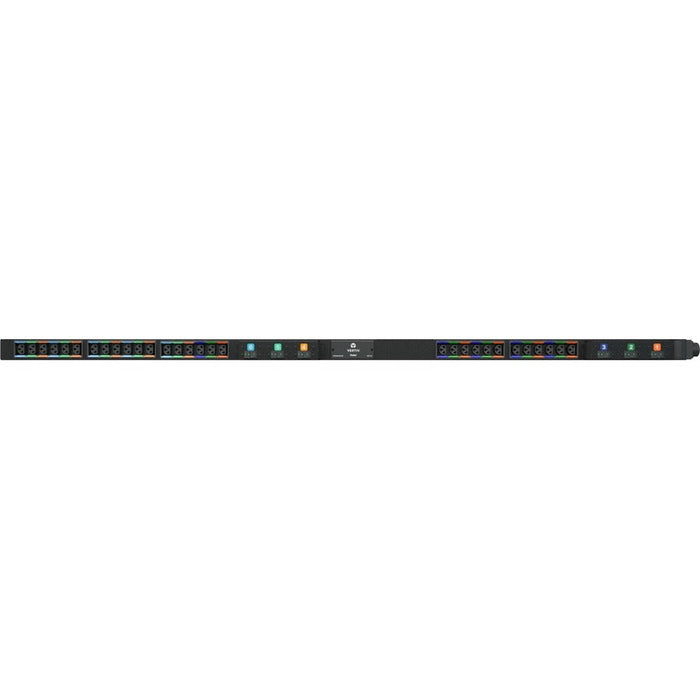

Vertiv Geist rPDU UI10028 30-Outlets Vertical Basic Upgradeable PDU (0U, 22kW)
The Vertiv Geist rPDU UI10028 is a Basic Upgradeable Rack PDU designed for reliable and cost-effective power distribution in mission-critical environments. With 30 combination C13/C19 outlets and a universal input, this 0U vertical PDU supports both single and three-phase configurations up to 63A and 22kW power capacity.
The unit features a compact vertical 0U design ideal for space-constrained rack installations and includes rack and cabinet mount options. Built on Vertiv’s upgradeable platform, it supports future upgrades to metered or monitored capabilities via Interchangeable Monitoring Devices (IMDs). Overcurrent protection is included to safeguard connected equipment. Every unit is 100% factory tested for quality and reliability.
Ideal for scalable data center applications that require flexible, upgrade-ready infrastructure.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Vertiv Geist |
| Part Number | UI10028 |
| Product Series | rPDU |
| Product Model | DU01X4B1-30CF17-2S02A9K00-S-A |
| PDU Type | Basic Upgradeable |
| Phase | Single Phase / Three Phase |
| Input Type | Universal Input |
| Power Capacity | 22 kW |
| Input Current | 63 A |
| Receptacles | 30 x Combination C13/C19 |
| Protection Type | Overcurrent Protection |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable, Cabinet-mountable |
| Rack Height | 0U |
| Finish | Black Powder Coat |
| Dimensions (WxDxL) | 2" x 2.5" x 66.3" |
| Shipping Weight | 21 lbs. |
| Country of Origin | United States |
| Condition | New and Factory Fresh |
