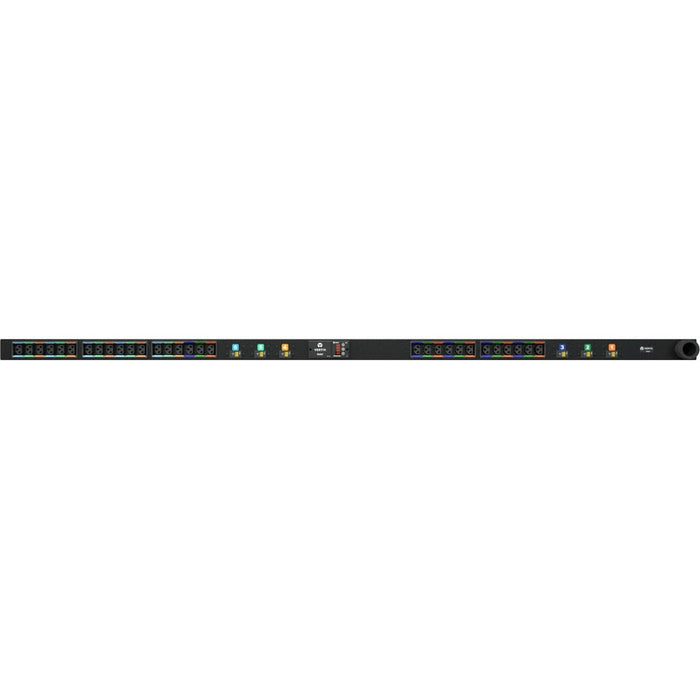

Vertiv Geist rPDU MN01DGW1-30CF18-6PS15D0A10-S-A | 30-Outlets Metered PDU | 3P+E IP67 | 230V | Vertical 0U
Ensure reliable and intelligent power distribution with the Vertiv Geist MN01DGW1-30CF18-6PS15D0A10-S-A Metered Rack PDU (rPDU). Designed for high-density IT environments, this unit delivers real-time local power usage via an integrated LED display, helping you avoid overloads and optimize uptime. With hot-swappable upgrade capability, this rPDU can be transformed into a monitored unit using an Interchangeable Monitoring Device (IMD).
Key Features:
-
Metered PDU with LED display for local power consumption monitoring
-
30 x Combination C13/C19 outlets support a wide range of IT equipment
-
3P+E (IP67) industrial-grade plug for secure high-power connections
-
Hot-swappable IMD upgrade path for future-proof monitoring
-
0U vertical form factor saves critical rack space
-
TAA Compliant and RoHS-certified for global deployment
Ideal for server rooms and data centers that demand reliability, visibility, and flexibility in power management.
| Category | Details |
|---|---|
| Manufacturer | Vertiv |
| Part Number | I10493 |
| Series / Model | Geist rPDU / MN01DGW1-30CF18-6PS15D0A10-S-A |
| PDU Type | Metered |
| Phase | Three Phase |
| Input Voltage | 230V AC (Range: 200V - 240V) |
| Output Voltage | 208V AC |
| Input Current | 60A |
| Power Capacity | 17.2 kW |
| Plug Type | 3P+E (IP67) |
| Receptacles | 30 x Combination C13/C19 |
| Form Factor | Vertical |
| Rack Height | 0U |
| Mounting | Rack-mountable, Cabinet-mountable |
| Finish / Color | Black Powder Coat |
| Dimensions (WxDxL) | 2.1" x 3" x 70" |
| TAA Compliant | Yes |
| Environmental Certs | RoHS, Environmentally Friendly |
| Warranty | 5-Year Limited Warranty |
| Shipping Weight | 32 lbs |
| Country of Origin | United States |
