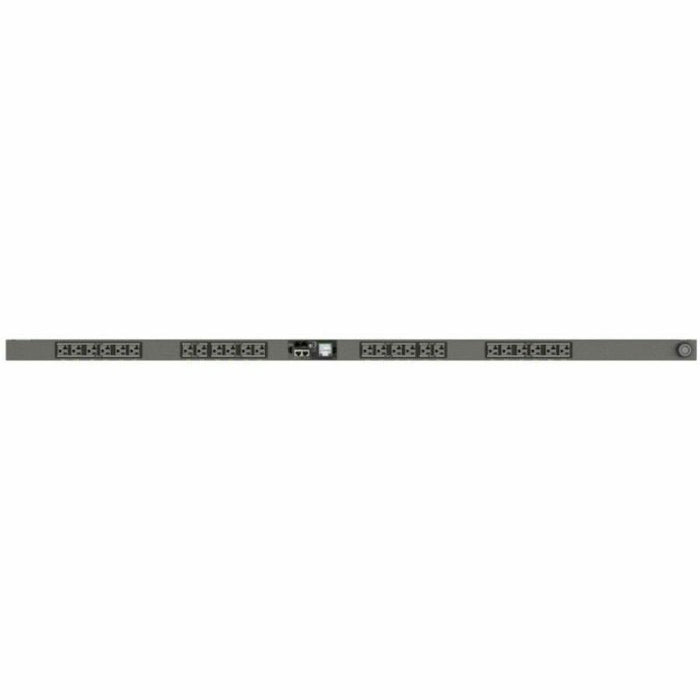

Vertiv VP6N20A3 Monitored rPDU, 20A 120V, (24) NEMA 5-20R, Vertical
by Vertiv
The Vertiv VP6N20A3 is a high-performance, monitored rPDU designed to deliver reliable power distribution and real-time outlet-level power usage visibility for mission-critical IT environments. This vertical unit supports 20A at 120V with 1.9kW capacity and features 24 NEMA 5-20R outlets, a 10ft power cord with NEMA 5-20P plug, and dual Ethernet ports for daisy-chaining up to 50 devices. With environmental sensor support, an auto-orienting local display, and compliance with ANSI/IEC power accuracy standards, it enables intelligent monitoring, efficiency, and uptime in your rack infrastructure.
| Specification | Details |
|---|---|
| Model Number | VP6N20A3 |
| Form Factor | Vertical, Zero U |
| Input Voltage / Current | 100-120V / 20A |
| Power Capacity | 1.9kW |
| Plug Type | NEMA 5-20P |
| Outlets | (24) NEMA 5-20R (120V) |
| Monitoring | Outlet-level (kWh, W, VA, PF, V, A) |
| Network Connectivity | Dual Gigabit Ethernet, Daisy Chain (up to 50) |
| Protocols Supported | SNMP v1/v2c/v3, HTTPS, SSH, Modbus TCP, etc. |
| Environmental Monitoring | Optional via RJ connection (up to 16 sensors) |
| Display | Local LCD auto-orienting display |
| Dimensions (L x W x D) | 66.25 x 2 x 2.6 in / 1683 x 51 x 66 mm |
| Power Cable Length | 10ft / 3m |
| Finish | Black Powder Coat, Heavy Steel |
| Compliance | UL 62368-1, RoHS, FCC Class A, TAA/BAA |
| Operating Temp | Max 60°C / 140°F |
| Warranty | 5 years (with registration), otherwise 3 years |
