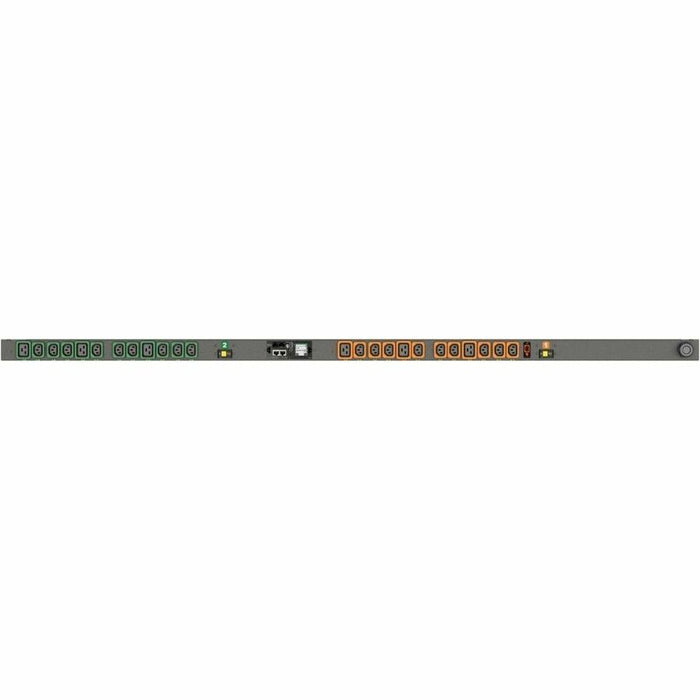

Vertiv VP6N30A7 Monitored rPDU, 30A 208V, Vertical, 24 Outlets, L6-30P
by Vertiv
The Vertiv VP6N30A7 is a high-performance Monitored rPDU with outlet-level EC monitoring, designed for critical IT environments. Featuring 30A, 208V input and a 4.9kW capacity, this vertical zero-U power distribution unit includes 18 locking IEC C13 and 6 locking IEC C19 receptacles. With real-time power usage data, environmental monitoring via optional sensors, and daisy-chain Ethernet capabilities, it ensures optimized uptime, easy deployment, and operational transparency. The 10ft L6-30P power cord and toolless mounting hardware offer flexible, reliable installation.
| Feature | Specification |
|---|---|
| Model Number | VP6N30A7 |
| Form Factor | Vertical, Zero U |
| Input Voltage | 200–240V |
| Input Current | 30A |
| Power Capacity | 4.9kW @ 208V |
| Plug Type | NEMA L6-30P Twistlock |
| Receptacles | 18 × Locking IEC C13, 6 × Locking IEC C19 |
| Monitoring | Outlet-level EC Monitoring, Circuit Breaker Monitoring |
| Breaker Protection | (2) 20A Double Pole Magnetic Breakers |
| Mounting Options | Vertical mount with 61.25" and 64.75" spacing support |
| Display | Local LCD touchscreen with auto-orientation |
| Connectivity | Dual 1GbE, RS232, USB |
| Protocols Supported | SNMP, HTTP/S, Modbus TCP, SSH, Syslog, etc. |
| Environmental Monitoring | Via optional sensors (up to 16 supported) |
| Chassis Dimensions (HxWxD) | 66.25 × 2 × 2.6 in (1683 × 51 × 66 mm) |
| Weight | 20 lbs (9.07 kg) |
| Finish | Black Powder Coat, Heavy Steel |
| Operating Temperature | Up to 60°C / 140°F |
| Certifications | UL & c-UL 62368-1, RoHS, FCC Class A |
| Warranty | 5-year (if registered within 120 days) |
| Country of Origin | USA (TAA and BAA COTS Compliant) |
