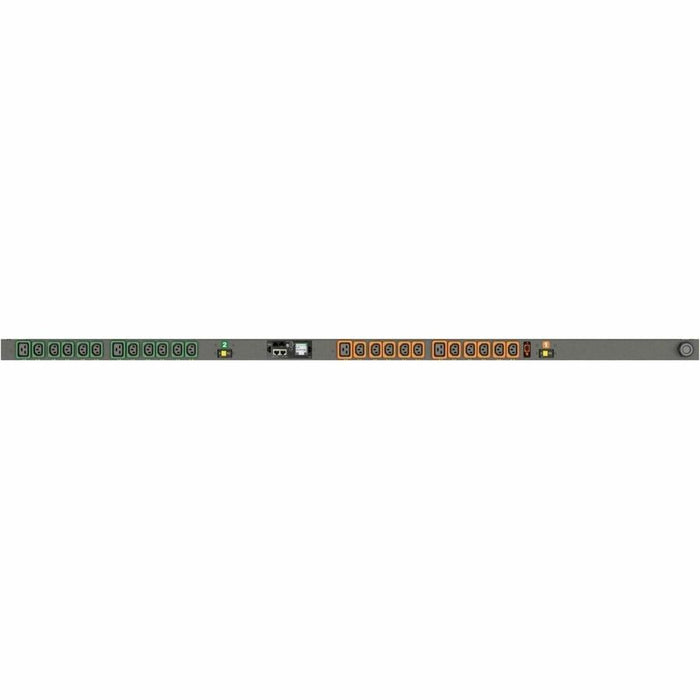

Vertiv VP6N30AU Monitored Outlet-Level rPDU, 30A, 208V, 4.9kW, Vertical
by Vertiv
The Vertiv VP6N30AU is a high-performance, monitored outlet-level vertical rack PDU (rPDU) delivering reliable 30A power distribution at 208V (4.9kW). With advanced outlet-level monitoring and support for environmental sensors, it provides remote visibility into real-time energy metrics to optimize uptime and prevent failures. This 66-inch vertical unit includes (20) IEC C13 and (4) IEC C19 locking outlets with a 10ft power cord and L6-30P plug. Equipped with daisy-chaining Ethernet, dual-network ports, local display, and tool-less mounting for seamless deployment in high-density IT environments.
| Specification | Details |
|---|---|
| Model | VP6N30AU |
| Power Rating | 30A, 208V, 4.9kW |
| Form Factor | Vertical (Zero U) |
| Dimensions (HxWxD) | 66.25 in x 2 in x 2.6 in (1683 mm x 51 mm x 66 mm) |
| Receptacles | (20) IEC C13, (4) IEC C19 (locking) |
| Plug Type | NEMA L6-30P (Twistlock) |
| Power Cord | 10 ft / 3 m, 10/3 gauge |
| Monitoring | Outlet level + circuit/breaker + input level |
| Network | Dual Gigabit Ethernet, Daisy Chain up to 50 units |
| Protocols Supported | SNMP (v1/v2c/v3), HTTP/S, SSH, SMTP, RADIUS, TACACS+, Modbus TCP, etc. |
| Local Display | High-visibility auto-oriented LCD screen |
| Indicators | 24 LEDs |
| Overcurrent Protection | (2) 20A Double Pole Magnetic Breakers (5kAIC) |
| Environmental Monitoring | Optional sensors (up to 16), 1 RJ sensor port |
| Mounting | Tool-less, vertical bracket kit included (61.25in & 64.75in spacing) |
| Material / Finish | Heavy-duty steel, black powder coat |
| Operating Temperature | Up to 60°C / 140°F |
| Compliance | UL 62368-1, RoHS, FCC Class A, TAA, BAA COTS |
| Warranty | 5 years (with registration), otherwise 3 years |
| Country of Origin | USA |
