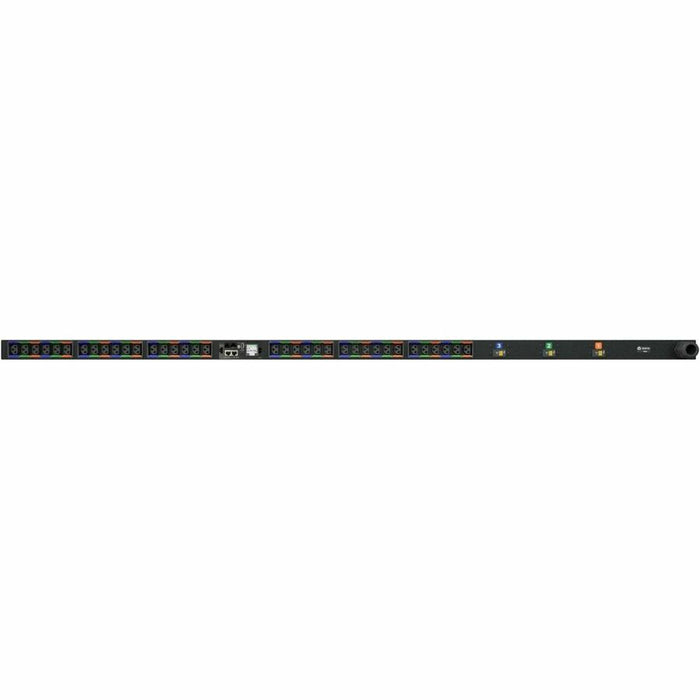

Vertiv PowerIT VP4N30AJ Monitored Vertical rPDU, 30A 208V, 8.6kW, 36 C13/C19
by Vertiv
The Vertiv PowerIT VP4N30AJ is a high-performance monitored vertical rack power distribution unit (rPDU) designed for reliable, real-time power and environmental monitoring in mission-critical environments. Featuring a 30A, 208V Delta input and 8.6kW load capacity, it provides (36) combination C13/C19 outlets and advanced unit-level EC monitoring. With dual Ethernet ports, daisy-chaining support, high-accuracy power/circuit monitoring, and compatibility with environmental sensors, this rPDU is ideal for data centers requiring high uptime and energy efficiency.
| Specification | Details |
|---|---|
| Model | VP4N30AJ |
| Power Capacity | 30A, 208V Delta, 8.6kW |
| Form Factor | Vertical, Zero U |
| Receptacles | 36 Combination C13/C19 |
| Plug Type | NEMA L15-30P (Twistlock) |
| Mounting | Vertical Mount, Toolless; 70in (1778mm) H |
| Monitoring | Unit-level EC Monitored, Input/Phase, Circuit/Breaker Current |
| Network Protocols | SNMP v1/v2c/v3, Modbus TCP, HTTPS, RADIUS, TACACS+, IPv6 & more |
| Display | Auto-orienting LCD Touchscreen |
| Sensors Support | 1 RJ port for up to 16 optional sensors |
| Environmental Monitoring | Yes, via optional sensors |
| Daisy Chain Capability | Up to 50 rPDUs per IP with RSTP redundancy |
| Circuit Protection | (3) 20A Double Pole Magnetic Breakers (22kAIC Rated) |
| Finish | Black Powder Coat |
| Certifications | UL 62368-1, RoHS, FCC Part 15 Class A |
| Warranty | 5 years (with registration); 3 years otherwise |
| Operating Temp | Up to 60°C / 140°F |
| Country of Origin | USA (TAA and Buy American Act COTS Compliant) |
