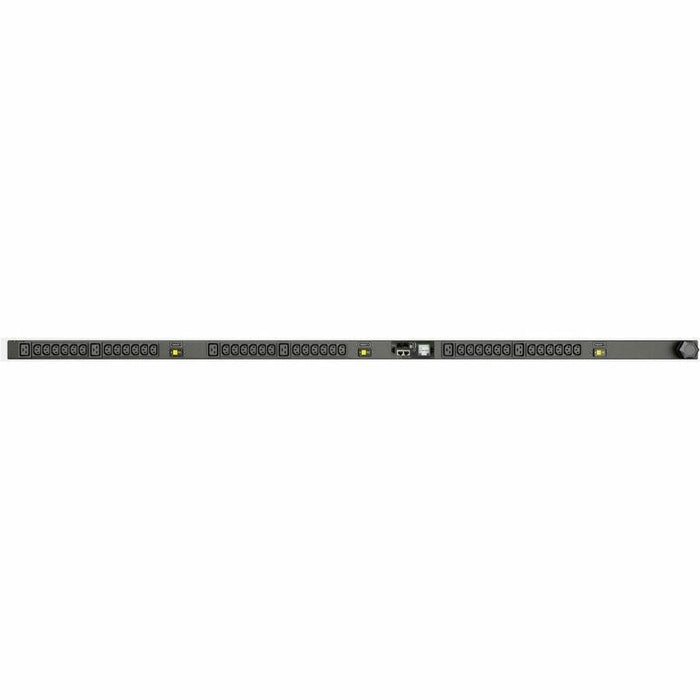

Vertiv VP4N40A3 PowerIT rPDU, 35A 208V, 42 Outlets, EC Monitored, Vertical
by Vertiv
The Vertiv™ VP4N40A3 PowerIT rPDU delivers reliable 10kW power distribution in a space-saving 72-inch vertical form factor. Equipped with 36 IEC C13 and 6 IEC C19 outlets, this EC Monitored unit provides detailed input, phase, and circuit-level power monitoring via a local touchscreen and remote Ethernet access. Designed with fault-tolerant daisy-chaining, environmental sensor support, and ANSI-compliant power accuracy, the VP4N40A3 is an ideal solution for high-density IT environments demanding uptime, insight, and efficiency.
| Feature | Details |
|---|---|
| Model Number | VP4N40A3 |
| Form Factor | 72 in / 1829 mm Vertical Rackmount |
| Input Power | 35A, 208V Delta, 3-Phase, 10.0kW |
| Plug Type | California Style 3P+E (Twistlock), 10 ft / 3m cord |
| Receptacles | 36 x IEC C13, 6 x IEC C19 |
| Overcurrent Protection | 3 x 20A Double Pole Magnetic Breakers |
| Monitoring | Input, Phase, Circuit/Breaker (LCD + Remote) |
| Environmental Monitoring | Optional sensors via RJ port (up to 16 sensors) |
| Network Connectivity | Dual 10/100/1000 Mbps Ethernet |
| Supported Protocols | SNMP, Modbus TCP, HTTPS, SSH, RADIUS, Syslog, etc. |
| Data Access | JSON API, CSV Datalog, JSON Datalog |
| Display | Local high visibility LCD touchscreen |
| Mounting Kit | Toolless, supports 61.25in and 64.75in spacing |
| Finish | Heavy steel, black powder coat |
| Certifications | UL & c-UL 62368-1, FCC Part 15 Class A, RoHS |
| Country of Origin | USA (TAA & BAA COTS Compliant) |
| Warranty | 5-year limited (if registered within 120 days), otherwise 3 years |
| Weight | 17 lbs / 7.71 kg |
| Max Operating Temp | 60°C / 140°F |
