Vertiv VP4N60A9 Monitored rPDU, 60A 208V, (36) C13 & (12) C19, Vertical
by Vertiv

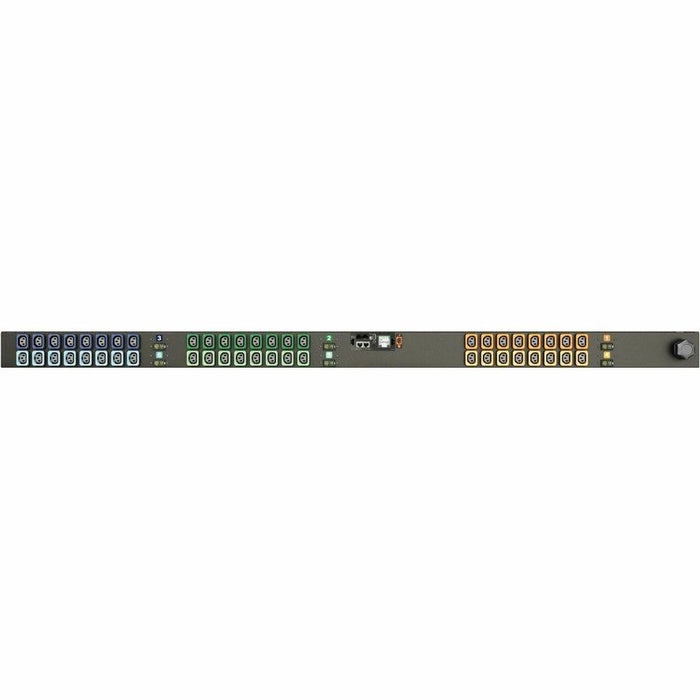

The Vertiv VP4N60A9 PowerIT rPDU delivers high-performance power distribution with intelligent unit-level monitoring to safeguard mission-critical equipment. This 72-inch vertical rPDU features 48 total outlets—36 locking IEC C13 and 12 locking IEC C19—with a 60A, 208V three-phase Delta configuration. Equipped with a high-visibility local display, environmental sensor support, and daisy-chainable Ethernet connectivity, it ensures optimal performance and uptime. The rugged black powder-coated steel design ensures long-term durability in demanding data center environments.
| Attribute | Details |
|---|---|
| Model Number | VP4N60A9 |
| Input Voltage | 208V 3-Phase Delta |
| Input Current | 60A |
| Power Capacity | 17.2 kW |
| Form Factor | Vertical (72in / 1829mm) |
| Receptacles | (36) Locking IEC C13, (12) Locking IEC C19 |
| Monitoring | Unit-level EC, circuit/breaker current, phase monitoring |
| Network Protocols | SNMP, HTTP/S, SSH, Modbus TCP, Syslog, TACACS+, etc. |
| Display | LCD touchscreen with auto-orientation |
| Plug Type | IEC 60309 3P+E, IP67 Watertight |
| Environmental Sensors | Optional via RJ connection (supports up to 16) |
| Mounting | Toolless vertical mounting (61.25" & 64.75" C2C spacing) |
| Build Material | Heavy steel, black powder-coated |
| Certifications | UL 62368-1, RoHS, FCC Part 15 Class A |
| Warranty | 5 years (with registration), otherwise 3 years |
| Origin | USA, TAA & BAA COTS compliant |
