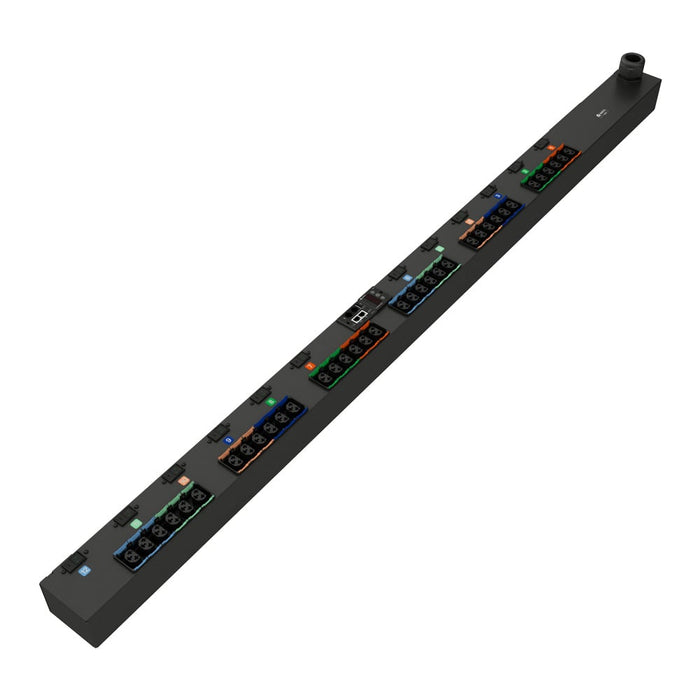

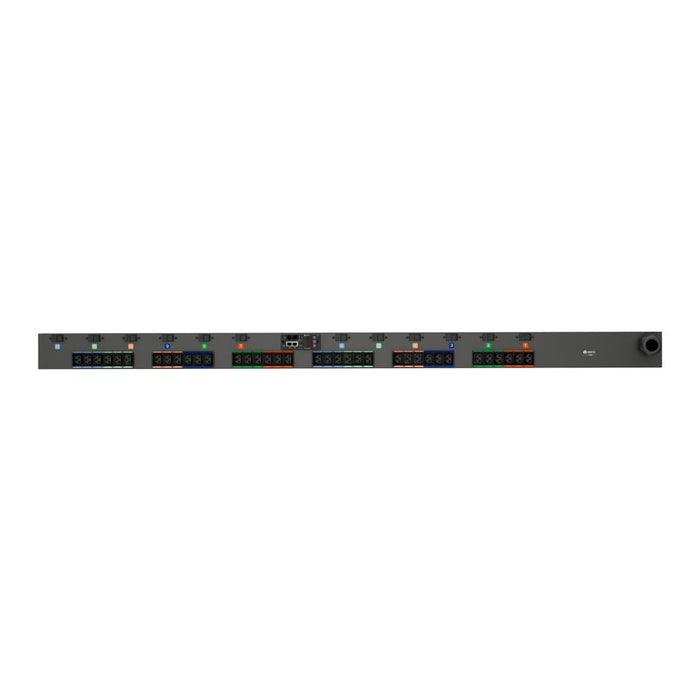

Vertiv Geist VP6N6013 Monitored rPDU | 60A | 240/415V WYE | 0U | 36x C13/C19
by Vertiv

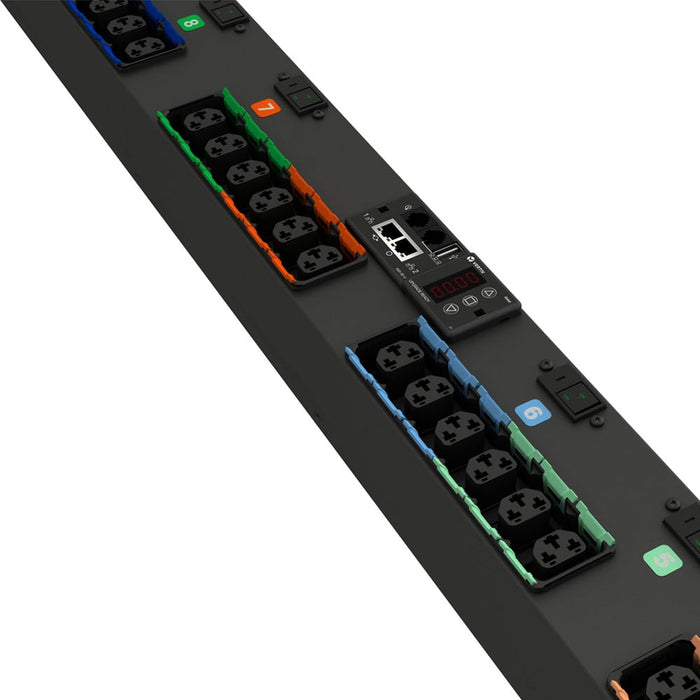

The Vertiv Geist VP6N6013 is a 0U vertical monitored rack PDU with 36 Combination C13/C19 outlets, 60A 3P+N+E plug, and 34.5kW capacity. Features dual Ethernet ports, LCD display, and hot-swappable monitoring device for advanced power monitoring and IP daisy chaining.
| Category | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Vertiv Geist |
| Model Number | VP6N6013 (MNR3EPB1-36CF13-6PS56D0A10-S) |
| Form Factor | 0U Vertical Rack-Mountable |
| PDU Type | Monitored |
| Input Plug Type | IEC 60309 60A 3P+N+E (IP67) |
| Input Voltage | 200-240V / 346-415V AC |
| Input Current | 60A |
| Output Voltage | 240V AC |
| Power Capacity | 34.5 kW |
| Receptacles | 36 x Combination C13/C19 |
| Cord Length | 10 ft (3m) |
| Monitoring | Input & Output Level Monitoring, Hot-swappable IMD |
| Network Management | Dual Ethernet, SNMP, HTTP/HTTPS, Syslog, Modbus TCP, JSON, LDAP, etc. |
| Display | Integrated LCD |
| Certifications | UL 62368-1, FCC Part 15 Class A, RoHS, TAA Compliant |
| Warranty | 5 years (with registration within 120 days), otherwise 3 years |
| Color | Black Powder Coat |
| Mounting Kit Included | Yes (Vertical Mounting Bracket) |
| Shipping Weight | 22 lbs |
| Dimensions (HxWxD) | 66.3" x 3.8" x 3" |
| Environment | Max Operating Temp: 140°F (60°C), RoHS Compliant |
| Country of Origin | United States |
